In modern electrical systems, the challenge of safely and efficiently connecting dissimilar conductors—such as copper and aluminum—has become increasingly common. The need to combine these two metals arises from a balance of cost, weight, and conductivity considerations. However, copper and aluminum have distinct physical and chemical properties, making their direct connection prone to issues such as galvanic corrosion, increased resistance, and mechanical instability.
This is where bimetal connecting pipes come into play, providing a reliable solution for joining copper and aluminum conductors securely while maintaining electrical performance and mechanical durability. This blog will explore best practices from design to installation when using bimetal connecting pipes in mixed conductor systems, helping engineers, contractors, and electricians optimize their projects for safety and longevity.

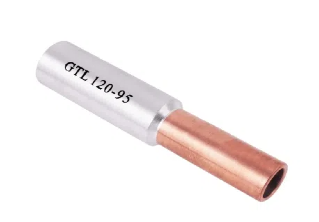

A bimetal connecting pipe is a specialized connector designed to join copper and aluminum conductors. It consists of two different metals—typically copper on one end and aluminum on the other—joined together through advanced metallurgical processes like explosive welding or friction welding.
This bimetallic structure enables the connector to leverage the excellent conductivity and corrosion resistance of copper on the copper conductor side, while maintaining compatibility with aluminum on the other end. The bimetallic interface significantly reduces the risks associated with direct copper-to-aluminum connections, such as galvanic corrosion and thermal expansion mismatch.
In electrical installations involving both copper and aluminum conductors, special attention must be paid to the connection methods due to the distinct physical and chemical characteristics of these metals. Directly connecting copper to aluminum without proper precautions can lead to serious issues affecting safety, efficiency, and durability. This is where bimetal connecting pipes become essential, addressing these challenges effectively through their innovative design and material composition. Here’s a closer look at the key reasons why bimetal connecting pipes are indispensable in mixed conductor systems:
Galvanic corrosion is one of the most significant challenges when joining dissimilar metals such as copper and aluminum. It occurs when two different metals are in electrical contact within a corrosive environment that contains an electrolyte, such as moisture, saltwater, or industrial pollutants. In such cases, an electrochemical reaction accelerates the corrosion of the more anodic metal—in this case, aluminum—leading to the deterioration of the connection.
Direct copper-to-aluminum connections are especially vulnerable because the electrochemical potential difference between these metals is quite high. This not only weakens the mechanical bond over time but also causes increased electrical resistance, resulting in energy losses and potential overheating.
Bimetal connecting pipes solve this problem by physically isolating copper and aluminum conductors within a single, engineered component. The pipe is constructed so that each metal end contacts only its compatible conductor, and the interface between copper and aluminum within the pipe is metallurgically bonded using processes such as explosive or friction welding. This barrier prevents the formation of a galvanic cell, significantly reducing corrosion risks and prolonging the lifespan of the connection.
Maintaining efficient electrical conductivity at connection points is critical for any power distribution system. Copper is prized for its excellent electrical conductivity, but when paired directly with aluminum, the joint often exhibits higher resistance due to oxidation and incompatible contact surfaces.
The design of bimetal connecting pipes optimizes conductivity by providing a copper contact surface for copper conductors and an aluminum surface for aluminum cables. This ensures a homogeneous metal-to-metal contact on each end of the connector, minimizing electrical resistance at the joint. By doing so, these connectors help maintain the system’s overall electrical efficiency, reduce voltage drops, and lower heat generation that typically occurs at poor connections.
Copper and aluminum not only differ in electrical properties but also in their mechanical behavior, particularly their coefficients of thermal expansion. When subjected to temperature fluctuations, aluminum expands and contracts at a different rate than copper. If these two metals are joined directly without a suitable interface, the differential expansion can cause the connection to loosen, crack, or even fracture over repeated thermal cycles.
Bimetal connecting pipes are engineered to accommodate these mechanical differences. The metallurgical bond between copper and aluminum within the pipe is designed to absorb and distribute thermal stresses evenly, maintaining a stable mechanical joint despite environmental changes. This ensures that the connection remains tight and secure over time, preventing failures caused by vibration, mechanical stress, or thermal cycling.
Start by specifying the exact types of copper and aluminum conductors used in your system. This ensures compatibility with the bimetal connecting pipe’s materials and plating. High-purity copper and aluminum alloys often require specific bimetal formulations.
Select bimetal connecting pipes that match the conductor sizes to maintain electrical and mechanical integrity. Oversized or undersized connectors can lead to poor contact, higher resistance, or mechanical failure.
Ensure your design aligns with relevant electrical and safety standards such as IEC ISO CE certifications. Using certified bimetal connecting pipes helps guarantee performance and regulatory compliance.
Account for environmental conditions—humidity, temperature, exposure to chemicals—that might impact corrosion and mechanical stability. Choose connectors with appropriate coatings or platings, such as tin or nickel, for enhanced protection.
Clean the copper and aluminum conductor ends thoroughly to remove oxidation, dirt, or grease. This step is crucial to achieving a solid, low-resistance connection.
Use the recommended tooling and techniques for crimping or bolting the bimetal connecting pipe. Avoid under-crimping or over-tightening, which can damage the connector or conductor.
Do not combine different joining methods (e.g., crimping plus soldering) on the same joint. Stick to the manufacturer’s installation instructions to maintain connection integrity.
After installation, visually inspect connections for proper compression, alignment, and absence of gaps or cracks. Perform electrical tests such as resistance measurement or infrared thermography to verify joint quality.
Regular Inspection: Schedule periodic checks for signs of corrosion, overheating, or mechanical wear.
Environmental Protection: Use protective coatings or enclosures in harsh environments to extend service life.
Record Keeping: Maintain detailed documentation of installation dates, materials, and inspection results for future reference.
Bimetal connecting pipes offer a practical and effective way to overcome the challenges of joining copper and aluminum conductors in mixed conductor systems. From design through installation and maintenance, following best practices ensures secure, corrosion-resistant, and electrically efficient connections that stand the test of time.
