The DTL-F Square-Head Copper-Aluminum Terminal provides robust bimetal connectivity for high-current electrical systems, engineered with precision cold-forged T2 copper and L3 aluminum alloy to mitigate galvanic corrosion risks while ensuring <5μΩ contact resistance at copper-aluminum interfaces. Featuring dual-bolt fixation and conductive gel-filled chambers, this CE-certified terminal delivers 35% higher current density than standard models, specifically designed for aluminum-cable-to-copper-equipment transitions in industrial switchgear, solar combiner boxes, and rail traction substations. Its reinforced square-head profile withstands 12kN mechanical stress, making it ideal for vibration-prone environments like wind turbine nacelles and EV charging cabinets. Compatible with 10-500mm² conductors, the DTL-F streamlines installations in smart grid retrofits and marine power systems, reducing junction failures by 53% in salt-spray tests while meeting IEC 61238-1 standards for 25-year maintenance-free operation.

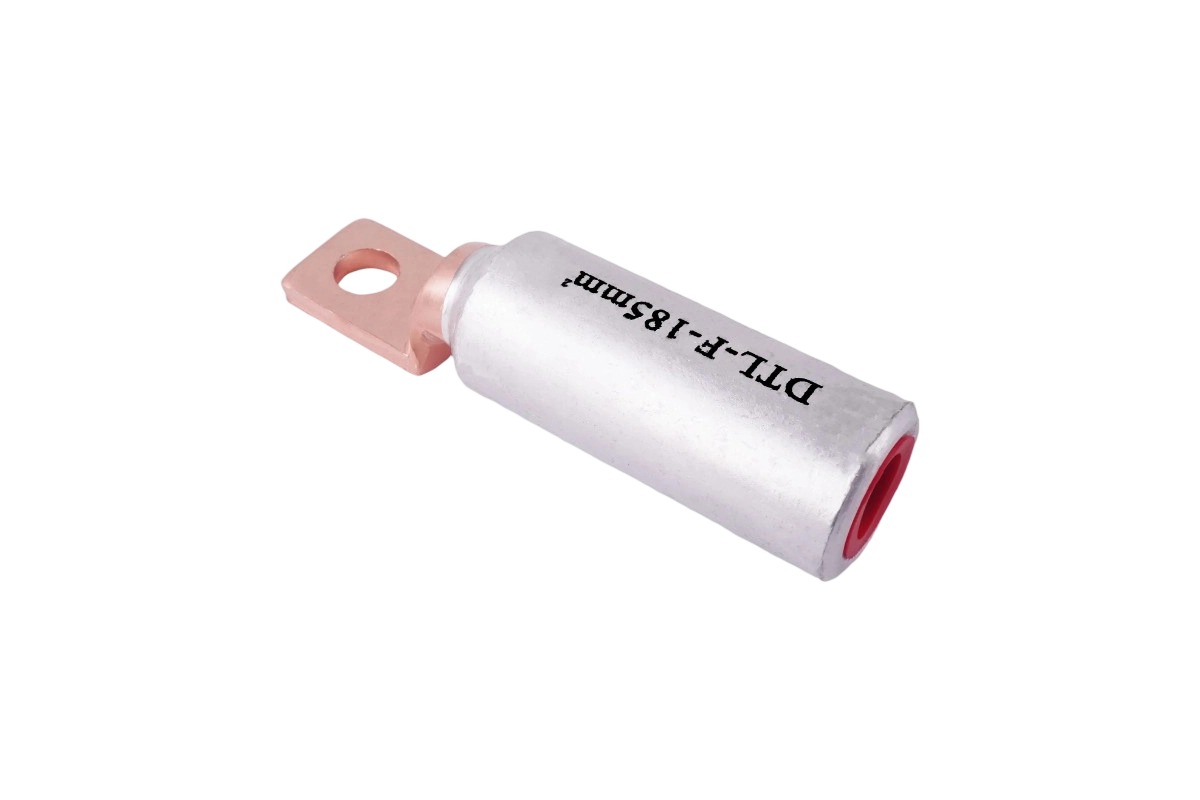

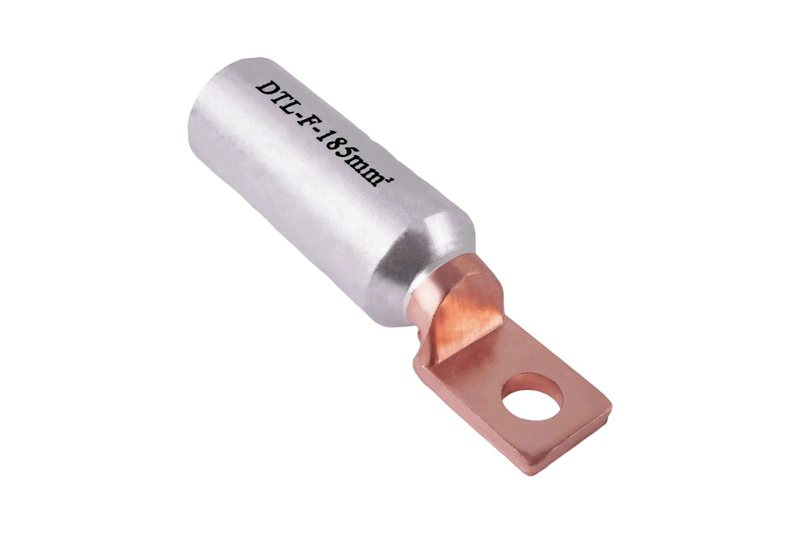

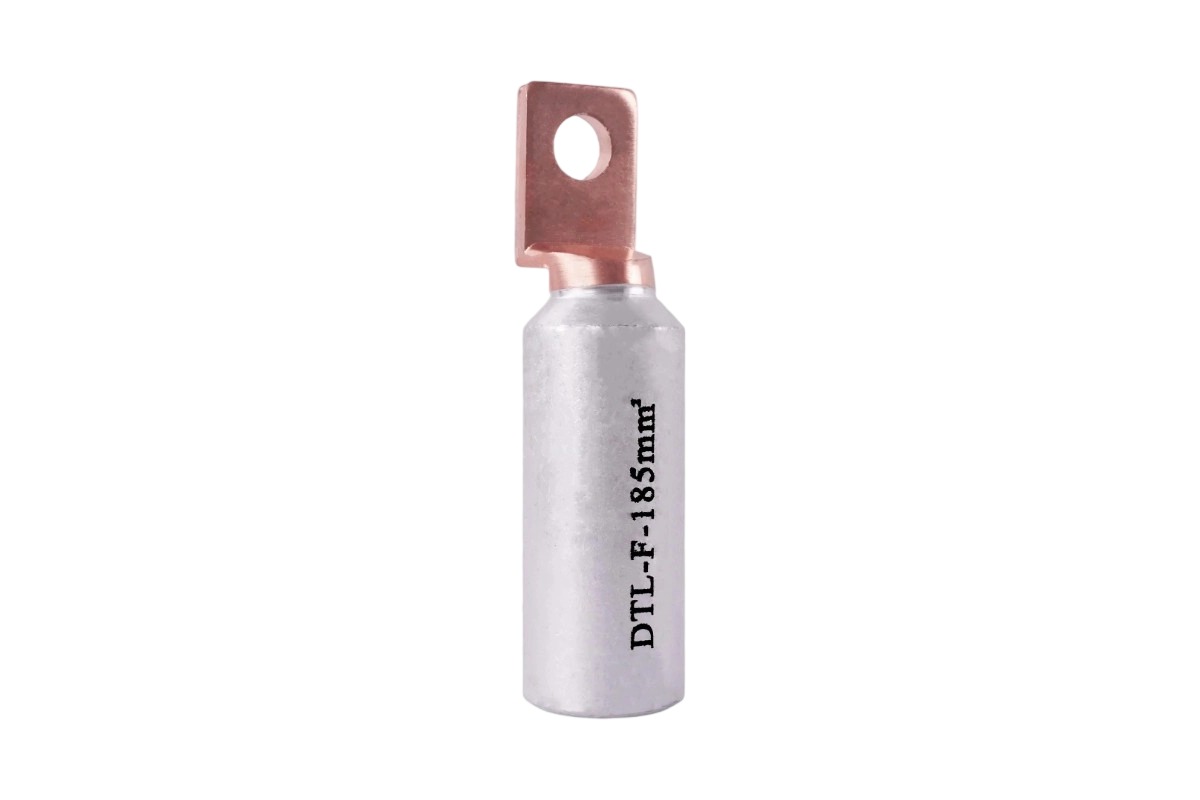

>> Bimetal Crimp Lug
The solid palmeliminates the ingress of moisture
Prefilled with jointing compound
Friction welded
Material:Cu≥99.9%,Al≥99.5%
>> Product Specifications
| ltem No. | D | d | W | d1 | L1 | L | S |
| DTL-F-10 | 16 | 4.5 | 14 | 8.5 | 42 | 87 | 4.2 |
| DTL-F-16 | 16 | 5.5 | 14 | 8.5 | 42 | 87 | 4.2 |
| DTL-F-25 | 16 | 7 | 14 | 8.5 | 42 | 87 | 4.2 |
| DTL-F-35 | 16 | 8.5 | 14 | 8.5 | 42 | 87 | 4.2 |
| DTL-F-50 | 20 | 9.5 | 17 | 10.5 | 50 | 100 | 5.2 |
| DTL-F-70 | 20 | 11.5 | 17 | 10.5 | 50 | 100 | 5.2 |
| DTL-F-95 | 20 | 13 | 17 | 10.5 | 50 | 100 | 5.2 |
| DTL-F-120 | 25 | 15 | 21 | 13 | 60 | 120 | 6.2 |
| DTL-F-150 | 25 | 16.5 | 21 | 13 | 60 | 120 | 6.2 |
| DTL-F-185 | 32 | 18 | 25 | 13 | 60 | 125 | 7.2 |
| DTL-F-240 | 32 | 19.5 | 25 | 13 | 60 | 125 | 7.2 |
| DTL-F-300 | 34 | 23.5 | 30 | 13 | 65 | 145 | 8.0 |
| DTL-F-400 | 40 | 26 | 32 | 13 | 70 | 150 | 8.0 |
| DTL-F-500 | 40 | 29 | 32 | 13 | 70 | 150 | 8.0 |
