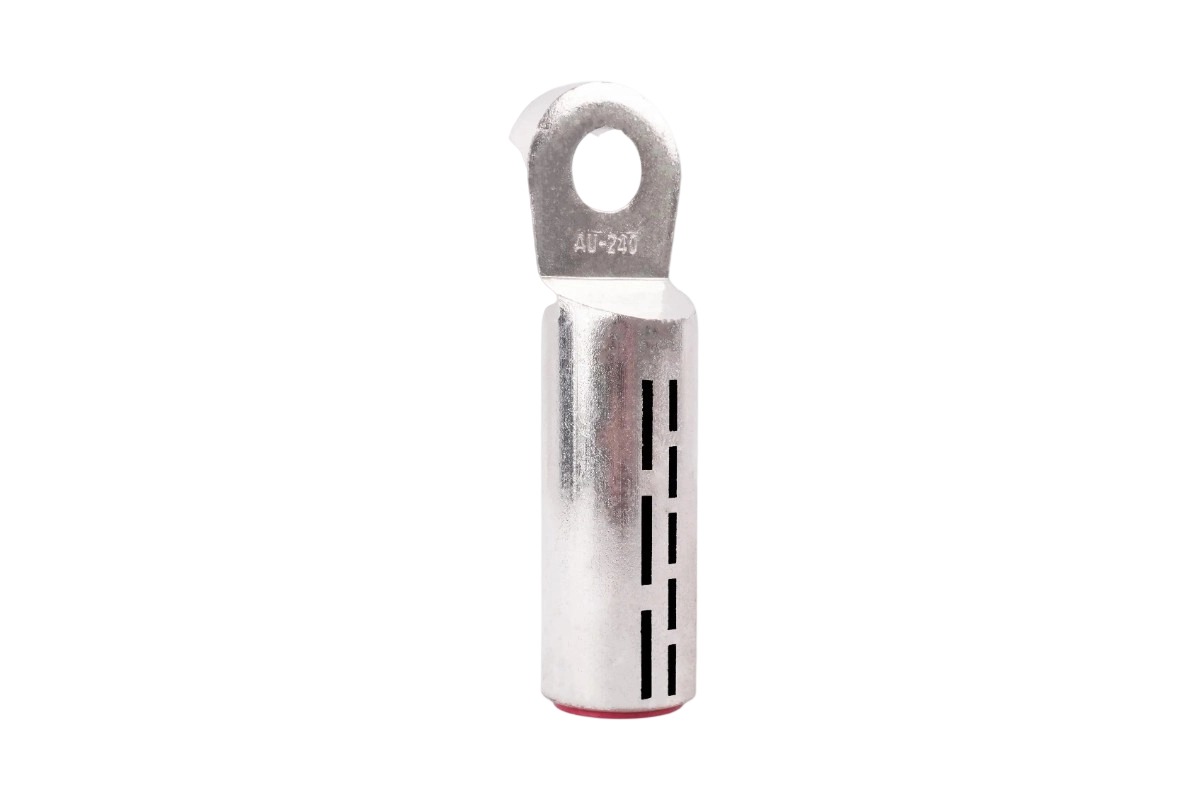

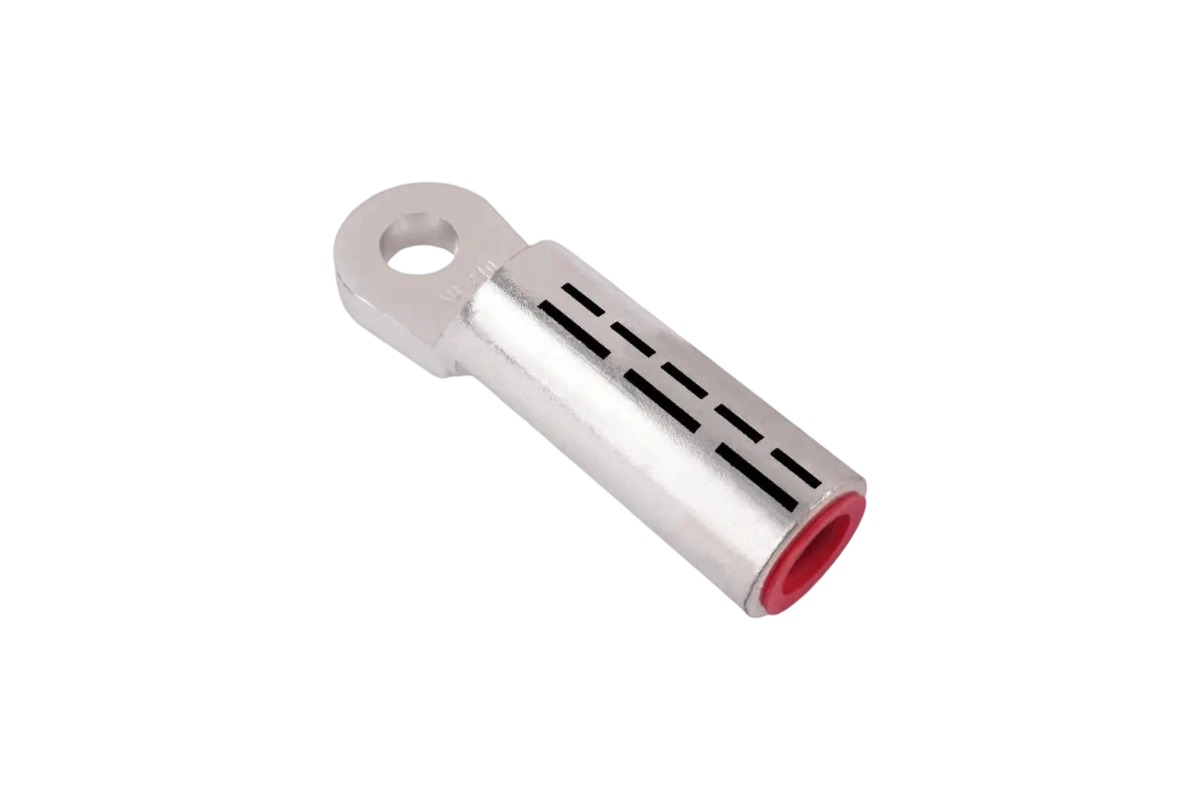

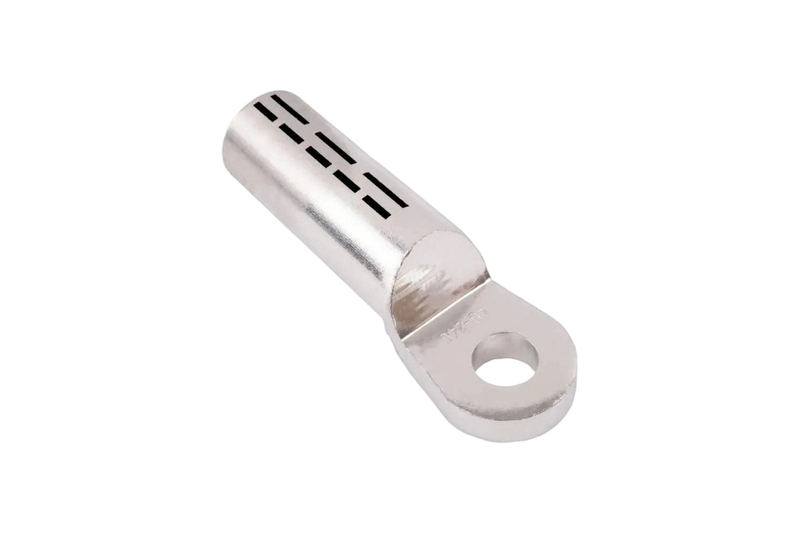

The AU Aluminum Terminal (DIN46329) ensures precision-engineered conductivity for low-voltage systems, crafted from ≥99.5% pure aluminum with electroplated tin surfaces to prevent oxidation and maintain <15μΩ contact resistance. Featuring laser-etched crimp position markers and a solid-palm design, it eliminates moisture ingress in humid environments while pre-filled conductive compounds within sealed chambers enhance interface stability (-30°C~85°C). Optimized for tool-free installations via DIN-compliant compression zones, this terminal simplifies aluminum-to-aluminum transitions in smart meter cabinets, indoor lighting control panels, and low-voltage distribution boards. Its corrosion-resistant construction and visual alignment guides reduce installation errors by 40%, ideal for modular building electrical systems and IoT device junction boxes requiring UL-recognized, maintenance-free connections under IEC 61238-1 standards.
>> Aluminium Crimp Lug to Din
Clear markings on barrel to indicate correct crimping location.
In accordance with DIN46329
The solid palmeliminates the ingressof moisture
Prefilled with jointing compound and sealed with caps
Material:AL≥99.5%
Surface:electro tin plated
Application:low voltage
>> Product Specifications

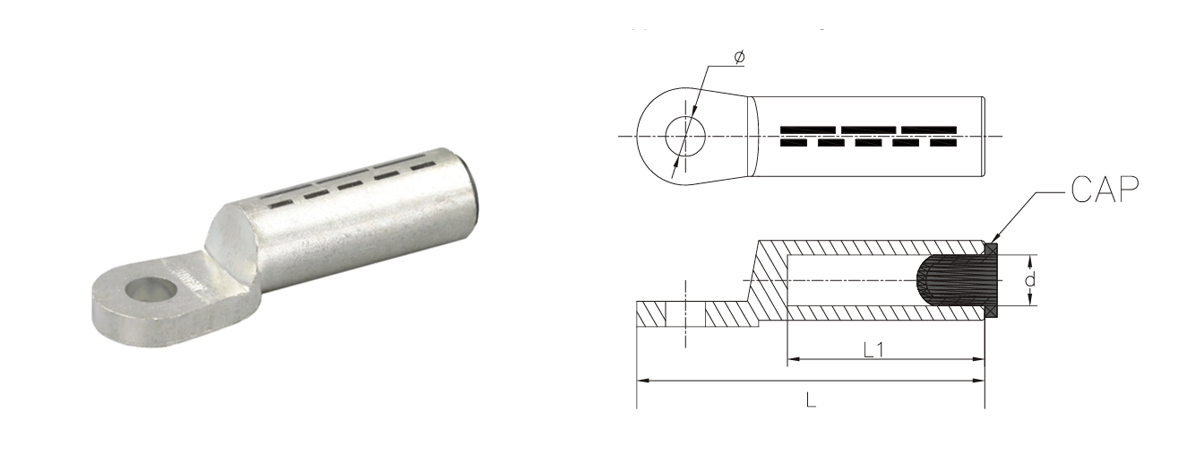

| ltem No. | Φ±0.5 | d±0.3 | L±2 | L1±2 | Package (pcs) | Gross weight (kg) |
| AU-16 | 8.4 | 5.8 | 60.0 | 29 | 1600 | 21.5 |
| AU-25 | 10.5 | 6.8 | 62.5 | 29 | 1200 | 20.0 |
| AU-35 | 10.5 | 8.0 | 77.0 | 41 | 1200 | 25.0 |
| AU-50 | 10.5 | 9.8 | 78.5 | 42 | 800 | 23.0 |
| AU-70 | 10.5 | 11.2 | 85.0 | 51 | 600 | 21.5 |
| AU-95 | 13.0 | 13.2 | 90.0 | 55 | 400 | 22.0 |
| AU-120 | 13.0 | 14.7 | 96.0 | 55 | 400 | 25.0 |
| AU-150 | 13.0 | 16.3 | 106 | 59 | 300 | 24.0 |
| AU-185 | 13.0 | 18.3 | 108 | 59 | 200 | 21.0 |
| AU-240 | 17.0 | 21.0 | 124 | 69 | 120 | 18.5 |
| AU-300 | 17.0 | 23.3 | 125 | 69 | 120 | 21.0 |
