The SC(JGK) Copper Terminal redefines low-voltage connectivity with precision-forged T2 copper (≥99.9% purity) and electroplated tin surfaces, integrating a patented observation window for real-time conductor alignment verification during installations. Designed for 6-630mm² cables, its cold-pressed tubular structure ensures <15μΩ resistance across -55°C~150°C environments, ideal for smart meter cabinets and data center power distribution where rapid, tool-free connections are critical. The hermetic observation window and pre-lubricated barrel eliminate cable stripping needs while preventing moisture ingress in HVAC control panels and indoor industrial switchgear. Compliant with EN50483-4 and NFC33-021 standards, this maintenance-free solution enhances corrosion resistance in coastal microgrids and IoT-enabled building automation systems through anti-oxidation coatings, achieving 25-year service life with 40% faster deployment than traditional terminals.

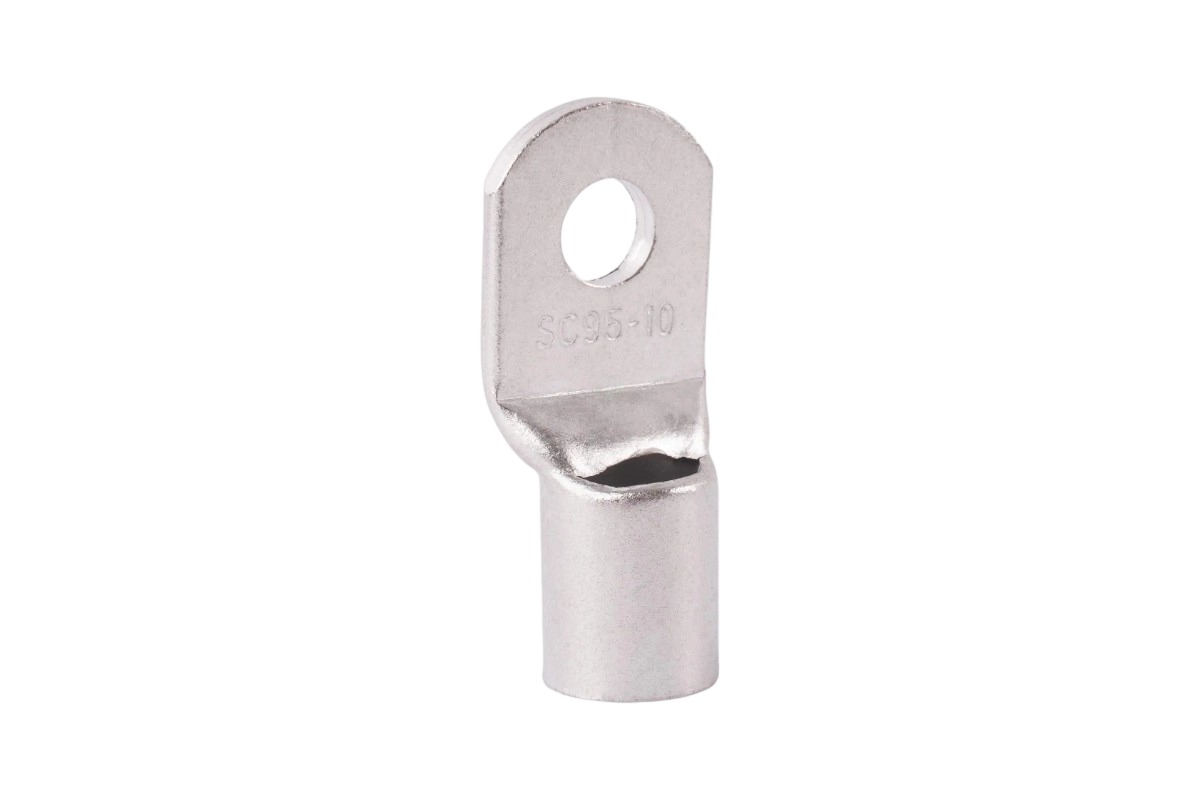

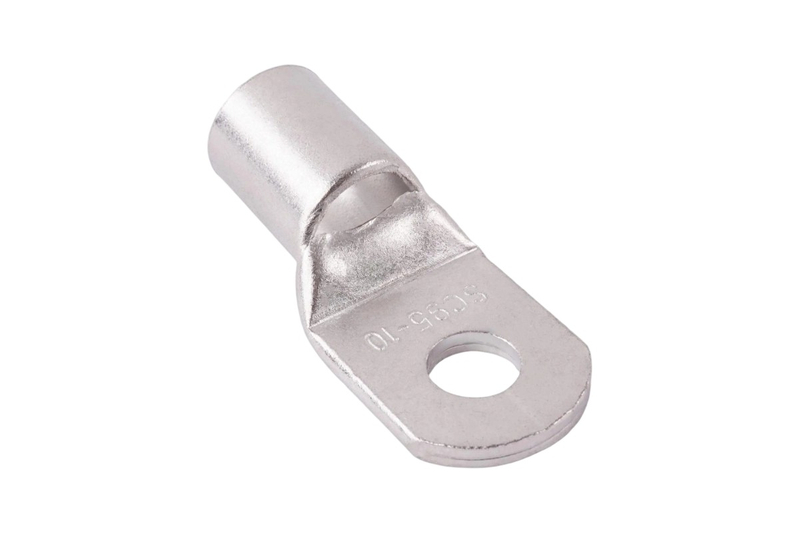

>> Copper Crimp Lug

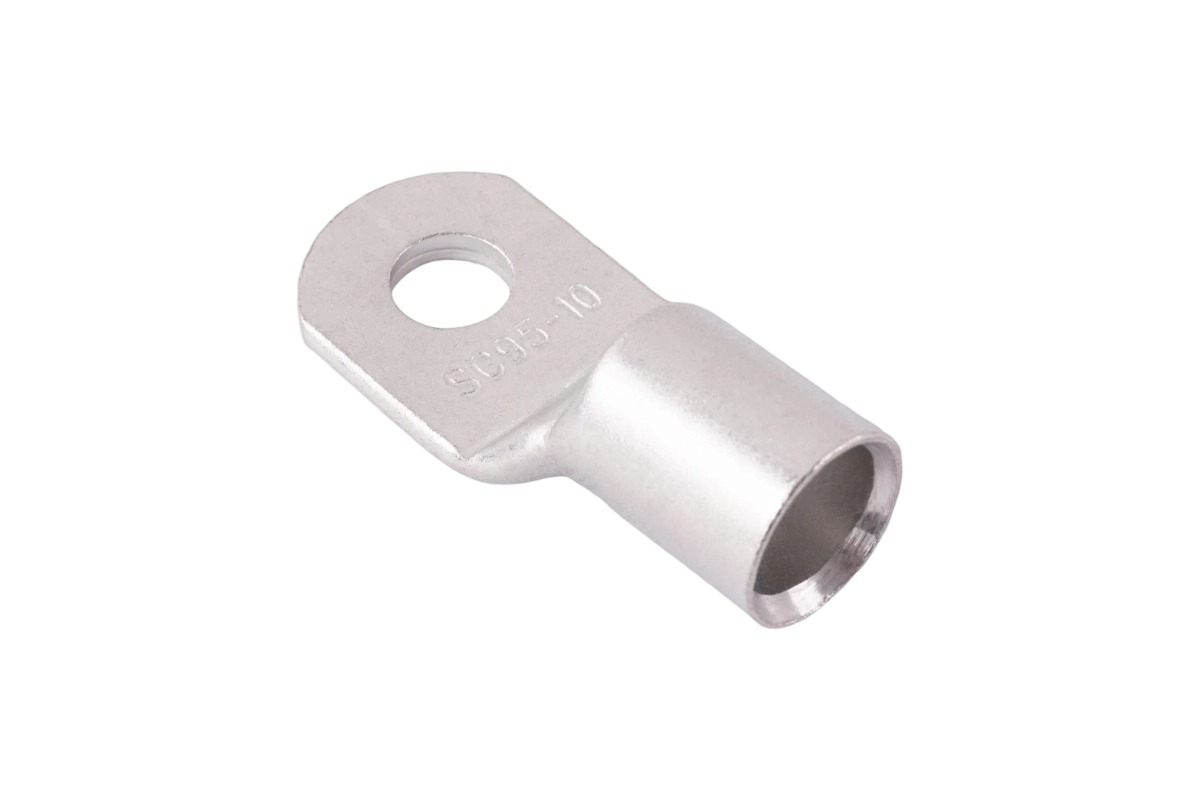

Have a viewingwindow to checkthe location ofthe conductor
Material:CU≥99.9%
Surface:electro tinplated
Application:low voltage,indoor
>> Product Specifications

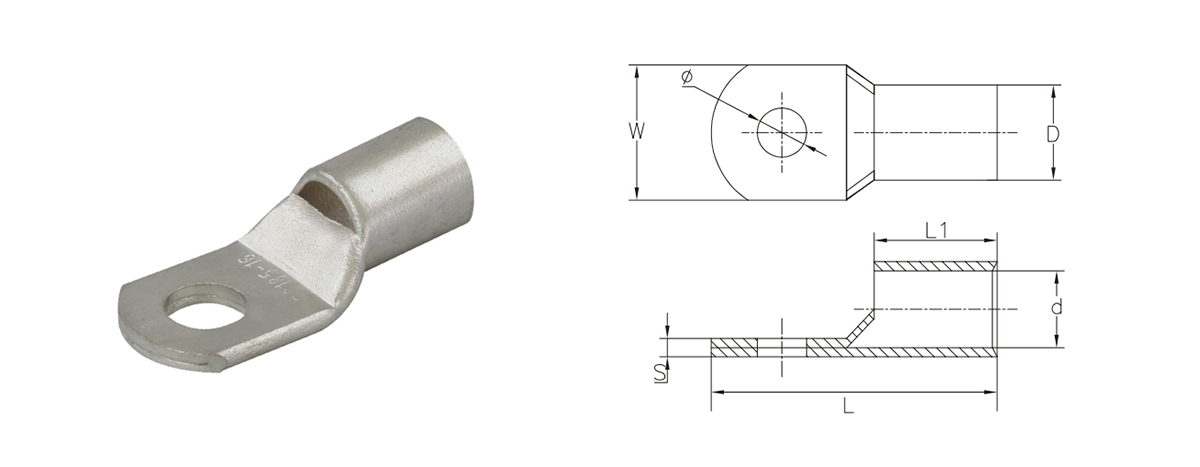

| ltem No. | φ±0.5 | D±0.5 | d±0.5 | L±2 | L1±2 | S±0.2 | W±1.5 | Package (pcs) | Gross weight (kg) |
| SC(JGK)-6 | φ6.5 | 6.0 | 4.8 | 24.5 | 8.5 | 1.2 | 9.0 | 9000 | 18.5 |
| SC(JGK)-6 | φ8.5 | 6.0 | 4.8 | 24.5 | 8.5 | 0.8 | 11.8 | 9000 | 19.0 |
| SC(JGK)-10 | φ6.5 | 6.6 | 5.2 | 27.0 | 9.0 | 1.2 | 9.7 | 9000 | 21.0 |
| SC(JGK)-10 | φ8.5 | 6.6 | 5.2 | 27.0 | 9.0 | 0.9 | 11.6 | 9000 | 22.0 |
| SC(JGK)-16 | φ6.5,φ8.5 | 8.0 | 6.1 | 31.0 | 11.0 | 1.9 | 11.6 | 4800 | 23.0 |
| SC(JGK)-16 | φ10.5 | 8.0 | 6.1 | 31.0 | 11.0 | 1.5 | 14.0 | 4800 | 23.5 |
| SC(JGK)-25 | φ6.5,φ8.5,φ10.5 | 9.0 | 6.8 | 33.0 | 13.0 | 2.0 | 13.0 | 3600 | 24.0 |
| SC(JGK)-35 | φ6.5,φ8.5,φ10.5 | 10.5 | 8.5 | 38.0 | 14.0 | 2.0 | 15.5 | 2400 | 23.0 |
| SC(JGK)-35 | φ12.5 | 11.0 | 8.8 | 38.0 | 14.0 | 2.0 | 16.5 | 2400 | 23.5 |
| SC(JGK)-50 | φ8.5,φ10.5,φ12.5 | 12.5 | 10.1 | 45.0 | 17.0 | 2.4 | 18.3 | 1200 | 20.0 |
| SC(JGK)-70 | φ8.5,φ10.5,φ12.5 | 14.5 | 12.0 | 49.0 | 18.0 | 2.6 | 21.4 | 600 | 14.0 |
| SC(JGK)-95 | φ8.5,φ10.5,φ12.5,φ14.5 | 17.0 | 13.8 | 56.0 | 20.5 | 3.0 | 25.0 | 600 | 22.0 |
| SC(JGK)-120 | φ10.5,φ12.5 | 19.0 | 15.5 | 61.0 | 24.0 | 3.5 | 28.0 | 300 | 17.0 |
| SC(JGK)-150 | φ10.5,φ12.5,φ14.5,Φ16.5 | 21.0 | 16.8 | 68.0 | 26.0 | 4.0 | 31.0 | 300 | 21.5 |
| SC(JGK)-185 | φ12.5,φ14.5,Φ16.5 | 24.0 | 18.9 | 76.0 | 28.0 | 5.0 | 34.7 | 240 | 26.0 |
| SC(JGK)-240 | φ12.5,φ14.5,φ16.5 | 26.9 | 21.5 | 89.0 | 33.0 | 5.5 | 39.0 | 180 | 29.0 |
| SC(JGK)-300 | φ16.5 | 30.0 | 23.9 | 98.0 | 38.0 | 6.0 | 43.3 | 120 | 26.5 |
| SC(JGK)-400 | φ16.5 | 31.9 | 25.7 | 110 | 41.0 | 6.0 | 47.0 | 96 | 30.0 |
| SC(JGK)-500 | φ20.5 | 38.0 | 30.0 | 116 | 42.0 | 8.0 | 55.0 | 72 | 32.0 |
| SC(JGK)-630 | φ20.5 | 45.0 | 36.3 | 135 | 53.5 | 8.6 | 65.0 | 36 | 25.0 |
