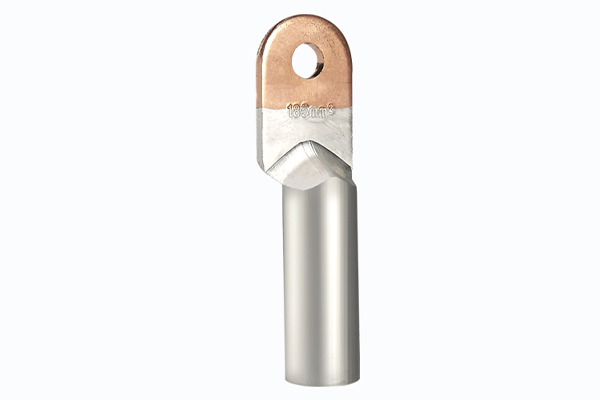

The DTL-1 Copper-Aluminum Terminal provides cost-effective bimetal connectivity for standard electrical installations, utilizing friction-welded T2 copper and L3 aluminum to minimize electrochemical corrosion risks while maintaining reliable conductivity in dry or controlled environments. Designed for copper-to-aluminum transitions in low voltage systems (10kV), this GB/T-compliant terminal features a semi-circular crown design and dual-hole variants for flexible cable termination in distribution cabinets, residential switchgear, and light industrial machinery. Its simplified structure omits conductive gel chambers and dust-proof seals, prioritizing affordability for applications like indoor transformer connections and small-scale power distribution retrofits. While not recommended for high-vibration environments or aluminum alloy cables due to reduced wall thickness compared to European-standard models, it remains a practical solution for maintenance-monitored systems requiring IEC 61238-1-certified performance at 25% lower lifecycle costs than premium alternatives. Ideal for urban grid upgrades and commercial facility expansions where humidity and temperature fluctuations remain moderate.

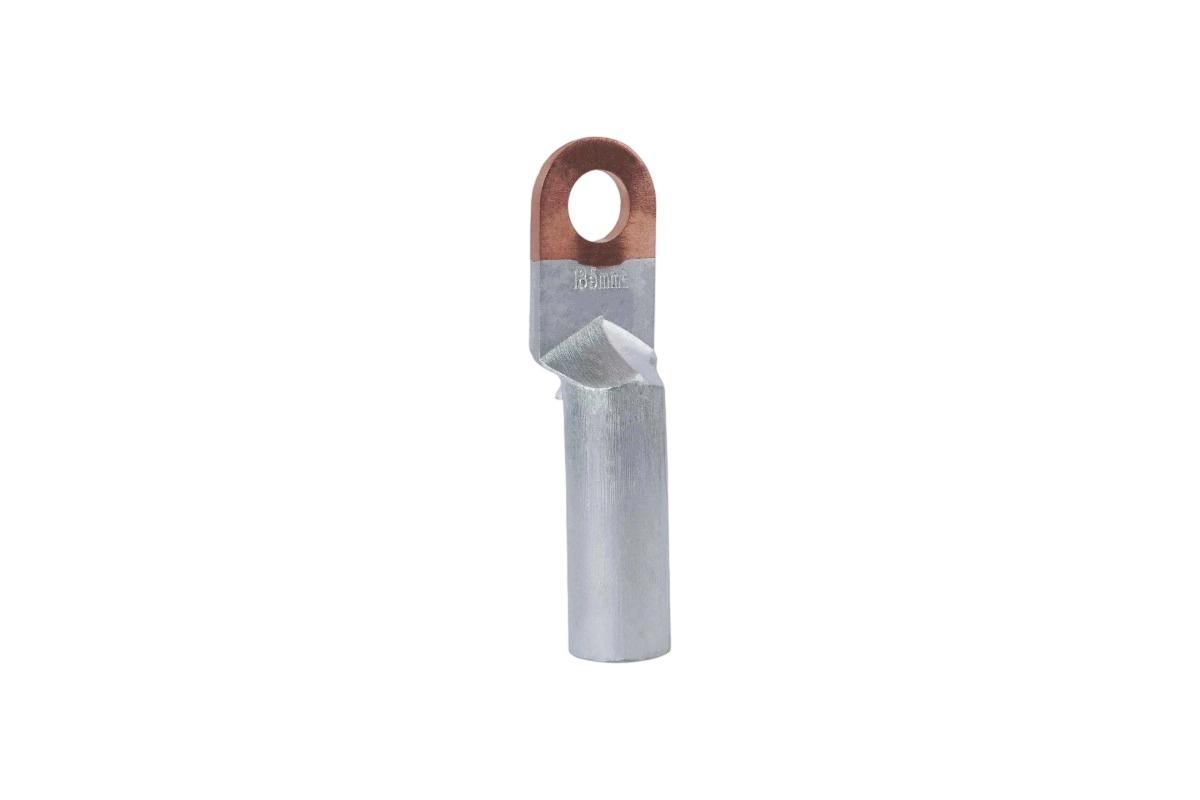

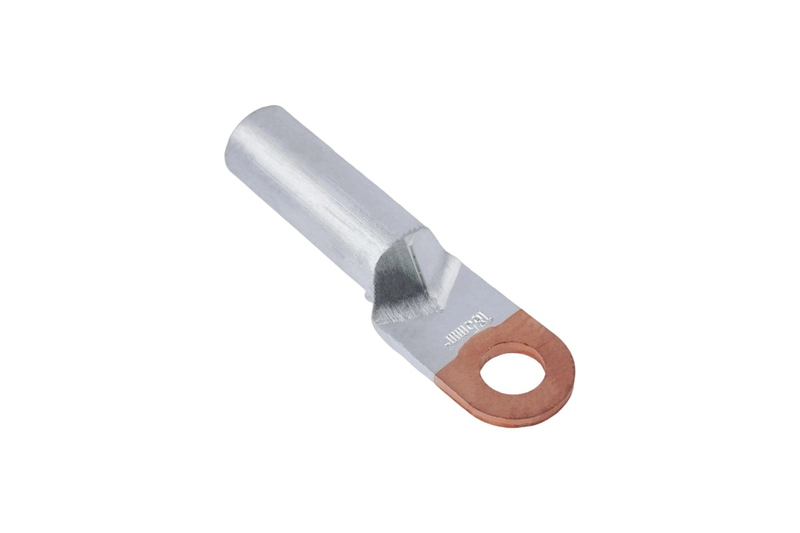

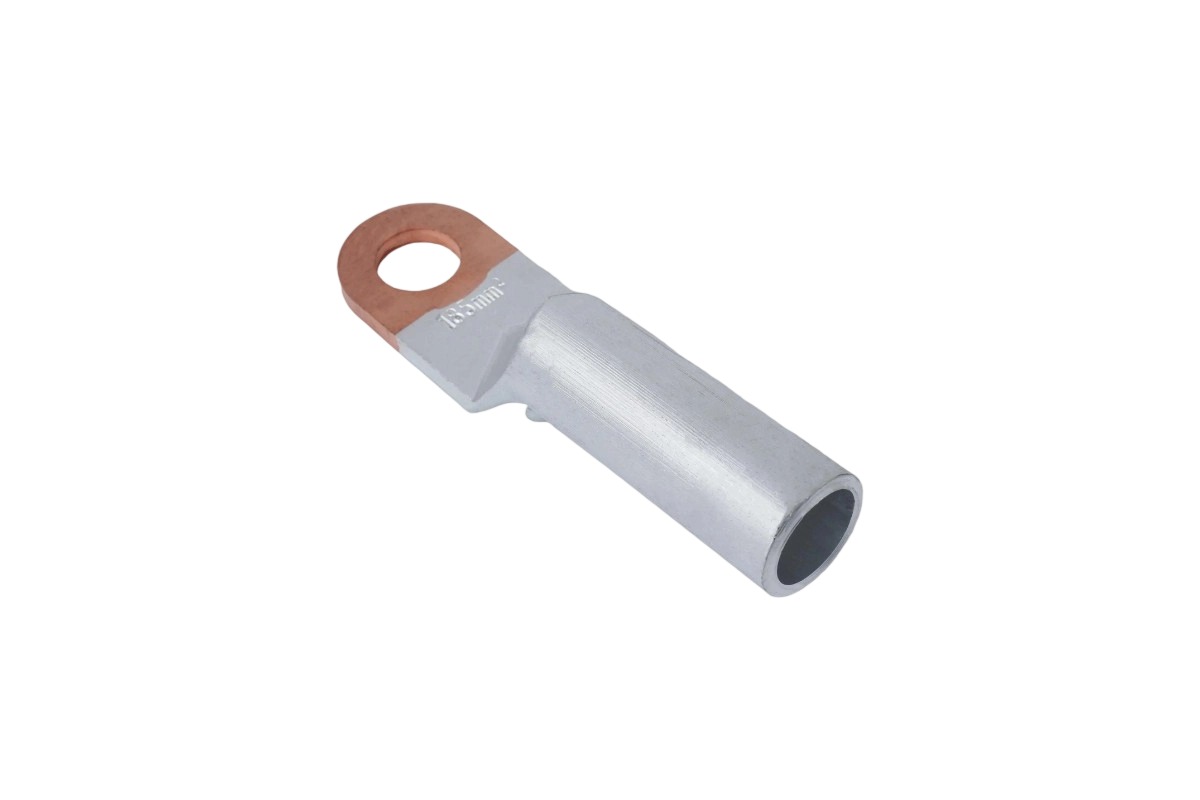

>> Bimetal Crimp Lug
Suitable for aluminumto copper terminations
Aluminium barrel isfilled by neutralgrease and coveredby cap

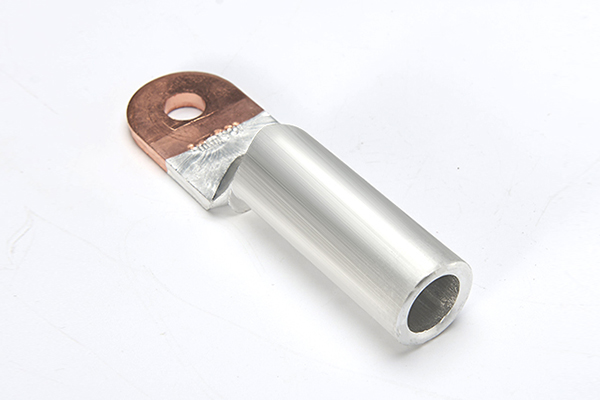

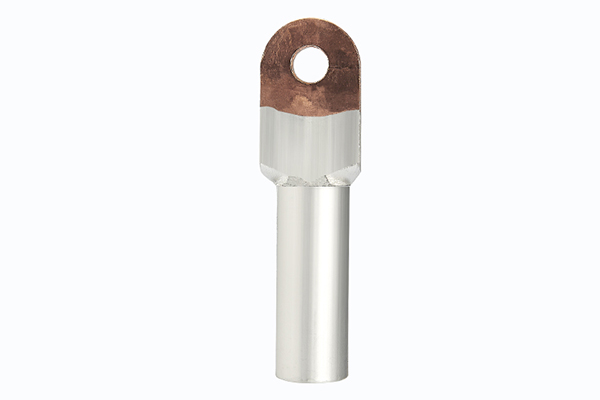

Friction welded
Material:CU≥99.9%,AL≥99.5%
>> Product Specifications

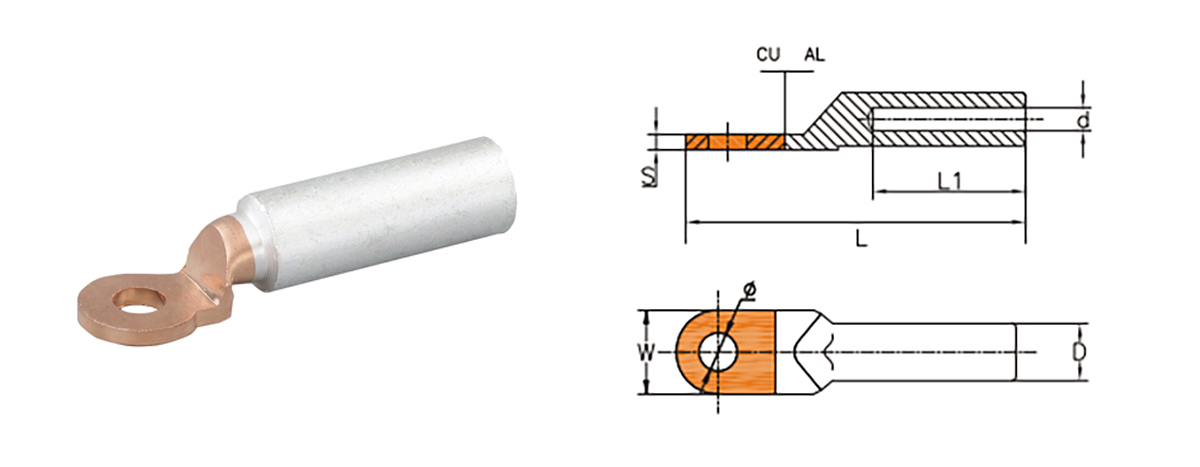

| ltem No. | φ±0.3 | D±0.2 | d±0.2 | L±2 | L1±2 | W±0.2 | S±0.2 | Package (pcs) | Gross weight (kg) |
| DTL-1-10 | 8.5 | 10 | 5.2 | 65 | 30 | 16 | 2.2 | 1440 | 17.0 |
| DTL-1-16 | 8.5 | 11 | 6.1 | 70 | 31 | 16 | 2.2 | 1200 | 16.5 |
| DTL-1-25 | 8.5 | 12 | 7.1 | 75 | 35 | 18 | 2.8 | 960 | 17.5 |
| DTL-1-35 | 10.5 | 14 | 8.5 | 85 | 38 | 20.5 | 3.0 | 720 | 16.0 |
| DTL-1-50 | 10.5 | 16 | 9.8 | 90 | 42 | 23 | 3.4 | 540 | 21.0 |
| DTL-1-70 | 12.5 | 18 | 11.5 | 102 | 47 | 26 | 3.6 | 360 | 18.0 |
| DTL-1-95 | 12.5 | 21 | 13.5 | 112 | 51 | 28 | 4.2 | 240 | 16.5 |
| DTL-1-120 | 14.5 | 23 | 15.0 | 120 | 53 | 30 | 4.8 | 180 | 16.5 |
| DTL-1-150 | 14.5 | 25 | 17.0 | 126 | 56 | 34 | 5.3 | 180 | 20.5 |
| DTL-1-185 | 16.5 | 27 | 18.6 | 133 | 58 | 37 | 5.8 | 120 | 17.5 |
| DTL-1-240 | 16.5 | 30 | 21.5 | 140 | 60 | 40 | 6.0 | 96 | 21.0 |
| DTL-1-300 | 18.0 | 34 | 23.5 | 165 | 66 | 45 | 7.0 | 72 | 18.0 |
| DTL-1-400 | 21.0 | 38 | 26.5 | 178 | 76 | 50 | 54 | 19.0 | |
| DTL-1-500 | 21.0 | 45 | 29.5 | 200 | 85 | 55 | 48 | 20.0 | |
| DTL-1-630 | 50 | 32.5 | 225 | 85 | 60 | 48 | 21.0 | ||
| DTL-1-800 | 60 | 37.0 | 270 | 90 | 100 | 36 | 22.0 |
