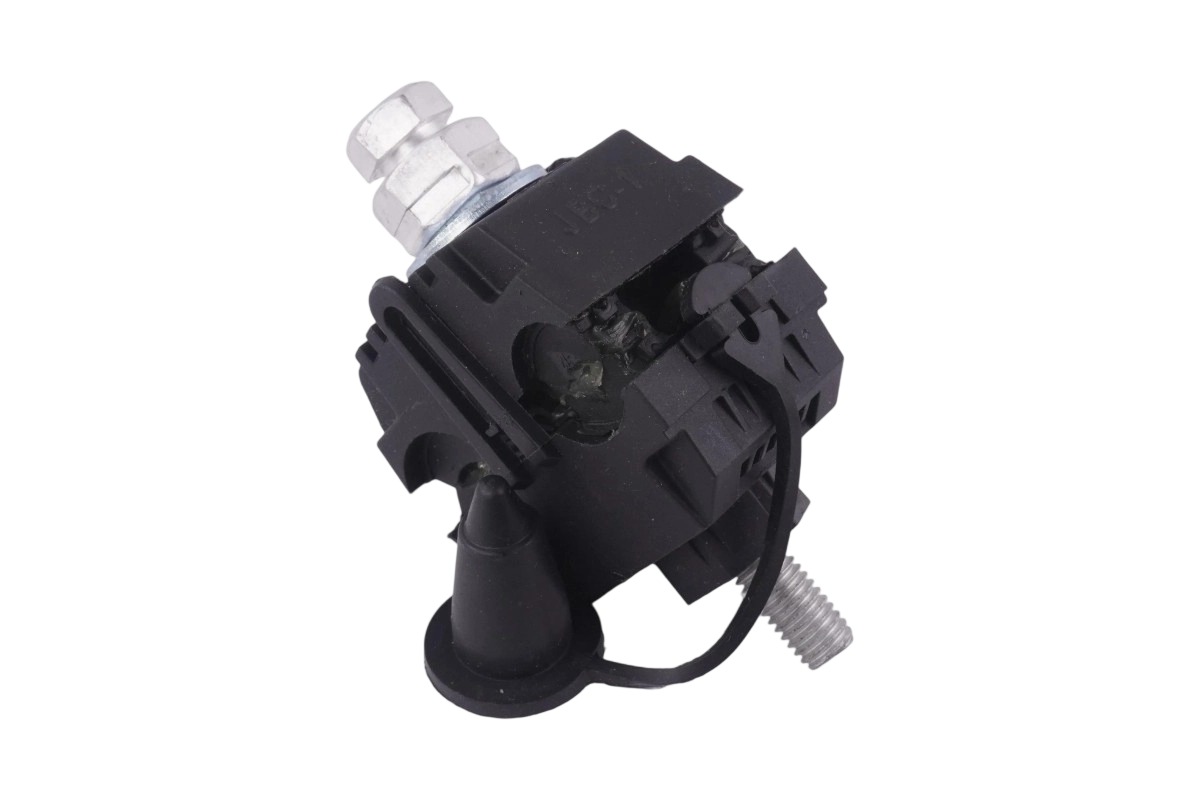

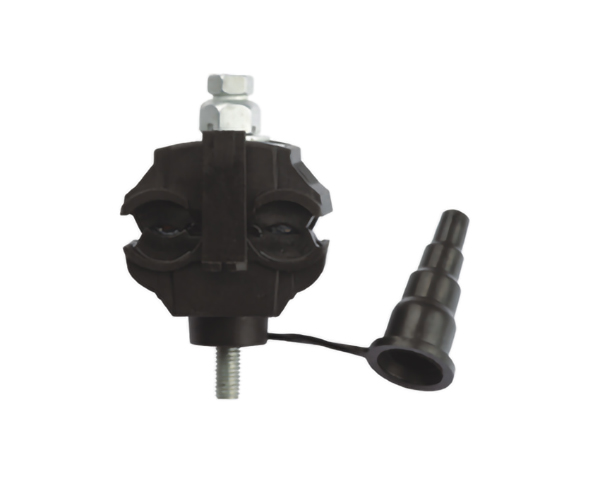

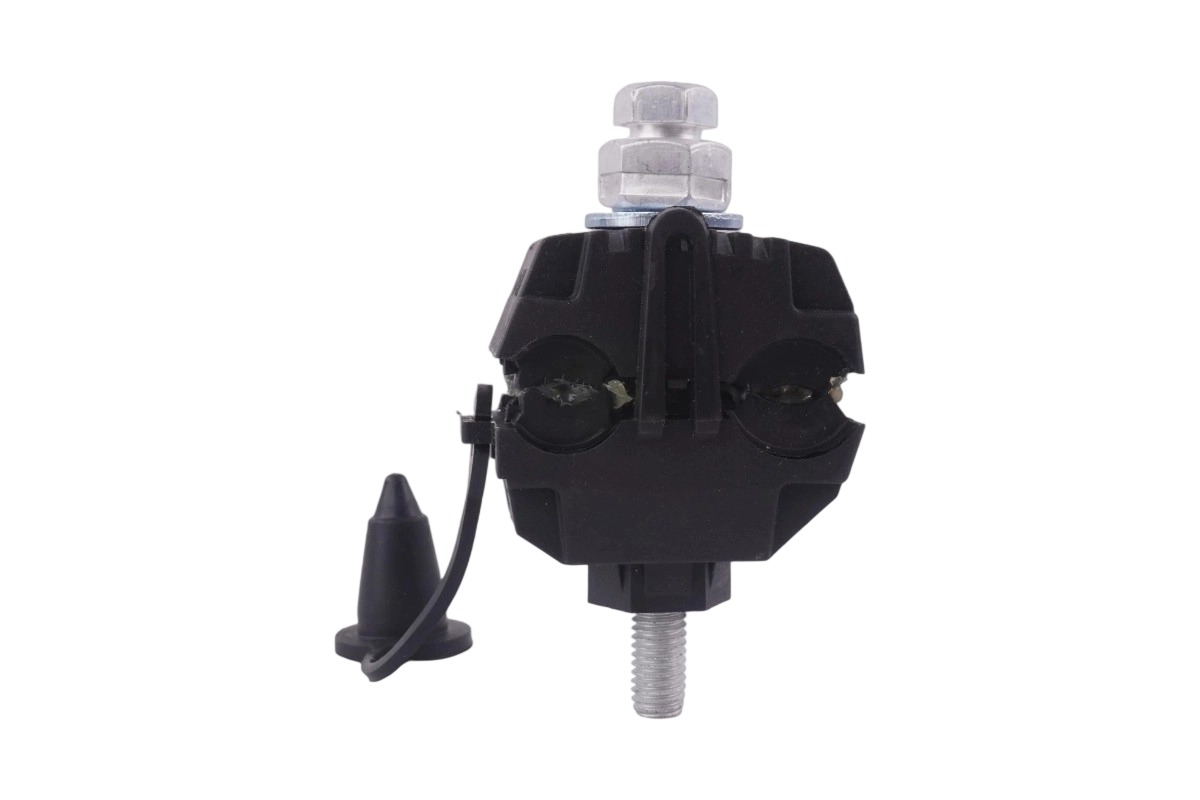

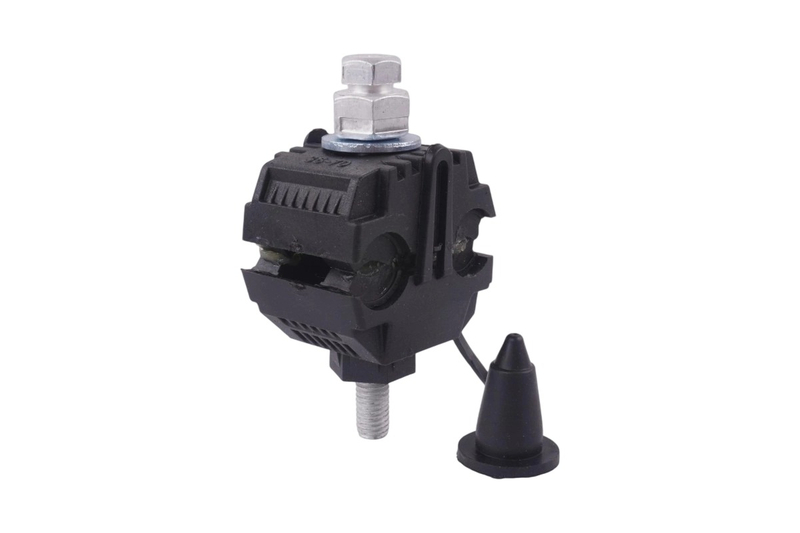

>> Insulation Piercing Clamp
The JBC insulation piercing connectors are applicable for all types of LV-ABC conductors as well as connections in service line system, building electrical system and street lighting system.
Designed for all weather applications and easy to install.
Connections can be made live in minutes and suitable for aluminum or Copper, the body materials are UV-resistant.
The self-seam frameis wet proof, water proof, and anti-corrosive,which can prolong the using life of insulated lead and connector.
Had passed 6KV test under water for 1 Min.
Standard:EN50483-4,NFC 33-020,NFC 33-004
>> Product Specifications
| Item No. | Main wire section | Branch wire section | Bolt | Package (pcs) | Gross weight (kg) |
| JBC-0 | 25-70 | 6-35 | 1 | 300 | 23.5 |
| JBC-1 | 35-70 | 6-35 | 1 | 300 | 35 |
| JBC-2 | 35-150 | 35-150 | 1 | 150 | 27 |
| JBC-3 | 50-240 | 50-150 | 2 | 50 | 21 |
