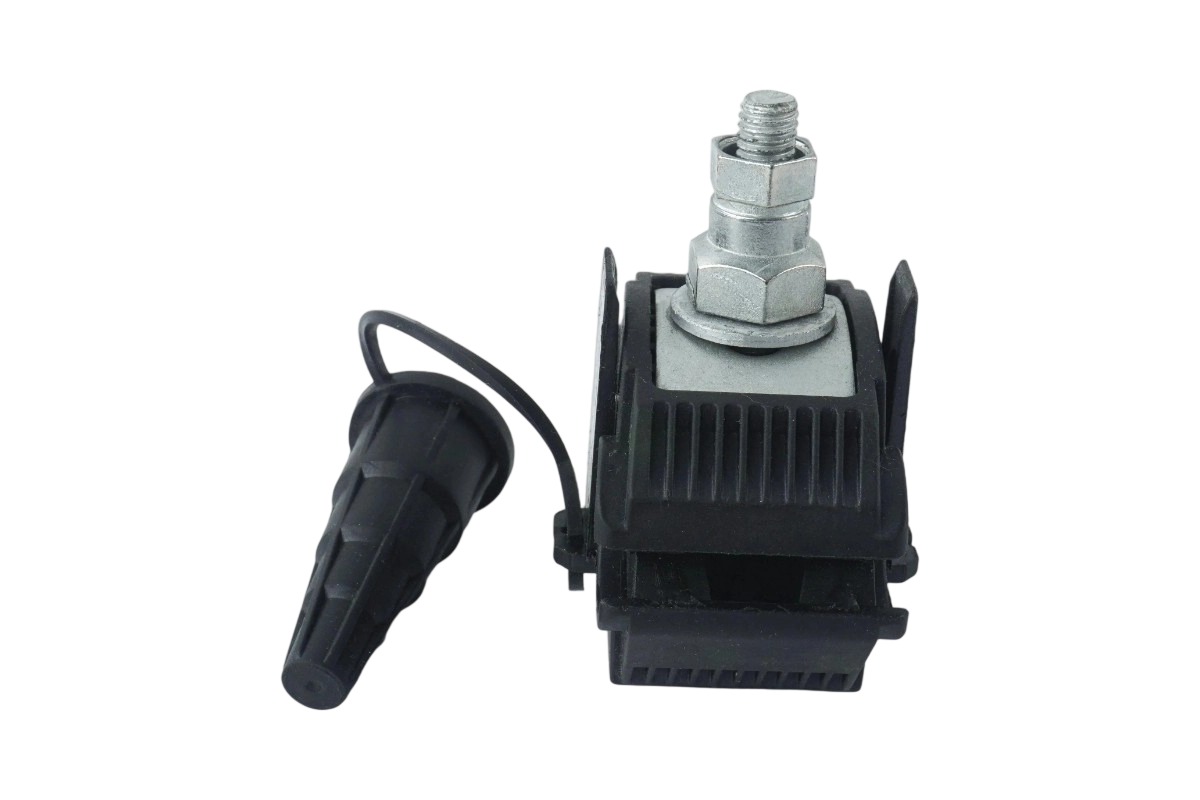

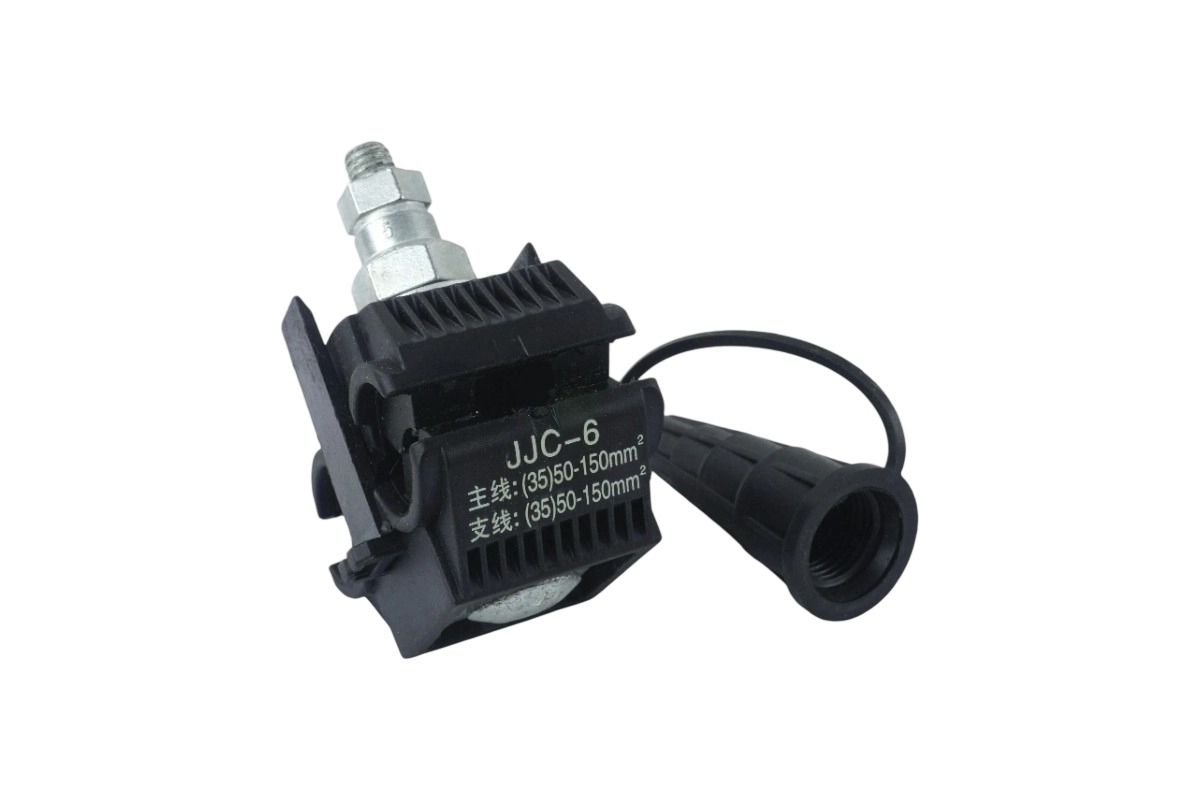

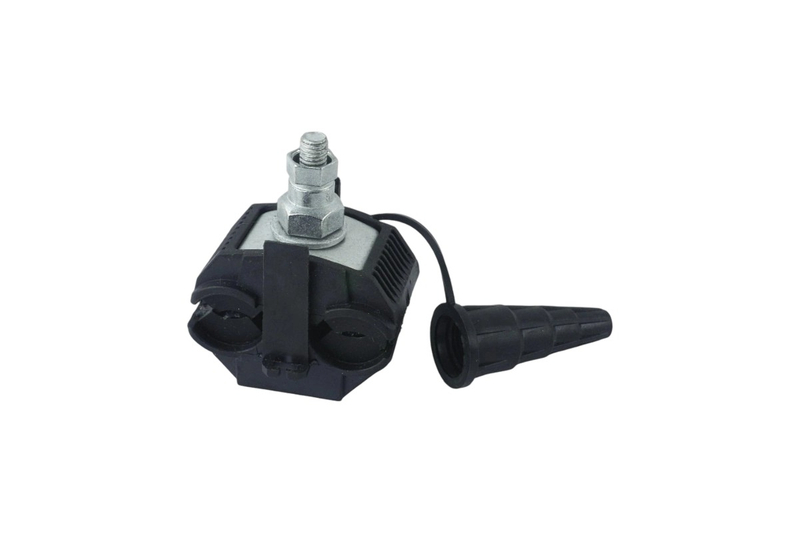

>> Insulation Piercing Clamp
The JJC insulation piercing connectors are suitble to connectmain and one, two tap conductors' of section, how is written on JJC body.Type without letter B serves to connect isolated conductors, with letter B bare conductors.JJC for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.
JJC consists from two glass-fiber reinforced plastic parts, which are fitted with two brass tinned teeth's, which are coated with UV-curing silica grease and the teeth are fitted with rubber insulation.This set is associated with the bolt, nut and pinch fixation segment.
The terminals marked T are equipped with tear head. The lower part of the clamp is designed to chamber, providing optimal ventilation of JJC.
lts self-seam frame is wet proof, water proof, and anti-corrosive,which can prolong the using life of insulated lead and connector.
Designed for all weather applications and easy to install.
JJC had passed 6KV test under water for 1 Min.
Standard:EN 50483-4,NFC 33-020,NFC 33-004
>> Product Specifications
| ltem No. | Main wire section | Branch wire section | Bolt | Package (pcs) | Gross weight (kg) |
| NU-1 | 10-95 | 1.5-10 | 1 | 500 | 24 |

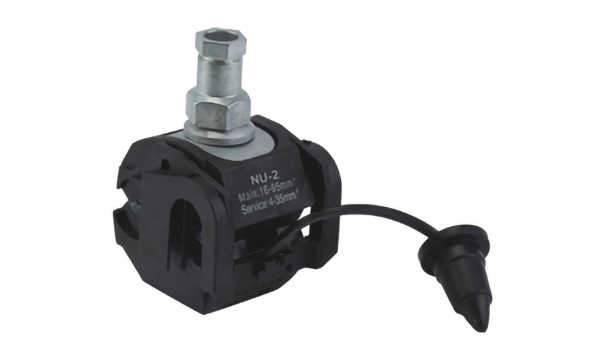

| NU-2 | 16-95 | 4-35 | 1 | 200 | 26 |
| NU-3 | 50-150 | 6-35 | 1 | 200 | 27 |
| NU-4 | 16-95 | 16-95 | 1 | 150 | 25.5 |
| NU-5 | 35-150 | 35-150 | 1 | 150 | 27 |
