If an aluminium conductor has to land on a copper terminal, the only connection method that removes galvanic corrosion at the source is a bimetallic cable lug with a factory-welded copper-aluminium transition. Everything else — washers, pastes, plated spacers — only slows the corrosion down.
That is the conclusion. The rest of this article explains why the failure happens, what a friction-welded lug actually does differently, and how to judge whether the bimetallic lug on your desk is a real one or just two metals pressed together.
Copper and aluminium differ by roughly 1.5–2 volts in electrode potential, depending on the electrolyte. Bolt them together, add moisture — rain, condensation, even coastal humidity — and you have built a small galvanic cell. The aluminium becomes the sacrificial anode.
The corrosion product, hydrated aluminium oxide, has two unpleasant properties:
It is a poor conductor, so joint resistance climbs.
It occupies more volume than the metal it replaces, so it wedges the joint apart and loosens clamping pressure.
Rising resistance means rising temperature at load. Rising temperature accelerates the reaction. The joint enters a feedback loop that ends with discoloured metal, melted insulation, or an arc fault.
How fast? In dry, climate-controlled switchrooms, a direct copper-aluminium joint may survive for years. In outdoor, coastal, or high-humidity industrial service, we have seen joints show measurable resistance drift within the first 12–24 months. Salt spray testing per ASTM B117 compresses this story into weeks: unprotected Cu-Al contact pairs show visible attack at the interface long before any welded transition sample does.
Before friction-welded lugs became widely available, installers used workarounds. Each has a real weakness worth understanding:
Bimetallic washers. A thin Cu-Al washer inserted between lug and busbar adds two new interfaces where there was one. Every interface carries contact resistance and needs correct torque. Field crews routinely install them backwards or omit them on one phase.
Anti-oxidant paste alone. Joint compound protects the contact area it covers — until thermal cycling pumps it out of the interface. It is a supplement, not a solution.
Tinned copper lugs on aluminium conductor. Tin plating separates the metals initially, but crimping abrades plating at exactly the points where the metals bite into each other. The galvanic pair is re-established at the highest-pressure contact points.
The common thread: all of these leave a mechanical interface between copper and aluminium somewhere in the current path. Mechanical interfaces admit moisture. Moisture starts the cell.

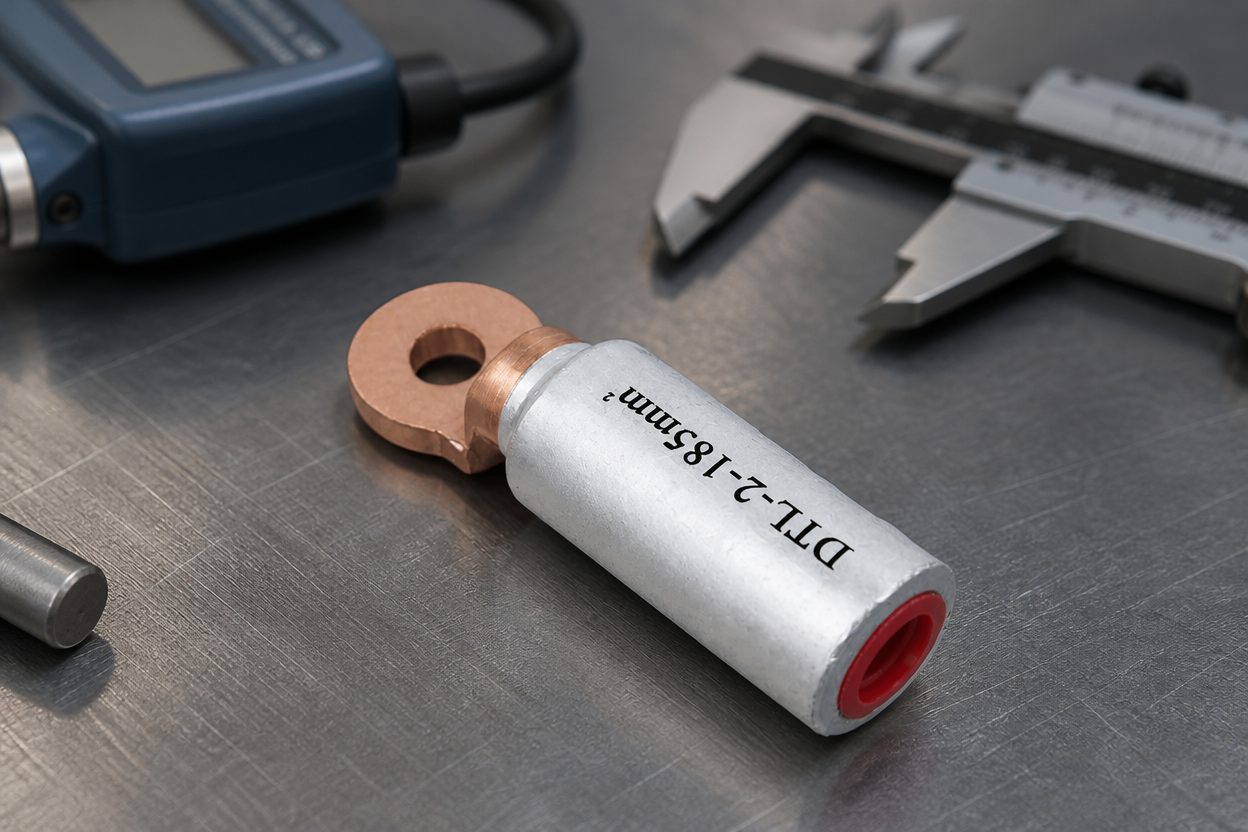

A proper bimetallic lug — the DTL series is the standard IEC-market example — is made by spinning an aluminium barrel against a copper palm under axial pressure. Friction heats the interface into a plastic state (below melting point), the machine forges the two together, and the result is a metallurgical bond: a continuous metal-to-metal transition with no gap, no crevice, and nothing for an electrolyte to penetrate.
The numbers that describe a good weld:
Bond tensile strength above 200 MPa — the joint is stronger than the 1070-grade aluminium around it, so pull tests break the barrel, not the weld.
Transition resistance below 10 µΩ — electrically, the joint behaves like a continuous conductor.
Zero crevice volume — the corrosion mechanism needs an electrolyte film at the interface; a welded interface has no interface left to wet.
This is the part many datasheets gloss over: friction welding does not merely resist galvanic corrosion. It removes the geometry the corrosion requires. That distinction is why IEC-market utilities have standardised on welded bimetallic lugs for aluminium-to-copper transitions in LV and MV networks.
Having manufactured and type-tested these fittings, here is what we check on every production batch — and what you can check on a sample with basic tools:
1. The weld line. Cut a sample lug lengthwise. The Cu-Al interface should be a clean, continuous line with a slight forging flash, no voids, no dark inclusions. A brazed or glued transition looks different — and performs differently.
2. Copper palm material. Should be T2/T3 electrolytic copper, tin plated at 5–10 µm. Thin plating wears through during bolting; verify with a coating gauge if the application is critical.
3. Aluminium barrel material. 1070-grade aluminium, annealed. Harder alloys crack along the crimp indent. You can feel the difference: an annealed barrel deforms smoothly under a hand hacksaw; a hard one chatters.
4. Pre-filled contact grease. The barrel interior should arrive with oxide-inhibiting compound and a sealing cap. Aluminium strands re-oxidise within seconds of brushing; the grease is what keeps the freshly scored strand surfaces conductive after crimping.
5. Crimp position marks. Clear indents or printed bands showing die positions. Uniform crimping order (palm side first, then toward the cable) prevents barrel elongation from distorting the palm angle.
If a supplier cannot show you a sectioned weld sample and an IEC 61238-1 type-test report for the specific size range, treat the “bimetallic” label with suspicion.
Solar plants. Aluminium DC trunk and AC feeder cables meeting copper inverter and transformer terminals is the defining connection of utility-scale PV. Inspection reports from PV plant commissioning regularly flag direct Cu-Al contact as a top-ten defect. Every one of those joints should be a DTL-type lug.
MCCB terminations. Aluminium feeders landing on moulded-case breaker pads are common in commercial distribution. The ACL series exists specifically for this geometry — a narrow copper palm shaped for breaker terminal windows, welded to an aluminium barrel sized 10–630 mm².
Utility LV-ABC networks. Service connections from aluminium bundled conductor to copper metering equipment. Pre-insulated variants (DTL-4 type, tested to EN 50483-4) add watertightness for the outdoor section.
Retrofit projects. Older buildings with aluminium risers being upgraded with modern copper-terminal switchgear. This is where the “temporary” copper-lug-on-aluminium shortcut appears most often — and where thermographic surveys later find it.
The factory weld solves the metallurgy. The installer still controls three variables:

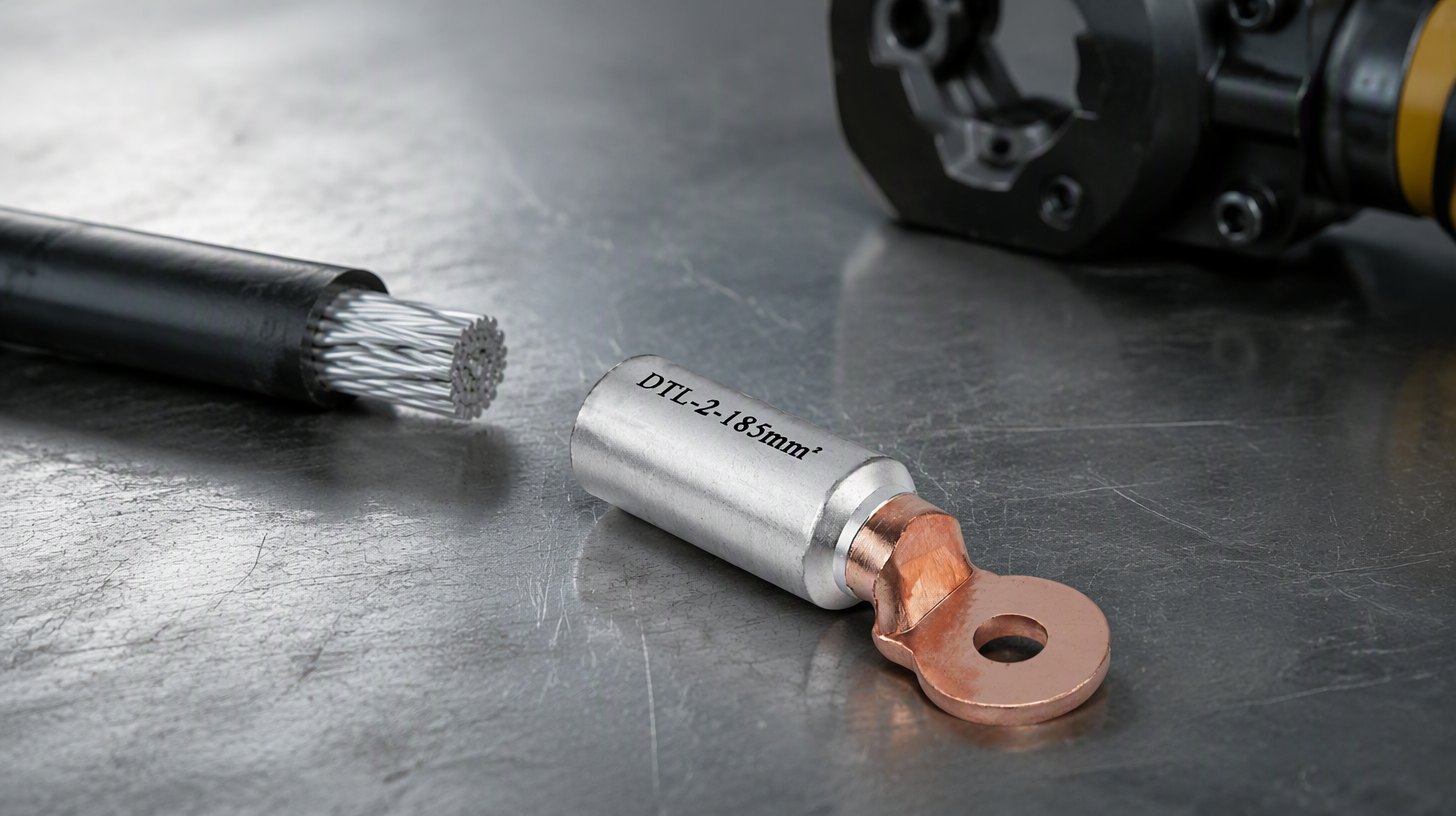

Rule 1 — Do not remove the grease. Wipe the conductor, not the barrel interior. Brush the aluminium strands with a stainless brush, insert immediately, crimp immediately. The 30-second window matters.
Rule 2 — Match the die to the barrel. Use the die size stamped on the lug or listed in the crimping chart. Aluminium barrels are dimensioned differently from copper barrels of the same conductor size; a copper die under-compresses an aluminium barrel.
Rule 3 — Torque the palm bolt to specification, once. Aluminium-bodied joints relax slightly after first loading; IEC-compliant designs account for this. Do not “re-tighten annually” — repeated torquing work-hardens the palm and crushes the plating. If a joint loosens, inspect it; don’t just pull harder on the wrench.
A friction-welded DTL lug costs more than a plain aluminium lug plus a bimetallic washer. Purchasing departments notice this. What the unit-price comparison misses:
The washer solution needs two torque-controlled interfaces instead of one — more labour per joint.
Each added interface is an added inspection point for the life of the asset.
One thermographic-survey callout to investigate a warm joint costs more than the price difference across hundreds of lugs.
According to lifecycle costing commonly applied in utility procurement, connection hardware is evaluated on total cost of ownership across 20–30 years of service — and on that horizon, the welded lug is the cheaper component. It is one of the few cases in electrical procurement where the technically superior option is also the economical one.
Do bimetallic lugs work in both directions — copper cable to aluminium terminal?
The standard DTL construction is aluminium barrel + copper palm, built for aluminium conductor landing on copper equipment, because that is the overwhelmingly common case in modern networks. The reverse direction (copper cable onto aluminium busbar) is rarer and handled with different transition fittings — do not simply flip a DTL around, since crimping copper strands into an aluminium barrel recreates the galvanic pair inside the crimp.
What sizes do friction-welded bimetallic lugs cover?
The DTL family spans roughly 10 to 630 mm² of aluminium conductor, with palm holes from M6 up to M20 and double-hole options in the DTL-2 style for high-current flat-bar terminations. The ACL variant covers the same electrical job in a narrow-palm geometry for MCCB terminal windows, and the PBL pin type serves terminal-block entries in compact boards.
How long does a friction-welded joint actually last?
The weld itself is not the life-limiting element — it is a continuous metal transition with no interface to degrade. Type testing to IEC 61238-1 demonstrates resistance stability through 1,000 heat cycles, which is the laboratory proxy for decades of load cycling. In practice, service life is set by the quality of the field crimp and the bolted interface, which is why the installation rules above matter as much as the component.
Can I use a bimetallic washer instead if the load is small?
Physically it will conduct. But the failure mechanism does not scale down with load — a lightly loaded outdoor Cu-Al joint corrodes on the same chemistry, just with less self-heating to accelerate it. Small circuits also tend to receive the least inspection attention, which argues for more robust hardware, not less. The cost difference per joint is small enough that standardising on welded lugs across all sizes usually simplifies both purchasing and site practice.
Is there a visual way to spot a fake “bimetallic” lug?
Look at the transition zone. A friction weld shows a clean circumferential line, often with a slight rolled flash, at the barrel-palm junction. Glued or pressed products frequently show a stepped joint, visible adhesive, or a sleeve-over-tube construction. When in doubt, ask for a longitudinal section — a genuine manufacturer sections samples routinely for their own quality control and will send you one.
Aluminium conductor to copper terminal is a galvanic corrosion problem, and the only clean solution is to move the Cu-Al transition into the factory, where it can be friction-welded, tested, and sealed. Specify lugs with welded transitions, T2/T3 copper palms, 1070 aluminium barrels, pre-filled grease, and IEC 61238-1 type-test evidence. Then protect that engineering with correct dies, fast crimping after brushing, and single correct torquing.
