In power transmission and distribution systems, the role of Connecting Pipes cannot be overstated. These essential components help ensure the smooth and safe flow of electricity from power stations to end users. Selecting the right Connecting Pipe is crucial for the efficiency, safety, and reliability of the system.
Power transmission and distribution networks involve high-voltage electrical lines, transformers, and substation equipment, all of which require strong, durable, and low-resistance connections. Connecting Pipes provide these connections, linking cables to key components such as busbars, transformers, and circuit breakers. Poor selection of Connecting Pipes can lead to power losses, safety hazards, and even equipment failure.
Understanding the role of Connecting Pipes in these systems allows engineers and system designers to make informed decisions about materials, sizes, and other factors that influence the performance of the overall electrical system.

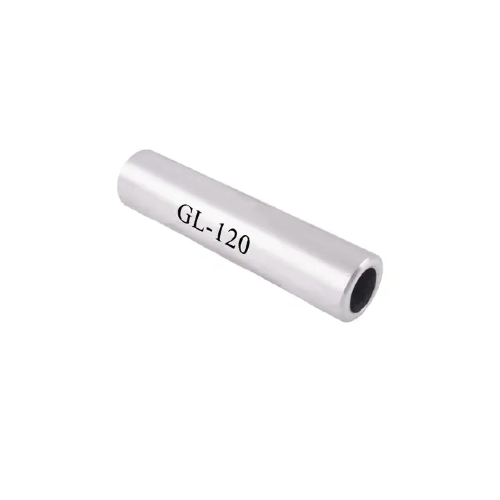

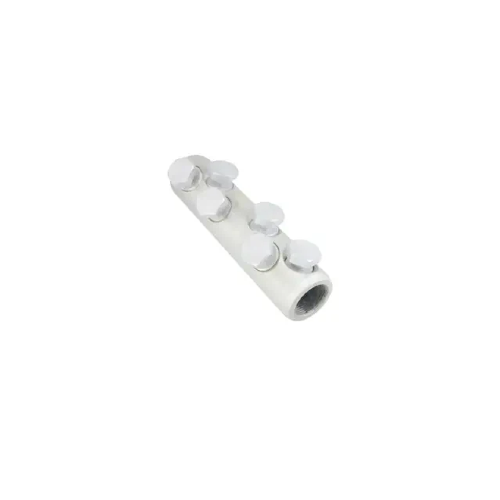

A Connecting Pipe is a cylindrical, hollow connector used to join electrical cables to other system components like busbars, transformers, and terminal blocks. The pipe is typically crimped or bolted to create a secure, low-resistance electrical connection.
Connecting Pipes come in various materials and sizes, depending on the specific requirements of the power system. Below is an overview of the most common types:
Material |
Advantages |
Disadvantages |
Copper |
Excellent conductivity, corrosion-resistant |
Higher cost |
Aluminum |
Lightweight, cost-effective |
Lower conductivity, prone to oxidation |
Tinned Copper |
Resistant to corrosion, ideal for marine use |
Slightly higher cost than aluminum |
The primary function of Connecting Pipes in power systems is to ensure a low-resistance connection between cables and critical system components. These pipes help in the efficient transfer of electrical power by minimizing energy losses due to resistance and reducing the chances of overheating.
By providing secure connections, Connecting Pipes also ensure that electrical systems remain stable and safe, avoiding dangerous faults like arcing, fire, and equipment damage.
One of the key characteristics of Connecting Pipes is their conductivity. High-conductivity materials, such as copper, are essential for minimizing power losses. When electrical resistance is high, it can cause excessive heat, which can damage cables, connectors, and other system components. By choosing Connecting Pipes with excellent conductivity, such as copper, the system’s overall efficiency can be improved.
The mechanical strength of Connecting Pipes is equally important. These pipes must withstand mechanical stress without compromising the connection's integrity. For example, in power transmission lines, where cables experience tension and vibration, Connecting Pipes must be robust enough to hold up under these conditions.
Corrosion resistance is another vital feature. In harsh environments, especially in marine or industrial applications, Connecting Pipes must resist corrosion from moisture, chemicals, or saltwater. Tinned Copper is often used in such environments because the tin coating adds an extra layer of protection against corrosion.
Connecting Pipes also need to withstand high temperatures without compromising their performance. Electrical systems, especially in power transmission, can generate significant heat, making it important to use pipes that can resist thermal expansion and contraction. Copper and tinned copper are ideal materials for handling such heat, maintaining their properties in elevated temperatures.
Connecting Pipes are essential for the smooth flow of electrical power from one component to another. They act as the bridge between electrical cables and power equipment, ensuring that power is delivered efficiently and reliably.
Without these connections, power would not be able to flow effectively, causing interruptions in service and potentially damaging sensitive electrical components.
High-quality Connecting Pipes with low resistance minimize the loss of electrical energy as it travels through the system. This is particularly important in high-voltage power transmission systems, where even small losses can add up to significant inefficiencies. By using pipes with excellent conductivity, engineers can ensure that power losses are minimized, increasing the overall efficiency of the transmission and distribution system.
Safety is a critical aspect of power systems. Overheating, arcing, or poor connections can lead to system failures, fires, or even electrical accidents. Connecting Pipes that are made from high-quality, corrosion-resistant materials help mitigate these risks by ensuring a secure, low-resistance connection. These pipes are also designed to handle high temperatures and mechanical stress, reducing the likelihood of system failures.
Choosing the right Connecting Pipe for a power system involves considering several factors:
The choice of material depends on the specific electrical, environmental, and cost requirements of the project. Copper is ideal for applications requiring excellent conductivity, while aluminum is a more cost-effective option. For harsh environments, such as marine or offshore applications, Tinned Copper is often preferred due to its superior corrosion resistance.
Selecting the correct size for Connecting Pipes is crucial. The pipe must fit the diameter of the cable and other system components properly to ensure a secure connection. Using pipes that are too large or too small can result in poor contact, leading to inefficiency and potential safety hazards.
Connecting Pipes should meet international standards and certifications such as IEC, ISO, and CE. These certifications ensure that the pipes meet the necessary safety, performance, and quality criteria for use in electrical systems.
OEM/ODM Services
Many manufacturers, including Wenzhou Mingxu International Trade Co., Ltd., provide OEM/ODM services, offering the ability to customize Connecting Pipes to meet specific project requirements. This service is especially valuable for large-scale power transmission projects or systems with unique specifications that standard off-the-shelf solutions may not fulfill.
Customization Options
Customization options for Connecting Pipes include adjustments in material, size, and coating types. For example, in power systems located in high-humidity or corrosive environments, we can manufacture Connecting Pipes with special protective coatings to improve their corrosion resistance and durability. Additionally, materials can be tailored to suit the electrical load and environmental conditions of the system, ensuring optimal performance and longevity. This flexibility helps ensure that the Connecting Pipes meet the exact needs of each project, improving efficiency and system reliability.
Proper installation is key to ensuring that Connecting Pipes function as intended. Below are some tips for the installation of Connecting Pipes in power systems:
Ensure proper stripping of cables before inserting them into the Connecting Pipe.
Use appropriate crimping or bolting tools to ensure a tight, secure connection.
Avoid over-tightening connections, which could damage the Connecting Pipe or the cable.
Routine inspection and maintenance are essential to ensure the longevity and performance of Connecting Pipes. Regularly check for signs of wear, corrosion, or loose connections, and replace or clean pipes as necessary to maintain optimal system performance.
In power transmission and distribution systems, Connecting Pipes are vital for ensuring efficient, safe, and reliable power flow. The correct selection of materials, sizes, and installation methods is crucial for optimizing system performance and minimizing risks. Whether for power grids, renewable energy projects, or industrial power distribution, choosing the right Connecting Pipe can significantly improve the system’s reliability and safety.
At Wenzhou Mingxu International Trade Co., Ltd., we specialize in providing high-quality Connecting Pipes tailored to meet the specific needs of power transmission and distribution systems. Our products are designed to ensure low-resistance, durable, and corrosion-resistant connections. We offer custom solutions through OEM/ODM services, ensuring that each pipe meets your project’s unique requirements.
If you're looking for reliable, high-performance Connecting Pipes for your power system, we invite you to contact us. Our expert team is ready to help you choose the best solutions for your project’s success, ensuring long-term reliability and safety.
Q1: What materials are used for Connecting Pipes in power systems?
A1: The most common materials are copper, aluminum, and tinned copper. Copper offers high conductivity, while aluminum is cost-effective. Tinned copper is ideal for harsh environments due to its superior corrosion resistance.
Q2: How do Connecting Pipes reduce power losses in transmission systems?
A2: Connecting Pipes made from materials with high conductivity, such as copper, help minimize resistance, which reduces power losses and increases system efficiency.
Q3: What safety issues can arise from using poor-quality Connecting Pipes?
A3: Poor-quality Connecting Pipes can lead to overheating, electrical arcing, and system failures, increasing the risk of fires or accidents in the system.
Q4: Can Connecting Pipes be customized for specific power transmission applications?
A4: Yes, OEM/ODM services allow for the customization of Connecting Pipes to meet specific project needs, including material, size, and coating.
Q5: How often should Connecting Pipes be maintained or inspected?
A5: Regular inspections should be conducted to check for corrosion, wear, or loose connections. Proper maintenance will ensure the longevity and optimal performance of the Connecting Pipes.
