Bimetal is a term used to describe materials made from two different metals that are joined together to provide a combination of properties that neither metal could offer alone. This unique pairing often leads to enhanced performance and efficiency in various industrial and electrical applications. A common example of a bimetal component is the Bimetal Cable Lug, which plays a crucial role in electrical connections.
In this article, we will explore the concept of bimetal, its properties, and how it is used in industries such as electrical engineering. We’ll also take a close look at bimetal cable lugs, their significance, and why they are an essential component for modern electrical systems.
Bimetal refers to a combination of two distinct metals that are fused or bonded together to take advantage of the unique properties of each metal. This combination often results in enhanced strength, resistance to wear, and other desirable characteristics. Bimetals are typically created using processes such as welding, brazing, or cladding, where the metals are bonded together to form a single composite material.
The properties of bimetal materials depend on the metals used. One metal may offer high strength, while the other provides corrosion resistance or good conductivity. The synergy of these properties makes bimetals highly valuable for specific industrial applications.
Bimetals combine the best features of the two metals used. Some of the key characteristics include:
Thermal Expansion: One of the most common uses of bimetals is in devices that rely on thermal expansion. The two metals expand at different rates when heated, creating mechanical motion. This is a crucial feature for thermostats and other temperature-sensitive devices.
Corrosion Resistance: Bimetallic materials often combine metals with superior resistance to corrosion, which makes them ideal for use in harsh environmental conditions, such as marine applications or industrial environments.
Strength and Durability: By combining a strong metal with a more ductile one, bimetal materials can achieve a balance of strength and flexibility, making them highly durable in mechanical applications.
Electrical Conductivity: Certain bimetals are specifically designed for electrical applications, providing efficient electrical conductivity by combining metals with excellent conductive properties, such as copper and aluminum.
In electrical systems, bimetals are used to create components that must withstand different conditions, such as temperature fluctuations and electrical currents. The Bimetal Cable Lug is one of the most important components that utilize bimetal technology to ensure safe and efficient electrical connections.

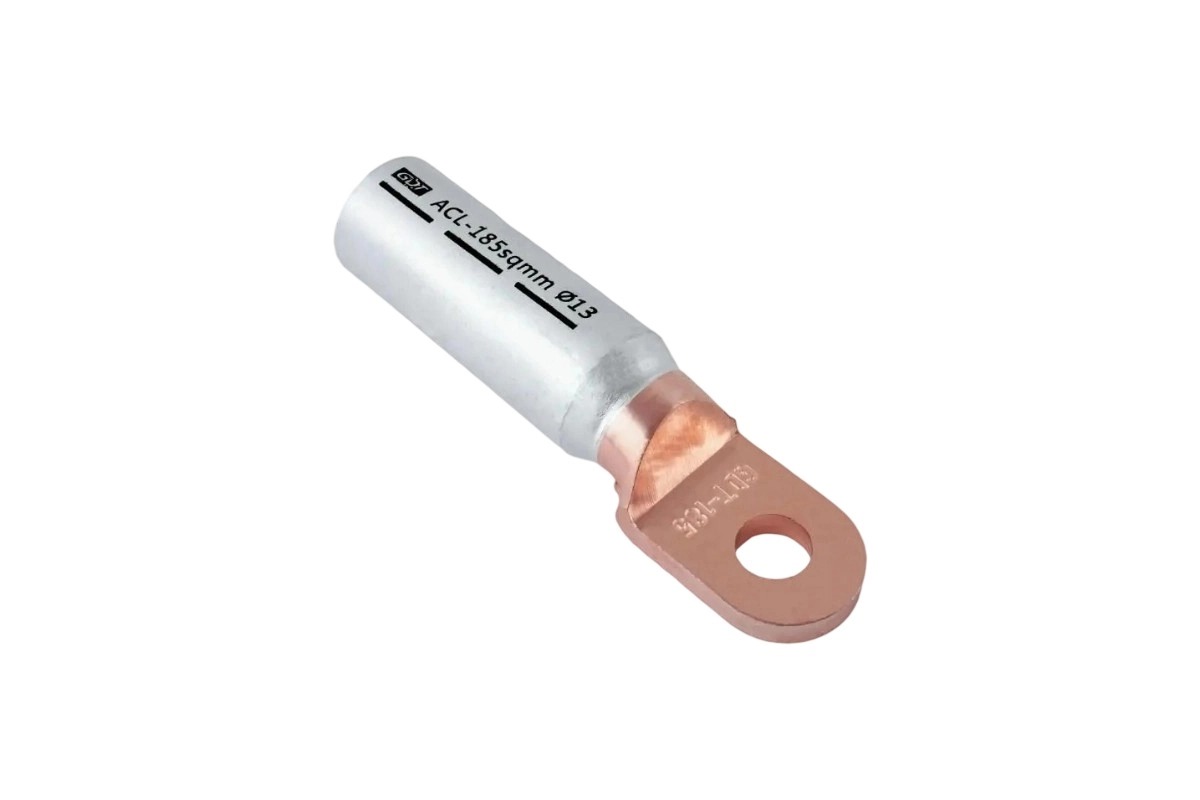

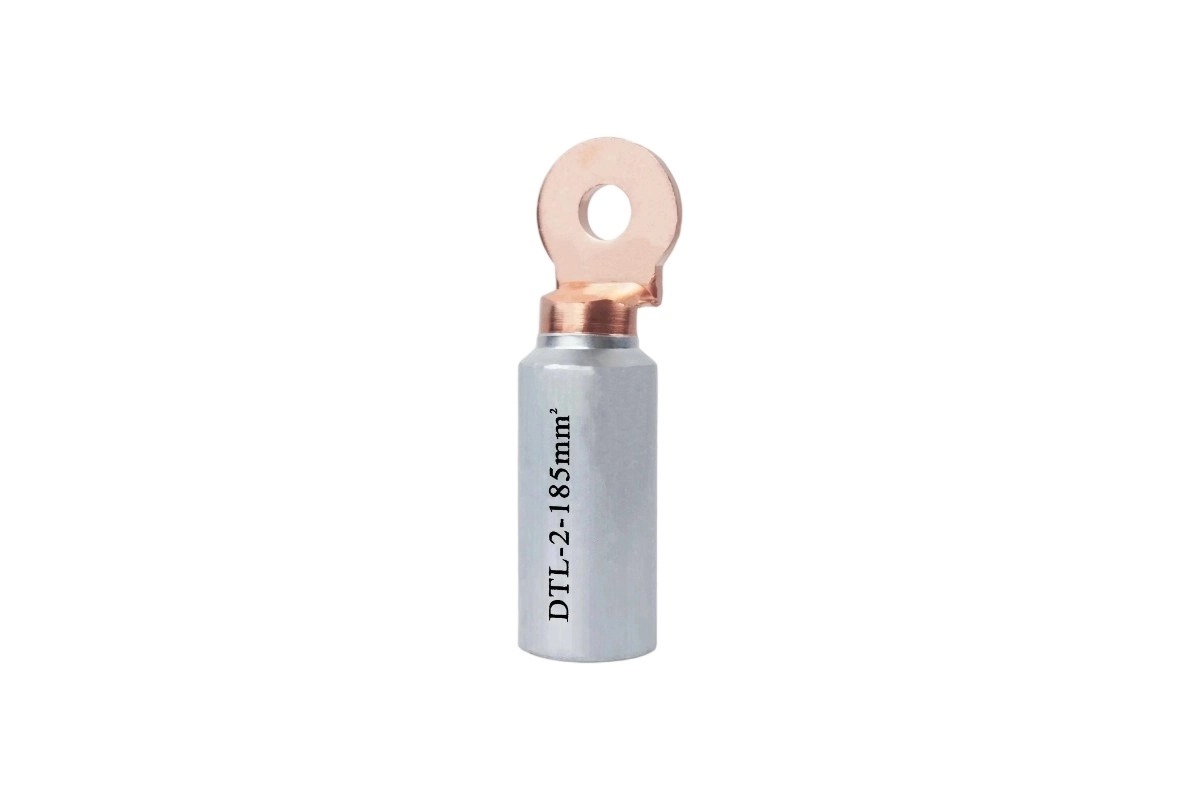

A Bimetal Cable Lug is a type of connector used in electrical systems to link cables to electrical equipment. These lugs are made from two different metals—usually copper and aluminum—bonded together. The choice of metals ensures the lug is both cost-effective and highly durable.
Improved Electrical Connection: Bimetal cable lugs ensure a high-quality electrical connection between cables and other equipment. The combination of metals with excellent conductivity ensures minimal resistance, which translates to lower power losses and greater efficiency.
Corrosion Resistance: Since aluminum and copper react differently to environmental factors, bimetallic lugs are designed to resist corrosion and wear. This feature is especially important in outdoor installations or environments exposed to moisture and extreme temperatures.
Reduced Maintenance: The durability of bimetallic lugs reduces the need for frequent maintenance and replacement, leading to long-term cost savings.
Cost Efficiency: Using aluminum in combination with copper reduces the overall cost of the component while still maintaining high conductivity. Bimetal cable lugs are a cost-effective solution for industries looking for reliable electrical connections without breaking the bank.
Bimetal cable lugs are found in many industrial and commercial applications, including:
Power Distribution Systems: Bimetal cable lugs are used in power substations and electrical grids to connect cables to transformers, circuit breakers, and other equipment.
Renewable Energy Systems: In solar and wind energy systems, bimetallic lugs help to connect cables in a way that ensures efficient power transmission.
Industrial Equipment: Bimetal lugs are used in machinery and factory setups, where reliability and durability are paramount.
Construction and Infrastructure: Bimetal cable lugs are often used in construction projects that require robust electrical connections, especially in large buildings or infrastructure projects.
The manufacturing process of bimetal components involves several steps to ensure that the metals are properly bonded together and exhibit the desired properties. The most common methods used include:
In cladding, one metal is bonded to the surface of another, typically by rolling or pressing them together under high pressure. This process ensures a strong bond and ensures the metals remain securely attached.
Bimetallic components can also be manufactured through welding, where the two metals are fused by applying heat. This method is commonly used for industrial applications where durability and resistance to extreme conditions are essential.
Brazing involves melting a filler metal to join two metals together. This technique is used when a strong, yet flexible bond is required, and it allows for a precise and clean finish.
A more advanced technique, explosive bonding, uses controlled explosive forces to create a bond between metals. This method is often used in the production of bimetallic strips and other specialized components.
The combination of two different metals offers several advantages, making bimetallic materials an attractive choice for various applications:
1. Customization: Bimetallic materials can be tailored to meet specific needs by selecting metals with complementary properties. For example, combining copper and aluminum provides both high conductivity and low cost.
2. Better Performance: The unique combination of metals allows bimetals to outperform single-metal components in areas such as durability, conductivity, and corrosion resistance.
3. Energy Efficiency: By reducing electrical resistance, bimetals help improve the energy efficiency of electrical systems. This is particularly important in systems where power loss can lead to significant costs.
4. Longevity: Bimetallic components are often more durable than single-metal components, which results in longer service life and less frequent replacement.
While bimetals offer many advantages, there are some challenges and considerations to keep in mind when using them:
Material Compatibility: The two metals must be carefully selected to ensure compatibility, particularly in terms of thermal expansion and conductivity. Improper selection can lead to failure or reduced performance.
Manufacturing Complexity: The processes used to create bimetals, such as welding and cladding, can be more complex and costly than working with single-metal components. This needs to be factored into the overall cost.
Maintenance: While bimetals generally reduce maintenance requirements, regular inspection is necessary to ensure that the materials are still functioning as intended, especially in harsh environments.
Bimetal is a versatile and highly effective solution for industries that require the best properties of two metals combined. Whether it’s for electrical components like bimetal cable lugs or for use in industrial machinery, the unique combination of metals can offer improved performance, cost efficiency, and durability. Understanding the concept and applications of bimetal materials can lead to better decision-making in various engineering fields.
1. What is the primary benefit of using bimetal in cable lugs?
The main benefit is the improved electrical conductivity and corrosion resistance. Copper provides excellent conductivity, while aluminum is lightweight and cost-effective. The combination of these two metals ensures a high-performance, durable solution for electrical connections.
2. How does the bonding process of bimetals work?
Bimetals are bonded using methods like cladding, welding, brazing, or explosive bonding. These processes ensure a strong bond between the metals, allowing the combined material to exhibit the best characteristics of both metals.
3. Are bimetal cable lugs suitable for high-temperature environments?
Yes, bimetal cable lugs are designed to withstand temperature fluctuations and are often used in environments with extreme heat or cold. The combination of metals helps to ensure the lugs maintain their performance in these conditions.
4. Can bimetals be used in renewable energy systems?
Yes, bimetals are commonly used in renewable energy systems, such as solar panels and wind turbines, for efficient power transmission and to ensure durable, corrosion-resistant connections.
