A bimetal lug is an essential electrical component that is used for connecting two different types of conductors, typically copper and aluminum, within an electrical system. These specialized connectors play a crucial role in ensuring a secure and reliable electrical connection between cables with different metal compositions. The use of bimetal lugs helps to overcome the challenges that arise when trying to connect dissimilar metals, especially in industrial and commercial electrical installations.
In this article, we’ll explore what bimetal lugs are, their components, why they are important, and their various applications. We’ll also dive into the advantages they offer, common use cases, and provide some helpful comparisons to other types of cable lugs.

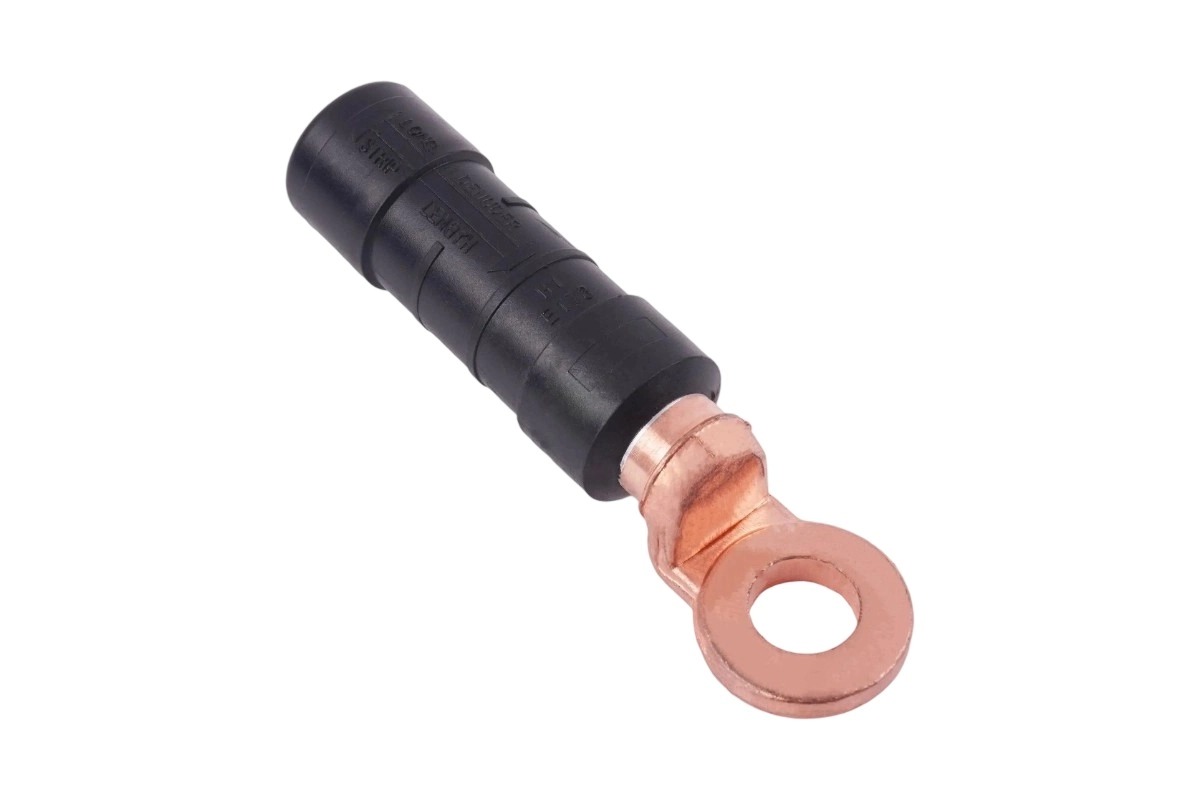

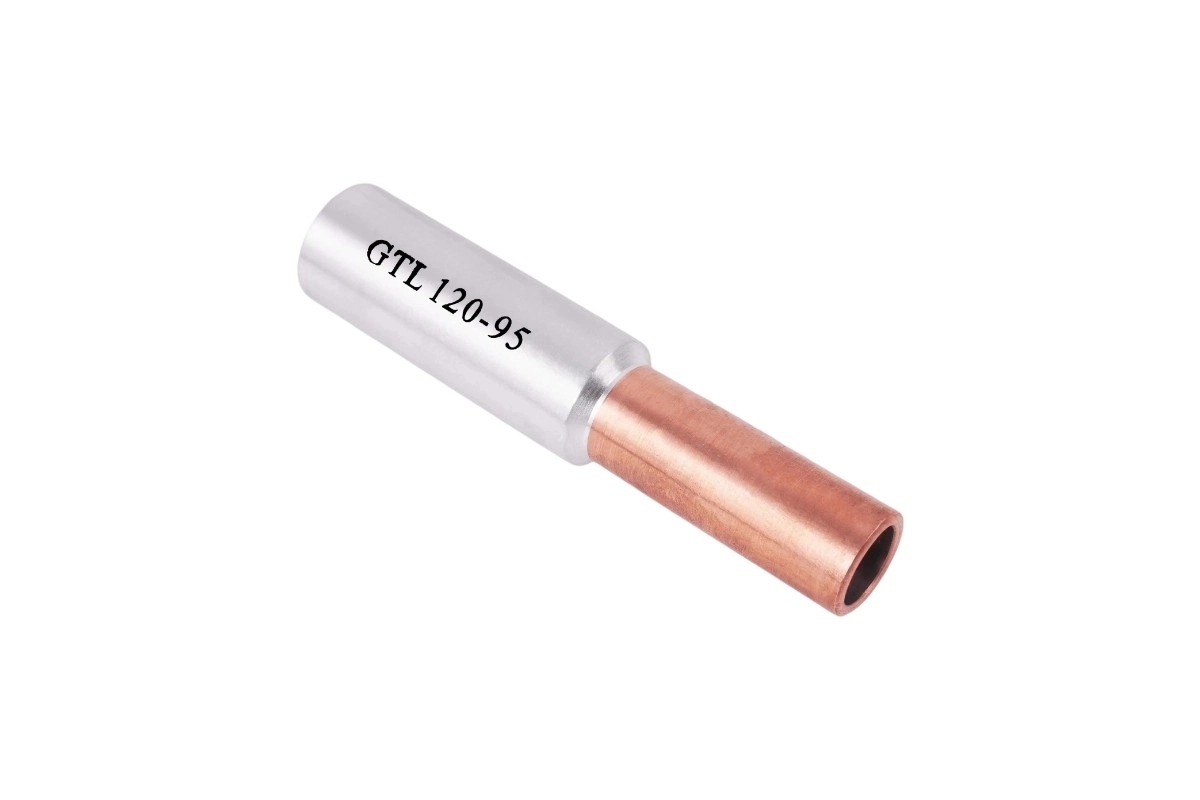

A bimetal lug consists of two different metal components: a copper part and an aluminum part. The copper is typically used for the terminal, while the aluminum is used for the body of the lug. These two metals are bonded together to form a single unit that allows for efficient current transfer without the risk of galvanic corrosion, which could otherwise occur when aluminum and copper are directly connected.
The copper part is used to connect the cable to electrical equipment, such as a panel or busbar, while the aluminum part serves as the interface with the cable, often used in larger-scale installations like power distribution.
| Component | Material | Function |
|---|---|---|
| Copper Terminal | Copper | Ensures a strong, low-resistance connection to the electrical system. |
| Aluminum Body | Aluminum | Used to connect to aluminum cables, providing mechanical strength and reducing corrosion risk. |
| Insulation | Plastic | Provides electrical insulation and protection. |
Bimetal cable lugs solve a specific issue encountered in many electrical systems: the need to connect aluminum cables to copper conductors. Copper and aluminum behave differently when in contact with each other. Without the right connector, such as a bimetal lug, the connection can become inefficient and even dangerous over time.
Galvanic Corrosion: When aluminum and copper are in direct contact, corrosion can occur, reducing the effectiveness of the connection and potentially leading to electrical failure.
Thermal Expansion Mismatch: Copper and aluminum expand and contract at different rates when heated, which can cause loose connections if not properly handled.
Electrical Resistance: Copper and aluminum have different electrical conductivities, which means that the right connection is necessary to ensure efficient current flow.
By combining the benefits of both metals, bimetal lugs provide a durable and reliable solution to these problems, ensuring a long-lasting, stable connection between different types of conductors.
Bimetal cable lugs come in various shapes and sizes to suit different application needs. They are designed to handle a range of electrical capacities, depending on the size of the cables and the voltage requirements. Some common types include:
Straight Bimetal Lugs – These are the most basic form of bimetal lugs and are typically used in low-voltage applications.
Tapered Bimetal Lugs – These lugs have a tapered design, which is ideal for medium to high-voltage systems. They allow for a more compact fit while still providing a secure electrical connection.
Heavy Duty Bimetal Lugs – Used in industrial applications, these lugs are designed to handle higher current loads and offer enhanced durability.
| Type | Design | Application | Voltage Rating |
|---|---|---|---|
| Straight Lug | Simple and straight | Low voltage, general use | 250V - 600V |
| Tapered Lug | Tapered for compactness | Medium voltage, space-saving | 600V - 1kV |
| Heavy Duty Lug | Reinforced for high loads | Industrial, high current systems | 1kV and above |
Bimetal cable lugs offer a range of advantages that make them essential in various electrical applications. Here are the main benefits:
The copper-aluminum connection in bimetal lugs prevents galvanic corrosion, which could otherwise degrade the connection. By utilizing a bimetal design, the electrical connection remains intact for a longer period, reducing the need for maintenance.
Copper is an excellent conductor of electricity, and by using copper at the connection point, bimetal lugs ensure efficient current flow. Meanwhile, the aluminum body ensures mechanical strength without compromising electrical conductivity.
Aluminum is less expensive than copper, which makes bimetal lugs more affordable compared to all-copper lugs while still providing the same electrical efficiency. This cost-saving benefit is especially crucial in large-scale electrical projects.
The durability of bimetal lugs ensures that they are suitable for a range of environmental conditions, from industrial plants to outdoor installations. The corrosion resistance and high mechanical strength make them long-lasting, providing years of reliable service.
Bimetal lugs are commonly used in a variety of industries where different metals need to be connected reliably and efficiently. These include:
Power Distribution – Used in substations and electrical grids to connect copper busbars to aluminum cables.
Telecommunications – For connecting cables in telecom systems that involve a mix of copper and aluminum conductors.
Renewable Energy Systems – In solar power systems, where copper wiring is often used for connections to the grid, and aluminum is used for other parts of the system.
Industrial Systems – In factories and power plants, bimetal lugs are crucial for ensuring secure connections between different types of cables and equipment.
Proper installation of bimetal lugs is essential to ensure optimal performance and longevity. Here is a general overview of the installation process:
Prepare the Cable: Strip the insulation from the cable and ensure that the copper and aluminum conductors are clean and free from any contaminants.
Select the Correct Size Lug: Choose a bimetal lug that fits the cable size and current rating.
Insert the Cable into the Lug: Place the cable into the lug and ensure it is fully inserted without any gaps.
Crimp the Lug: Using a crimping tool, securely crimp the lug onto the cable. Ensure that the connection is tight to prevent any loose connections.
Check the Connection: After installation, perform a visual and electrical inspection to ensure the connection is solid and there are no issues such as corrosion or loose connections.
Bimetal lugs are a vital component in ensuring the efficiency and safety of electrical systems that involve different metals, such as copper and aluminum. They provide solutions to the challenges of corrosion, thermal expansion, and electrical resistance, making them indispensable for a wide range of industries. By understanding their benefits, types, and proper installation, electrical engineers and technicians can ensure that their systems remain reliable and safe.
1. Can bimetal lugs be used for high-voltage systems?
Yes, certain types of bimetal lugs are designed for high-voltage systems, especially the heavy-duty and tapered variants. It’s important to choose a lug that matches the voltage and current rating for your specific application.
2. How do you prevent corrosion when using bimetal lugs?
Bimetal lugs are designed to prevent corrosion by using a copper terminal and an aluminum body that are bonded in a way that minimizes galvanic corrosion. Proper installation and maintenance also play a role in preventing issues over time.
3. Are bimetal lugs cost-effective compared to copper lugs?
Yes, bimetal lugs are generally more affordable than all-copper lugs, as aluminum is less expensive than copper. However, they still offer the same high level of electrical conductivity at a more cost-effective price point.
4. What industries use bimetal lugs the most?
Bimetal lugs are commonly used in power distribution, telecommunications, renewable energy systems (such as solar installations), and industrial systems where copper and aluminum cables need to be connected.
