In electrical installations, ensuring the proper connection and integration of different materials is essential to maintaining system efficiency and longevity. A bimetallic clamp plays a critical role in this context. It is designed to connect cables or wires made from two different metals, such as copper and aluminum, which have varying properties. When used correctly, these clamps help create a secure and stable electrical connection, preventing issues like corrosion, electrical arcing, and mechanical failure.
This article will explore the primary functions of bimetallic clamps, focusing on their importance in electrical systems, and how they address specific challenges. We will also discuss the related component, the Bimetal Cable Lug, and its connection to bimetallic clamps.
A bimetallic clamp is designed to securely join electrical components made of two different metals, typically copper and aluminum. These metals have different thermal and electrical conductivities, which can present challenges when trying to achieve a reliable and durable connection.
Copper: Known for its excellent electrical conductivity, copper is commonly used in wiring systems. However, it can be prone to corrosion when exposed to environmental factors, especially when paired with dissimilar metals.
Aluminum: While more cost-effective, aluminum has a higher thermal expansion rate and lower electrical conductivity than copper, making it susceptible to wear and oxidation, which can affect performance.
The bimetallic clamp solves the issue of connecting these two metals by utilizing a conductive material that can handle both the physical differences and the electrical requirements.
Bimetallic clamps are used in a variety of electrical applications, from commercial buildings to power stations, ensuring proper connections between copper and aluminum conductors. Here are some key applications:
One of the primary uses of bimetallic clamps is to connect copper and aluminum cables. This is common in systems where copper wiring is used in some areas, and aluminum is used in others. The clamp ensures a stable connection without the risk of galvanic corrosion that can occur when dissimilar metals touch directly.
| Material | Properties |
|---|---|
| Copper | Excellent electrical conductivity, resistant to corrosion, but more expensive. |
| Aluminum | Cost-effective, lightweight, prone to oxidation, and higher thermal expansion rate compared to copper. |
When copper and aluminum are connected without the proper intermediary material, corrosion can occur due to the different electrochemical potentials of the two metals. Bimetallic clamps often incorporate a layer of conductive material to prevent galvanic corrosion, which can degrade the performance of electrical systems over time.
In power distribution systems, bimetallic clamps serve an essential function in ensuring that electrical connections between cables made of copper and aluminum remain intact and functional.
In high-voltage applications, power lines often use aluminum because of its lightweight properties. However, the junctions where aluminum conductors meet other materials, such as copper, require bimetallic clamps to prevent voltage fluctuations and improve the integrity of the connection. These clamps help withstand the immense pressure and electrical load of high-voltage lines.
Another important feature of bimetallic clamps is their ability to reduce electrical resistance at the connection points. By ensuring that the copper and aluminum wires are securely connected, the clamp minimizes the potential for heat buildup and resistance, both of which can lead to system inefficiencies or failures.
| Function | Benefit |
|---|---|
| Prevents Galvanic Corrosion | Avoids degradation of metal due to electrochemical reactions. |
| Reduces Electrical Resistance | Ensures a stable connection, reducing heat buildup. |
Loose connections in electrical systems can lead to arcing, which can cause electrical fires, equipment damage, or even system failure. Bimetallic clamps provide a tight, stable grip on both copper and aluminum conductors, minimizing the risk of loose connections and preventing safety hazards.
In areas with extreme weather conditions or fluctuating temperatures, materials expand and contract. Bimetallic clamps are engineered to accommodate these changes without losing their grip, improving the long-term durability of electrical systems. This makes them ideal for outdoor applications, including power distribution and industrial installations.

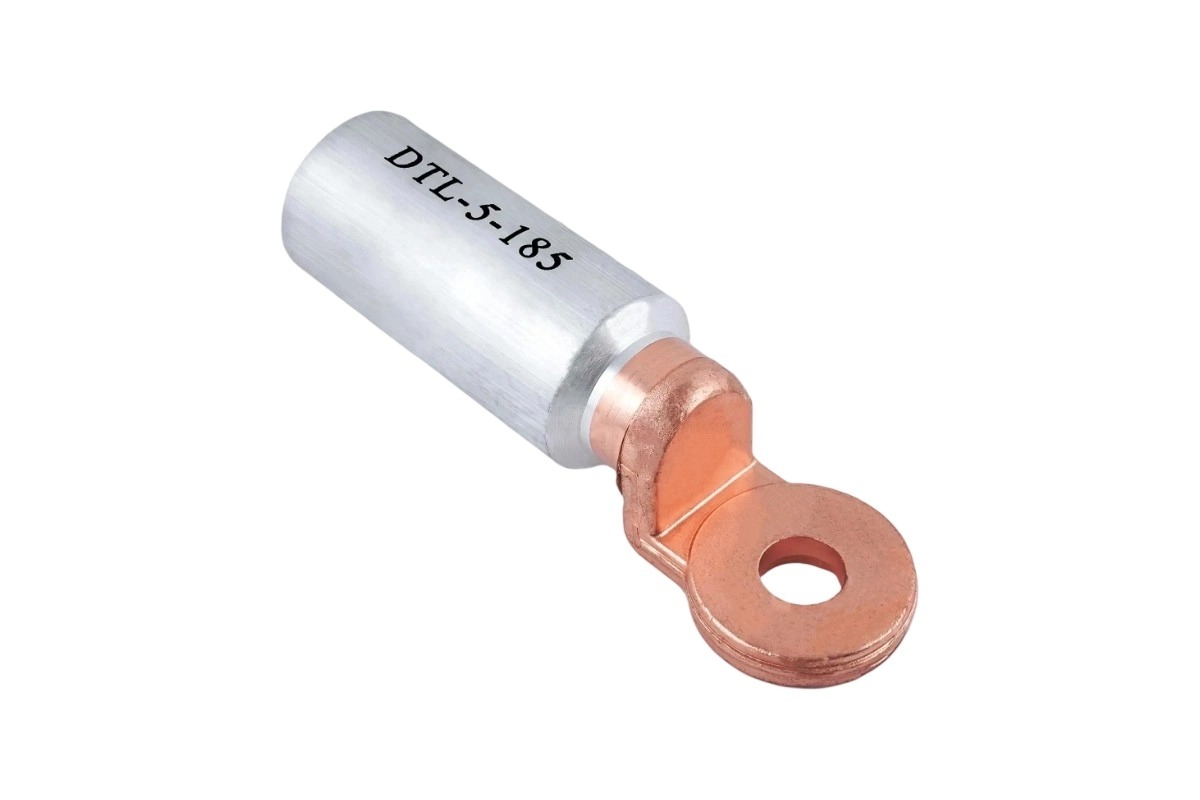

The Bimetal Cable Lug is a closely related component to the bimetallic clamp. Like bimetallic clamps, bimetal cable lugs are used to connect copper and aluminum cables in electrical systems, ensuring secure and reliable connections. These lugs are typically used in environments where high electrical currents are involved.
Although both components serve similar purposes in connecting copper and aluminum conductors, they have different designs and applications:
Bimetallic Clamps are often used in the middle of electrical systems where conductors meet. They are designed to hold the conductors tightly together to ensure a stable electrical connection.
Bimetal Cable Lugs are more commonly used at the ends of conductors to ensure that the cable is securely attached to connectors, switches, or circuit breakers.
Choosing between bimetallic clamps and bimetal cable lugs depends on the application. In general:
Use bimetallic clamps for inline connections where copper and aluminum conductors need to be joined together.
Use bimetal cable lugs for terminal connections where conductors are attached to electrical equipment.
Bimetallic clamps are critical components in modern electrical installations, providing reliable and long-lasting connections between copper and aluminum conductors. Their ability to prevent corrosion, reduce electrical resistance, and enhance durability makes them indispensable in industries ranging from power distribution to commercial buildings. When used alongside bimetal cable lugs, they ensure a seamless, efficient, and safe electrical system.
1. Why is it important to use a bimetallic clamp in electrical systems?
A bimetallic clamp ensures a secure and stable connection between copper and aluminum conductors, preventing galvanic corrosion and minimizing the risk of electrical failures.
2. Can I use a standard clamp for copper and aluminum connections?
Standard clamps are not designed to handle the different properties of copper and aluminum, and can lead to poor connections and corrosion. A bimetallic clamp is specifically designed to manage the differences between these metals.
3. Where are bimetallic clamps most commonly used?
Bimetallic clamps are used in high-voltage power lines, industrial electrical systems, and commercial installations where copper and aluminum cables need to be joined.
4. Are bimetallic clamps expensive?
While bimetallic clamps may be more expensive than standard clamps, their durability and ability to prevent costly issues like corrosion and electrical failure make them a worthwhile investment in the long term.
5. How do bimetallic clamps prevent galvanic corrosion?
Bimetallic clamps are designed with materials that prevent direct contact between copper and aluminum, thus eliminating the electrochemical reaction that leads to corrosion.
