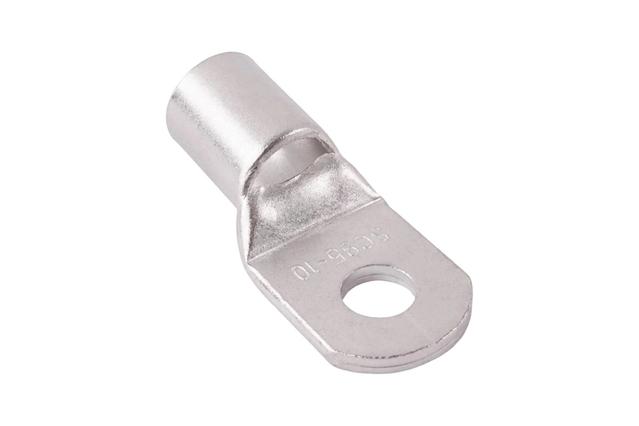

When you pick a cable lug, you want it to work well. You look for things that make it safe and strong. The material should be good. It should be made carefully. The design should be smart. It should have trusted certification. It should work well and be easy to put in. These things help keep your electrical systems safe. They help your systems last longer. You want your cable lug to be safe. You want it to work well and last a long time. Mingxu is different because it has many types. It also follows important rules.
Core Feature | Impact on Safety and Durability |
|---|---|
Material Quality | Good materials make it safer and stronger. |
Precision | Careful making means fewer problems. |
Certification | Following rules helps it last longer. |
Pick cable lugs made with good materials like copper. This helps electricity flow better and makes them last longer. - Check for marks like CE, IEC, and ISO on cable lugs. These marks show the lugs are safe and work well. - Choose the right barrel length for your wire. This helps make a strong and safe connection. - Look for cable lugs with inspection holes. These holes help you check the connection and keep it safe. - Always use the right cable lug for your job. This helps things work better and stops electrical problems.
When picking cable lug terminals, check what they are made of. The right material helps your system work better and last longer. Most cable lug terminals use copper, aluminum, or both together. Each material is good for different jobs.
ConductivityYou want cable lug terminals that carry electricity well. Copper works best for this. It lets electricity move easily with little resistance. Aluminum lugs also work, but not as well as copper. Tin-plated copper lugs protect against damage and still let electricity flow well. Here is a table to help you compare:
Material | Electrical Conductivity |
|---|---|
Copper | Excellent (100% IACS) |
Aluminum | Good (61% IACS) |
Tin-Plated Copper | Enhanced corrosion resistance |
If you want the best conductivity, choose copper lugs. Aluminum lugs are lighter and cost less, but may not work as well.
Cable lug terminals often face tough places. You need materials that can handle water, chemicals, and temperature changes. Copper does not rust easily, especially with a tin coating. Aluminum lugs need careful installation to stop rust. Bimetallic lugs use copper and aluminum to stop rust between metals. Tests show tin-plated copper and bimetallic lugs last longer in harsh places.
Tin-plated copper lugs do not rust and work well in wet or salty air.
Aluminum lugs need extra care to stop rust, especially in damp places.
You want cable lug terminals that last a long time. The material you pick affects how strong your connection is. Copper is strong and can bend and pull without breaking. Aluminum lugs are light and strong, but need to be installed right. In tough places, the right material keeps your system safe.
Copper lugs handle stress and heat well.
Aluminum lugs work best if you install them the right way.

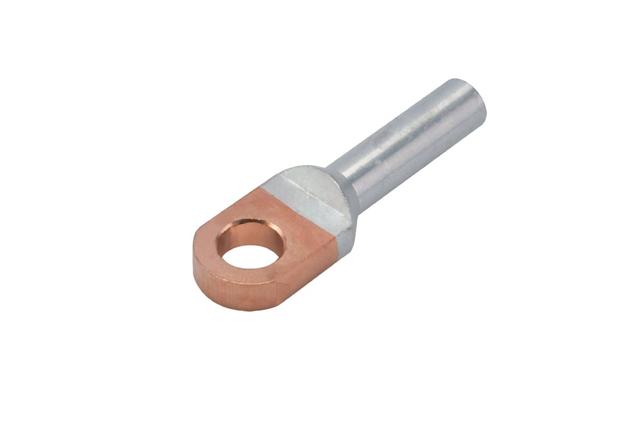

Bimetallic lugs give you the good parts of copper and aluminum.
Tip: Always match the cable lug material to your wire and where you use it. This helps your cable lug terminals work well and last longer.
When you pick a good cable lug, every part should fit right. Precision engineering means the maker checks every small detail. The holes and barrels must be the right size. The surfaces need to match the measurements. This helps you get a tight fit and a strong connection.
A smooth finish keeps sharp edges from hurting wires. It also makes putting it in easier. Strong construction lets the lug handle stress, heat, and shaking. You do not want a cable lug that bends or snaps when used. You want one that stays strong even in hard places.
A cable lug made with care gives you peace of mind. You know your connection will last and stay safe.
Quality control is what makes a product reliable. Makers use many steps to make sure each cable lug is good. These steps help find problems early and keep bad ones away from you.
Here are some common quality control steps:
Quality Control Process | Description |
|---|---|
Quality Assurance Protocols | Makes sure the product follows important rules with careful testing and checking. |
Continuous Improvement Process | Reviews how things are made and listens to feedback to make products better. |
You might see these steps happen:
Inbound inspection checks wires and parts before making.
Prototyping makes test products to try out the design.
In-process testing checks products during different steps.
Final inspection checks each cable lug before it ships.
Makers also use special tests to make sure your cable lug works:
Continuity testing checks if electricity flows without stopping.
Dimensional gauging checks if the size is right.
Failure probing finds weak spots.
Hi-pot testing checks how strong the insulation is.
Press force monitoring checks if the right force is used.
Makers can find and fix mistakes by testing wiring harnesses in many ways, like checking parts, making samples, testing during steps, and final checks.
You should always pick cable lugs with marks like CE, IEC, and ISO. These show the product passed hard tests for safety and how well it works. When you choose a cable lug with these marks, you know experts trust it all over the world.

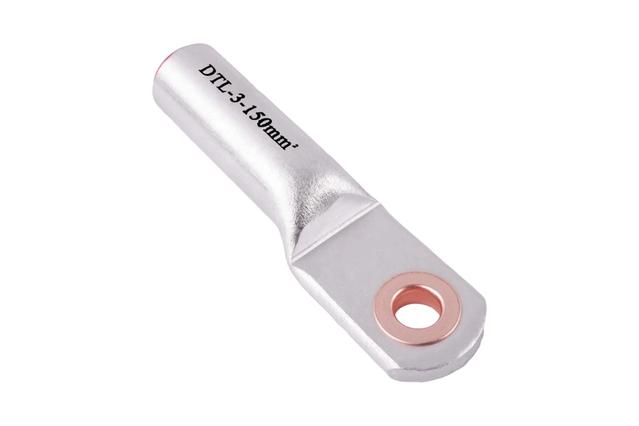

When you pick cable lug terminals, look at the design. Good design helps you make a safe and strong connection. There are many shapes and sizes. Each one is made for a special job.
Barrel length is where you put the wire in the cable lug. A longer barrel gives more space for the wire. This helps you crimp better and hold the wire tight. Pick the barrel length that fits your wire and job. For tough jobs, use a longer barrel for extra strength. For small jobs, a short barrel may be enough.
Inspection holes are small openings in the cable terminal lug. These holes let you check if the wire is inside before crimping. You can see the wire through the hole. This helps you make sure the connection is complete. It is important because it stops mistakes. If the wire is not all the way in, you get a weak spot. Weak spots can cause safety problems later.
You must match cable lug terminals to the wire size and type. Using the wrong size can cause problems:
Bad electrical flow can make voltage drop and work less well.
Too much heat from resistance can hurt wire covers and terminals. This can be a fire risk.
Connections can break if they do not fit right. This can hurt your electrical system.
You also need to pick the right shape for your job. Here is a table to help you compare some common types:
Cable Lug Type | Application Suitability | Safety Considerations |
|---|---|---|
Ring | Good for bolted connections | Gives a safe connection |
Pin | Good for plug-in connections | Fits well and lowers risk of coming loose |
Spade | Quick to disconnect | Easy to remove and still safe |
Always match the cable lug design to your wires. This helps you get the best safety and performance.
When you choose a cable lug, you want to know it meets trusted industry rules. These rules help keep your electrical systems safe and reliable. Companies follow standards like CE, IEC, and ISO to show they care about quality. You can trust products that meet these standards because they go through strict checks.
ISO 9001 makes sure the company uses the same good steps every time it makes a product.
CE and UL marks show the cable lug meets safety and performance needs.
Good materials help the cable lug last longer and work better.
You can look for these marks on the package or in the product details. They tell you the cable lug passed important tests and follows global rules.
Certifications are not just labels. They mean the cable lug has passed many tests. These tests check if the product is safe, strong, and ready for real use. You can feel confident when you see these marks.
Electrical tests check if electricity flows well and if the cable lug can handle high voltage.
Mechanical tests pull and bend the cable lug to see if it stays strong.
Environmental tests put the cable lug in hot, cold, wet, and dirty places to see if it still works.
IP ratings, like IP66 or IP67, show the cable lug can handle dust and water, which is important for outdoor jobs.
Tip: Always check for certifications before you buy. Certified cable lugs help you build safer and longer-lasting electrical systems.
You want cable lug terminals to hold wires tight. A snug fit keeps your electrical connection safe. There are different types for different jobs. Each type helps make sure the connection is strong. The table below shows how each type helps:
Feature | Description |
|---|---|
Secure Connection | Holds wires tightly for steady current flow. |
Improved Safety | Covers wires to lower the risk of accidents or fires. |
Ring Type Lugs | Use bolts for a strong, lasting hold in industrial settings. |
Pin Type Lugs | Fit into terminal blocks for small or flexible wires. |
Fork Type Lugs | U-shape makes quick changes easy and safe. |
Compression Lugs | Crimping forms a permanent bond for heavy-duty use. |
Battery Lugs | Built for vehicles, resist shaking and movement. |
A tight cable end stops wires from coming loose. This keeps your system working well. Picking the right cable lug terminal lowers the chance of overheating or danger.
Cable lug terminals need to work in hard places. They must handle shaking, heat, cold, and heavy weight. Strong cable lug terminals stay in place even if cables move. Vibration resistance is important in cars and power plants. Good cable lug terminals do not loosen over time.
Feature | Description |
|---|---|
High Mechanical Strength | Handles stress from heavy cables and strong currents. |
Vibration Resistance | Stays tight even when equipment shakes or moves. |
Quality cable lug terminals can handle hot and cold. They do not break or change shape when it gets warm or cold. This means your connection works well anywhere.
It is important that cable lug terminals are easy to use. You want to save time and avoid mistakes. Look for these helpful features:
Clear size markings help you pick the right one fast.
The right size gives a tight and safe connection.
Ring cable lugs are simple and quick to put in.
Good materials like copper help electricity flow and stop rust.
The round shape of ring lugs makes them strong and easy to bolt.
You also need cable lug terminals that fit your wire size. This stops loose wires and overheating. Choosing cable lug terminals with these features makes your job safer and easier. It also helps your connection last longer.
Tip: Always check your work after you finish. A quick look can find loose wires or rust before they cause problems.
When picking a cable lug, look for good material. Make sure it is made well and has a smart design. Check that it has trusted certification. It should be easy to put in. These things help keep your wires safe and working right.
Certified cable lugs go through tough tests. They work safely even when things get hard. Following safety rules helps keep people and things safe.
Quick Checklist:
Look for certification marks.
Make sure the lug fits your wire and job.
Choose strong materials.
Find features that make it easy to use.
Using certified, strong lugs helps you stay safe. It also saves you money by stopping problems.
