In electrical and industrial systems, connecting pipes play a critical role in ensuring that electrical components such as cables and busbars are securely and efficiently connected. These pipes ensure that electrical current flows smoothly and that the system operates with optimal performance. However, maintaining and inspecting these pipes is essential for prolonging their lifespan, preventing failures, and ensuring the overall safety of the electrical system.
This article will guide you through the process of maintaining and inspecting connecting pipes for maximum performance. We will cover key inspection techniques, preventive maintenance tips, and best practices for both copper and aluminum connecting pipes. By following these practices, you can reduce downtime, improve efficiency, and avoid costly repairs.

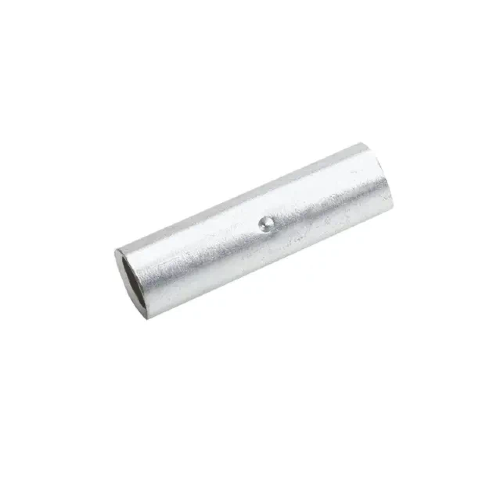

Connecting pipes, also referred to as crimp pipes or lugs, are metallic connectors that join electrical cables to other components, such as busbars or terminals, in an electrical system. These pipes ensure that electricity flows without resistance or loss of efficiency. The material and design of connecting pipes are critical for maintaining the system’s performance and safety.
The primary function of connecting pipes is to create a secure, conductive connection between electrical components. They prevent loose connections, which could lead to energy loss, overheating, or even failure of the electrical system. Connecting pipes are typically made of materials such as copper or aluminum, each with its own set of advantages based on the specific needs of the system.
Maintaining and inspecting connecting pipes is essential to ensure the efficiency, reliability, and safety of an electrical system. Without regular care, issues such as corrosion, loose connections, and wear can compromise the performance of the system. Additionally, poorly maintained pipes can lead to energy loss, overheating, and electrical failure, all of which can result in costly repairs or downtime.
Neglecting regular inspection and maintenance of connecting pipes can lead to:
Increased energy loss due to poor conductivity.
Higher operational costs because of frequent repairs or replacements.
Safety hazards, such as overheating or fire risks, due to faulty or loose connections.
System downtime caused by unexpected failures that disrupt operations.
Regular inspection of connecting pipes involves both visual inspections and electrical testing. Below are the steps to properly inspect connecting pipes.
The first step in inspecting connecting pipes is a visual check. Look for the following:
Corrosion or Oxidation: Check for any signs of rust, corrosion, or oxidization, especially in copper pipes. Copper pipes may tarnish naturally, but excessive corrosion can impair conductivity.
Physical Damage: Inspect the pipes for cracks, dents, or bends that could compromise the integrity of the connection. Any physical damage could lead to failure under high electrical loads.
Loose Connections: Ensure the pipe is tightly secured and that there are no loose connections. Loose connections can cause resistance and overheating.
Electrical testing is a crucial part of the inspection process to ensure optimal performance. Use the following methods:
Test Type | Purpose | Method |
Continuity Test | Check for electrical continuity across the connection. | Use a multimeter to check if current flows freely through the pipe. |
Resistance Measurement | Detect areas with high resistance that can cause energy loss. | Measure the resistance across the pipe using a multimeter. |
Insulation Resistance Test | Ensure that the pipe’s insulation is intact and there are no leaks. | Use a megger or insulation resistance tester to measure. |
Continuity Testing: To ensure that electricity flows efficiently, test for continuity across each pipe. If continuity is disrupted, there may be internal damage that needs to be addressed.
Resistance Measurement: High resistance in a connection is a sign of wear or corrosion. Use a multimeter to measure the resistance across the pipe. If the resistance is too high, it can cause overheating and reduce system efficiency.
Insulation Resistance Testing: Insulation breakdown can cause electrical leaks. Perform insulation resistance tests to ensure that the insulation is intact and functioning correctly.
Proper alignment is crucial for maintaining good electrical connections. During the inspection, verify that:
The pipe is properly aligned with the cable or terminal.
There is no gap between the cable and the pipe, as this can result in poor electrical contact.
The crimping or connection is solid, ensuring the pipe is securely attached to the cable or component.
Proper cleaning and lubrication of connecting pipes can prevent the buildup of dirt, corrosion, and other debris that could affect their performance.
Cleaning: For copper and aluminum pipes, use a soft cloth or brush to remove any accumulated dust or debris. In highly corrosive environments, cleaning should be done more frequently.
Lubrication: Applying an appropriate lubricant can reduce friction, which helps minimize wear and tear on the pipes. Be sure to use lubricants that are suitable for electrical systems, as some oils or greases could interfere with conductivity.
Copper: While copper has inherent corrosion resistance, applying a protective coating can further prevent oxidation. If the pipe is exposed to saltwater or other corrosive elements, a protective coating or anti-corrosion paste should be applied.
Aluminum: Aluminum requires additional protective measures to prevent oxidation. Consider using anodization or a protective coating to preserve the material and maintain its conductivity.
Over time, connecting pipes can wear out due to mechanical stress, corrosion, or damage. It’s essential to replace worn-out or damaged components as soon as possible to prevent failures.
Signs to replace: If the pipe shows signs of severe corrosion, physical damage, or poor conductivity, it should be replaced.
Replacement intervals: Even if the pipe doesn’t show visible signs of damage, it’s a good practice to replace connecting pipes at regular intervals, particularly in high-demand systems.
Copper is naturally resistant to corrosion, but it can still tarnish over time. To keep copper pipes in optimal condition:
Maintenance Action | Copper Pipe Maintenance |
Regular Cleaning | Use a non-abrasive cloth to wipe down the surface and remove any dirt or debris. |
Protective Coatings | Apply a protective coating to prevent tarnishing, especially in outdoor or marine environments. |
Check for Corrosion | Regularly inspect for signs of corrosion. If found, use a corrosion inhibitor to treat the pipe. |
Aluminum pipes are lighter but more susceptible to oxidation. To ensure they remain effective:
Maintenance Action | Aluminum Pipe Maintenance |
Remove Oxidation | Use a mild abrasive to remove oxidation if it forms. An anodized layer is a good long-term solution. |
Apply Protective Coatings | Apply protective coatings like paint or anodization to prevent further oxidation. |
Clean Regularly | Use a soft brush to clean the surface and remove dust or debris. |
Copper: Ensure copper pipes are not exposed to extreme temperatures or mechanical stress during installation. Handle them carefully to avoid bending or cracking.
Aluminum: Since aluminum is more prone to damage, ensure it is properly reinforced during installation. Avoid installing aluminum pipes in high-stress areas without proper support.
While regular inspections and maintenance can be handled by your internal team, there are times when it’s necessary to seek professional help:
Difficult-to-diagnose issues: If problems such as intermittent failures, electrical spikes, or poor conductivity persist despite your best efforts, it may be time for a professional inspection.
Specialized equipment: Some testing and maintenance procedures, such as high-voltage testing or infrared thermography, require specialized equipment and expertise.
Safety concerns: If you suspect that there may be issues with the integrity of your electrical system that could pose a safety hazard, it is essential to call a licensed professional immediately.
Maintaining and inspecting connecting pipes is crucial for ensuring the optimal performance of your electrical systems. Regular inspections, cleaning, and preventive maintenance not only prolong the life of your connecting pipes but also enhance their performance, reducing the risk of costly failures. Whether you are using copper or aluminum pipes, following best practices for upkeep is key to maximizing efficiency and ensuring safety.
At Wenzhou Mingxu International Trade Co., Ltd., we understand the importance of high-quality connecting pipes for long-term system reliability. By choosing our premium copper and aluminum connecting pipes, you ensure the efficiency and durability of your electrical systems. We offer expert advice, top-notch products, and tailored solutions to meet your unique needs.
Take proactive steps today to maintain your electrical system’s health. Contact us to learn more about how our products and services can support your projects, ensuring reliable and energy-efficient performance for years to come. We are here to help you with all your connecting pipe requirements.
Q1: How often should I inspect my connecting pipes?
It is recommended to inspect connecting pipes at least once a year. However, in critical systems or harsh environments, more frequent inspections are advisable to catch early signs of wear or damage.
Q2: Can I clean and maintain connecting pipes myself?
Yes, basic cleaning and visual inspections can be done by your team. For more technical testing and replacement of damaged parts, you may need to consult with a professional.
Q3: How can I prevent corrosion in connecting pipes?
Apply protective coatings to both copper and aluminum pipes to prevent corrosion. Regularly clean the pipes to remove dust and corrosive substances that could accelerate deterioration.
Q4: What should I look for during a visual inspection?
Look for corrosion, physical damage, loose connections, and oxidation. Any signs of wear or irregularities should be addressed promptly.
Q5: When should I replace my connecting pipes?
Replace connecting pipes if they exhibit severe corrosion, electrical resistance issues, or physical damage that cannot be repaired. Proactive replacement reduces the risk of system failure.
