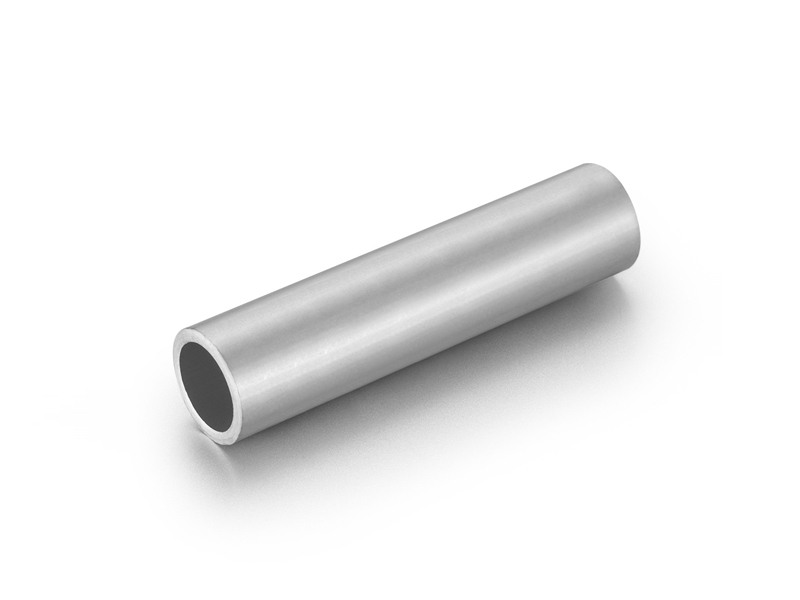

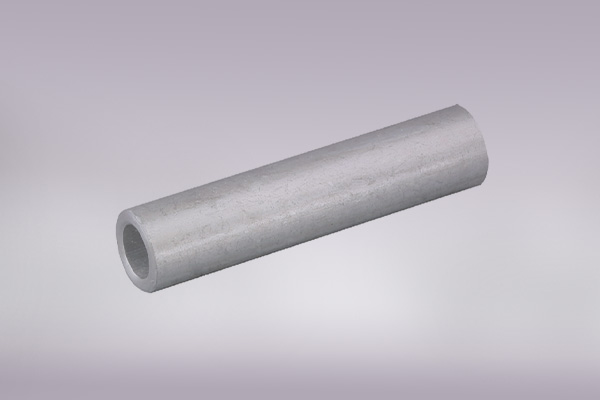

GL-1 aluminum connector tubes feature a fully open-through design for seamless connections between round and semi-round cables in power distribution systems. Crafted from high-strength 1060 aluminum with acid-cleaned surfaces, they resist corrosion and ensure long-term durability in harsh environments like industrial grids and renewable energy installations. Compatible with cable sizes from 16mm² to 400mm², these tubes enhance mechanical stability and reduce energy loss by 5-8% compared to conventional connectors. Rigorously tested for high-load applications, their lightweight yet robust construction simplifies installation while adhering to industry standards, making them ideal for efficient power transmission and cable management.
>> Aluminium Crimp Connector
Suitable for connectingthe circular wire and hemicycle wireindistribution equipment orpower supply cables
The barrels capped are flled withjoint compound toavoidoxidization
Material: AL≥99.5%

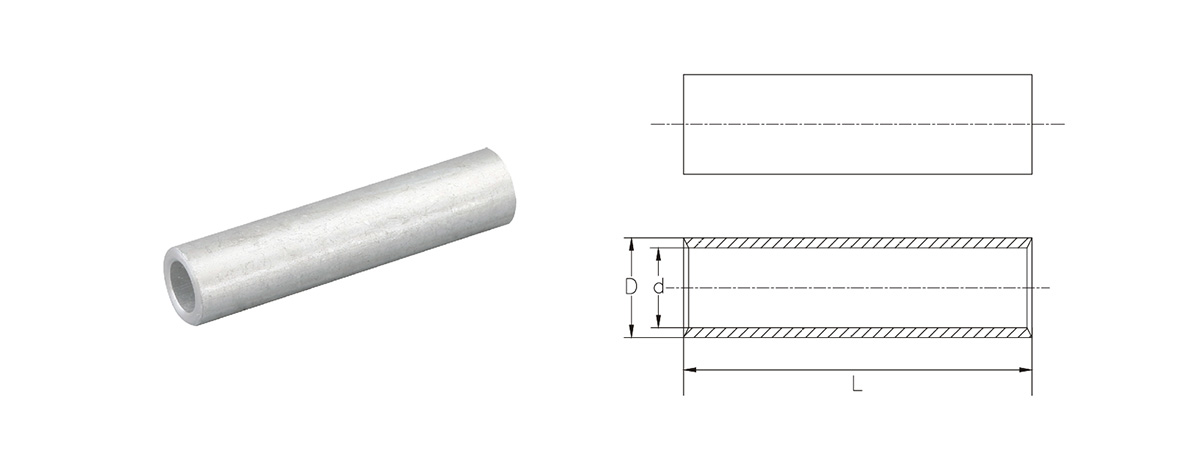

>> Product Specifications
| Item No. | D±0.5 | d±0.3 | L±2 | Package (pcs) | Gross weight (kg) |
| GL-1-10 | 8 | 5.0 | 53 | 1320 | 12.0 |
| GL-1-16 | 9 | 6.0 | 60 | 1200 | 13.0 |
| GL-1-25 | 11 | 7.5 | 62 | 720 | 13.0 |
| GL-1-35 | 12 | 8.5 | 66 | 600 | 13.0 |
| GL-1-50 | 15 | 11.0 | 72 | 480 | 15.0 |
| GL-1-70 | 17 | 12.4 | 82 | 300 | 11.5 |
| GL-1-95 | 19 | 14.0 | 86 | 240 | 13.0 |
| GL-1-120 | 21 | 15.6 | 92 | 180 | 14.0 |
| GL-1-150 | 23 | 17.6 | 96 | 120 | 12.0 |
| GL-1-185 | 25 | 19.4 | 103 | 120 | 12.0 |
| GL-1-240 | 27 | 21.0 | 113 | 60 | 9.0 |
| GL-1-300 | 32 | 24.0 | 125 | 60 | 11.0 |
| GL-1-400 | 37 | 27.0 | 150 | 48 | 10.0 |
