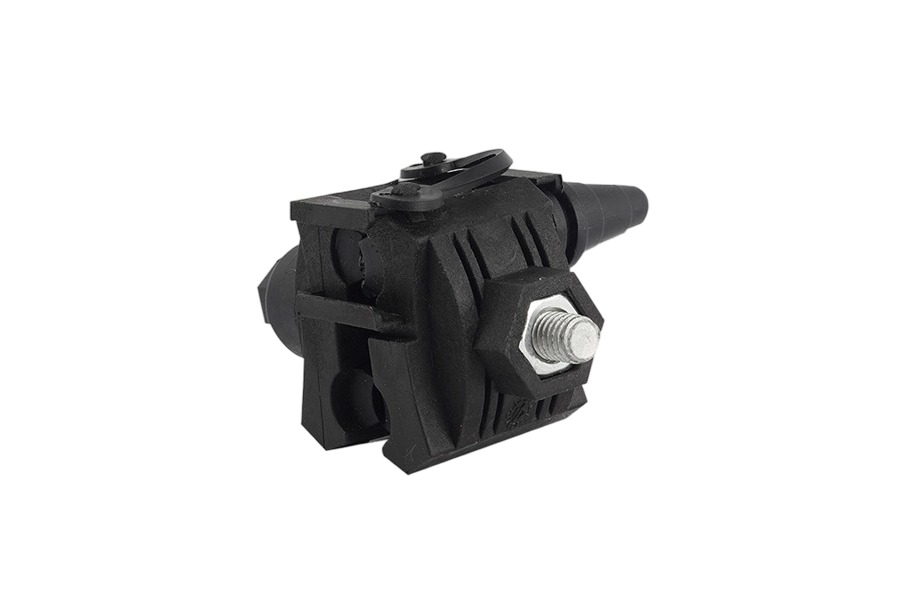

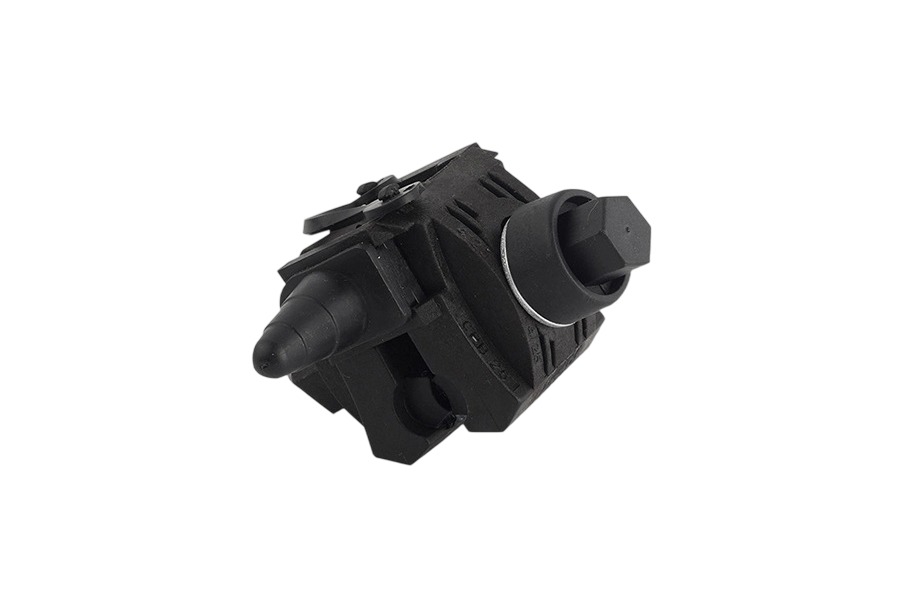

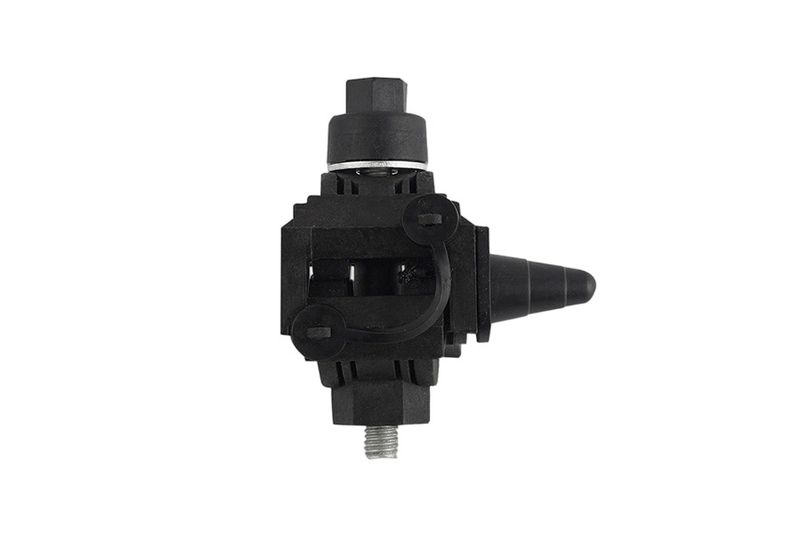

CPB Insulation Piercing Connectors
Engineered for universal LV-ABC cable connections, CPB connectors feature UV-stabilized polymer and fiberglass composite housing, delivering unmatched resistance to weathering, moisture, and corrosion. The precision-crafted blades, available in tin-plated copper or aluminum alloy, ensure seamless contact with both aluminum and copper stranded conductors without stripping insulation.
>> Key Advantages
Reliable Performance
Passes rigorous 6kV/1min underwater tests and salt spray/SO₂ corrosion validation (EN 50483-4, NFC 33-020 certified).
Stable contact resistance (<0.05mΩ) and low thermal rise (<30°C) even after 1,000+ load cycles.
Smart Installation
Torque-controlled shear-head bolts guarantee optimal piercing force, auto-shearing at preset tightness to prevent overcompression.
Compatible with live cables (up to 600V) at -20°C to +55°C installation temperatures.
Durability Assured
Self-sealing frame with dual-layer EPDM gaskets blocks water ingress (IP68-rated), extending cable lifespan by 30% in coastal or high-humidity environments.
Wide operating range: -55°C to +85°C, suitable for XLPE/PE/PVC-insulated cables per HD 626 standards.
Applications
Ideal for renewable energy grids, industrial power networks, and underground distribution systems requiring maintenance-free, waterproof connections.
>> Insulation Piercing Clamp
The CPCinsulation piarcing connectors are applicable for alltypes ofLV-ABC.
Had passed 8KV testunder water for 1 Mn.
Simpleinstaltion,small contactreslstance andlowtemperature riseof the clamp.The body materials are UV-reslstant.
Its self-seam frame is wetpoof,water proof,and anti-corrosive,which can prolong the usinglife ofinsulated lead and connector.
Standard:EN50483-4.NFC33-020,NFC 33-004
>> Product Specifications
| Item No. | Main wire section | Branch wire sectlon | Package (pcs) | Gross weight (kg) |
| CPC-1 | AL25-95 | AL2.5-95 | 200 | 21 |
| CPC-2 | 35 | 2.5-35 | 200 | 22 |
| CPC-3 | 70 | 2X(6-35) | 200 | 20 |
