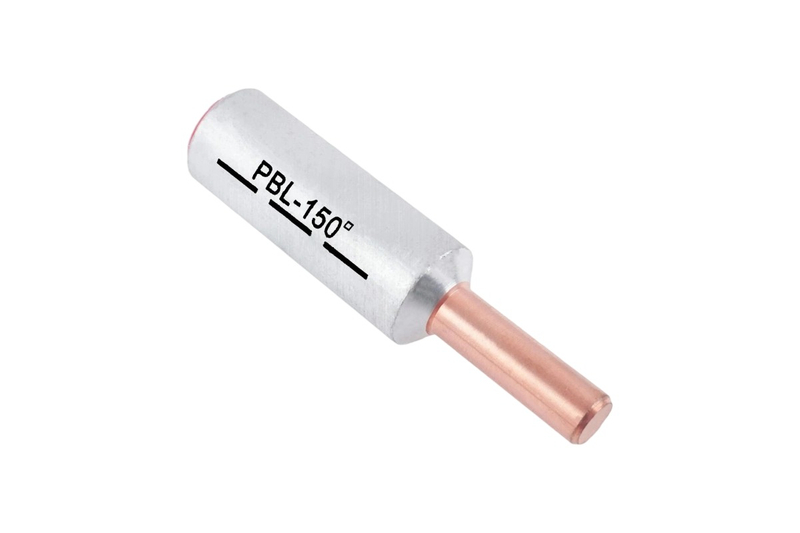

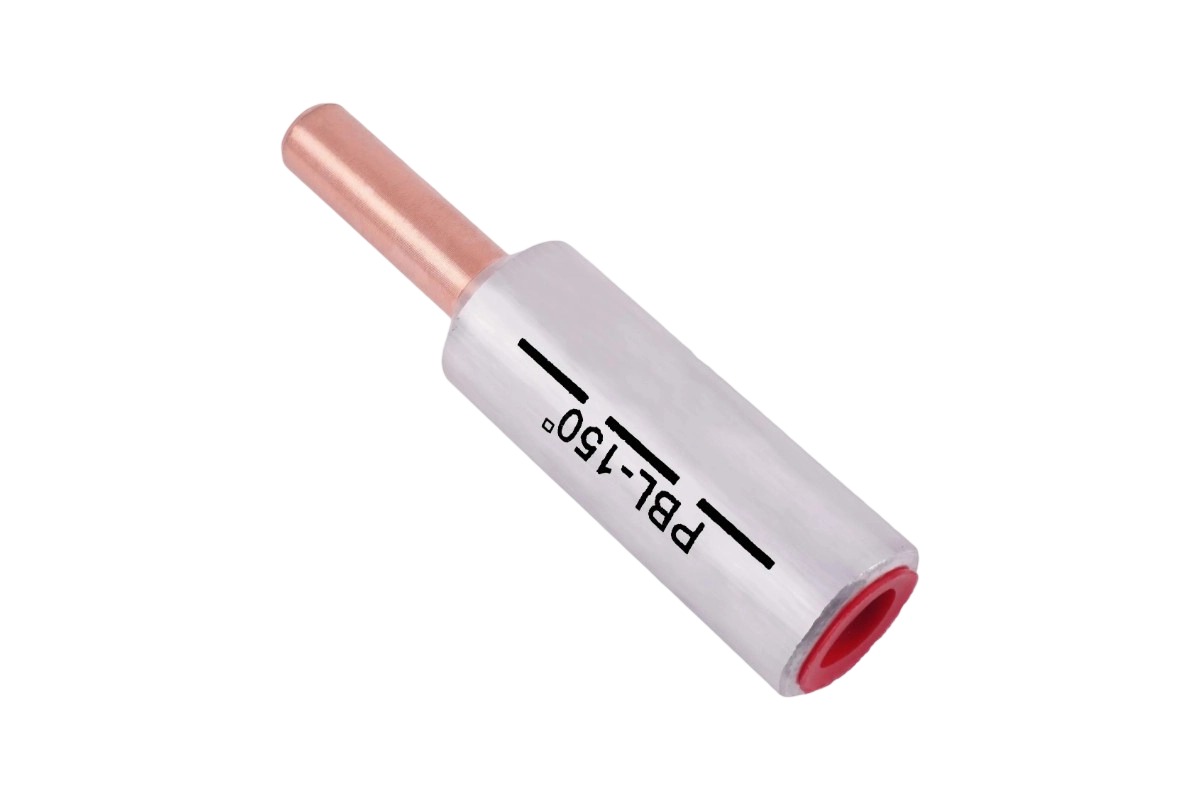

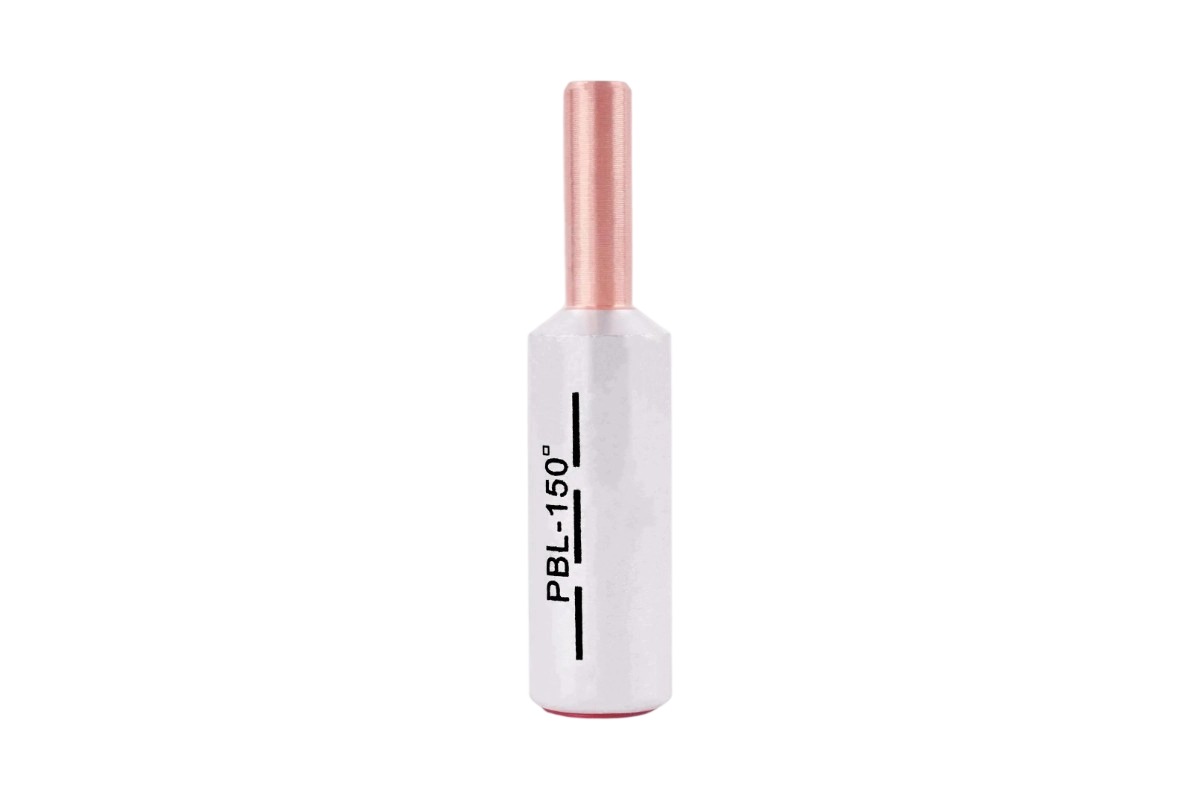

PBL Copper Aluminum Pin Type Terminals are designed for secure connections in non-tension aluminum cables, particularly for tight copper clamps. Utilizing advanced friction welding technology, these terminals ensure strong, reliable bonds. The aluminum barrel is filled with neutral grease and sealed with a cap, offering enhanced protection against corrosion. With a pre-rounded, fan-shaped conductor and high-quality materials (Cu ≥ 99.9%, Al ≥ 99.5%), they provide superior conductivity and durability for various industrial and electrical applications.
>> Copper Aluminum Pin Type Terminal
Suitable for screwing non-tension Alconnections in Cuclamps
Friction welded
Aluminium barrel is filed by neutralgrease and coveredby cap
Pre-rounded sector shapedconductors
Material:CU≥99.9%,AL≥99.5%
>> Product Specifications
| Item No. | d1±0.2 | D±0.2 | d2±0.2 | L1±1 | L±2 | Package (pcs) | Gross weight (kg) |
| DTL-7-16 | 6.3 | 12 | 6 | 20 | 58 | 1440 | 22 |
| DTL-7-25 | 7.1 | 12 | 6 | 20 | 58 | 1440 | 22 |
| DTL-7-35 | 8.5 | 14 | 7 | 22 | 71 | 840 | 20 |
| DTL-7-50 | 10.0 | 16 | 8 | 25 | 74 | 540 | 19 |
| DTL-7-70 | 11.5 | 18 | 10 | 30 | 87 | 360 | 21 |
| DTL-7-95 | 13.5 | 22 | 12 | 33 | 91 | 300 | 22 |
| DTL-7-120 | 15.0 | 23 | 12 | 38 | 98 | 240 | 21 |
| DTL-7-150 | 18.5 | 25 | 12 | 38 | 108 | 180 | 19 |
| DTL-7-185 | 19.0 | 27 | 14 | 40 | 118 | 120 | 20 |
| DTL-7-240 | 21.0 | 32 | 16 | 40 | 128 | 120 | 22 |
