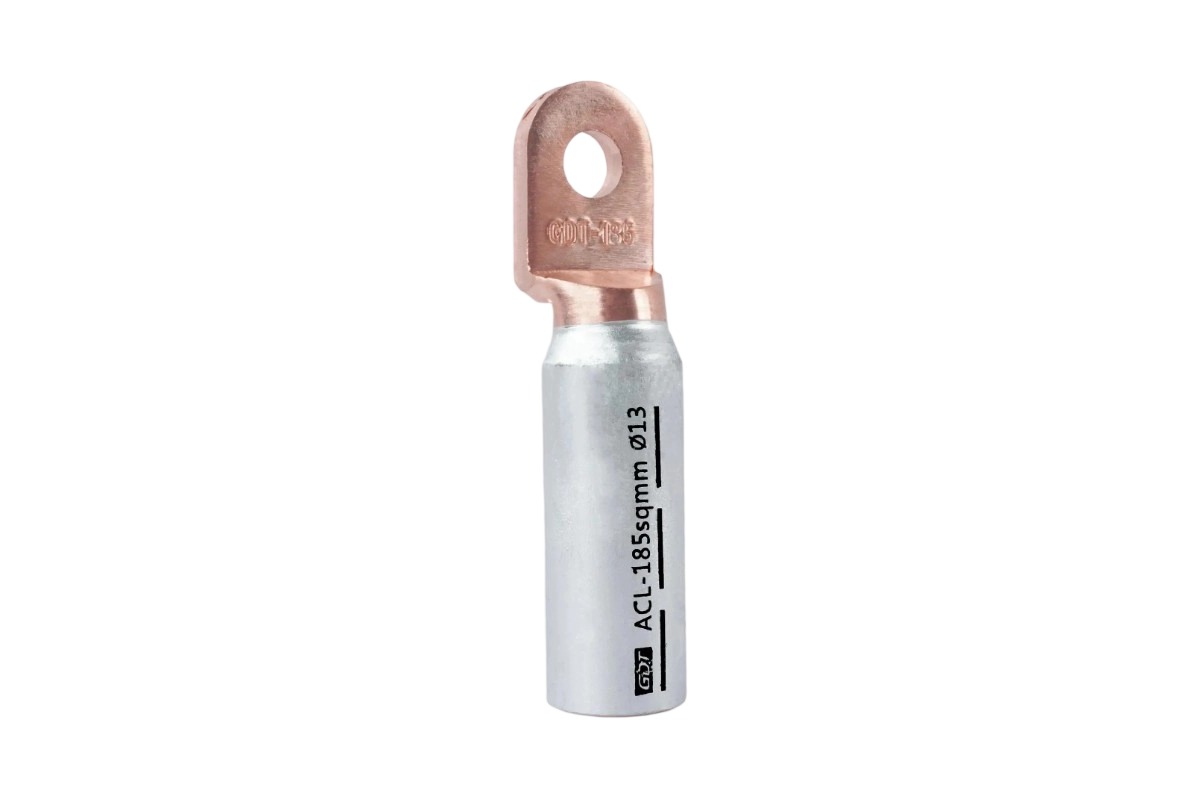

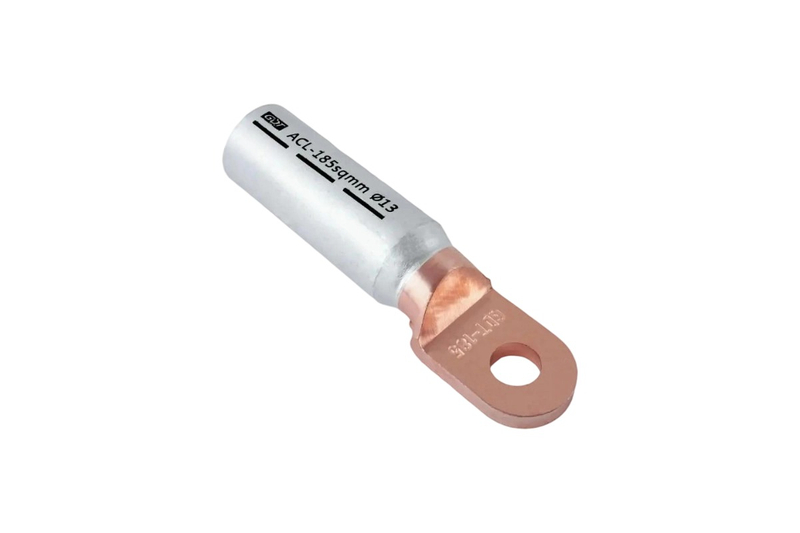

The ACL Copper-Aluminum Terminal integrates an arch-shaped copper palm (rear-square, front-rounded) to optimize torque distribution and mechanical stability in high-vibration systems, precision-bonding ≥99.9% T2 copper and ≥99.5% L3 aluminum via friction welding for zero galvanic corrosion. Pre filled conductive grease chambers and seals maintain ultra-low resistance in environments ranging from -40 ° C to 120 ° C, making them an ideal choice for circuit breakers, automated production lines, and coastal smart grids. Its design has been certified according to IEC 61238-1 and ISO 9001 standards. Compared to flat terminals, it reduces shear stress by 35% and has a reliable service life of up to 25 years.

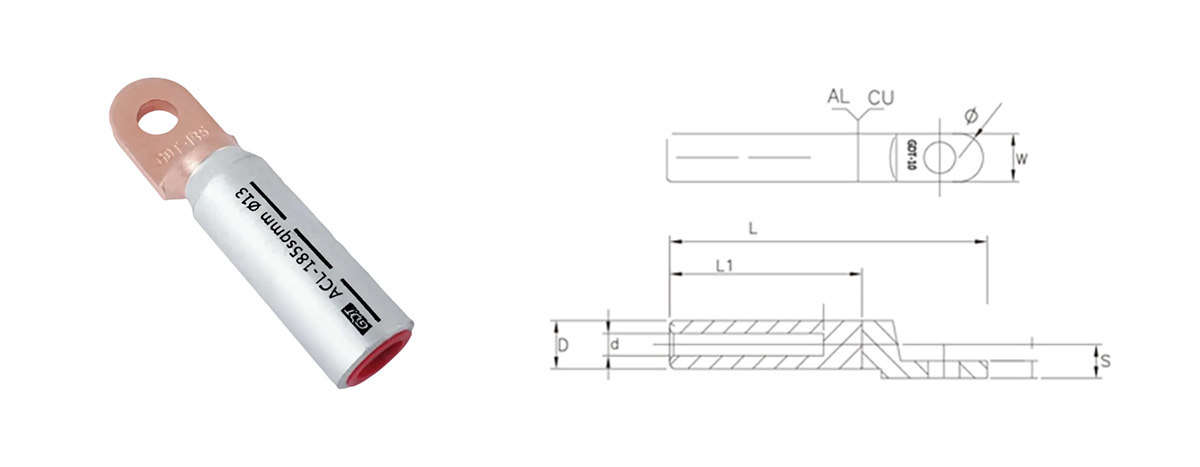

>> Product Specifications
| Item No. | D±0.2 | d±0.2 | L±2 | L1±2 | φ±0.3 | W±0.2 | S±0.2 |
| ACL-10 | φ10 | φ4.5 | 40 | 86 | 6.5 | 10 | 7 |
| ACL-16 | φ10 | φ5.5 | 40 | 66 | 6.5 | 10 | 7 |
| ACL-25 | φ12 | φ7 | 45 | 72 | 8.5 | 13 | 8 |
| ACL-35 | φ14 | φB.5 | 51 | 80 | 8.5 | 14 | 9 |
| ACL-50 | φ16 | φ9.5 | 87 | 54 | 8.5 | 16 | 10 |
| ACL-70 | φ18 | φ12 | 95 | 59 | 8.5 | 20 | 11 |
| ACL-95 | φ21 | φ13 | 02 | 62 | 0.5 | 20 | 12.5 |
| ACL-120 | φ23 | φ15 | 105 | 65 | 0.5 | 22 | 13.5 |
| ACL-150 | φ25 | φ16 | 112 | 67 | 0.5 | 25 | 14.5 |
| ACL-185 | φ27 | φ18 | 121 | 70 | 13 | 28 | 15.5 |
| ACL-240 | φ30 | φ20 | 124 | 73 | 13 | 30 | 17 |
| ACL-300 | φ34 | φ23 | 133 | 78 | 13 | 30 | 19 |
| ACL-400 | φ38 | φ26 | 142 | 83 | 13 | 30 | 21 |
