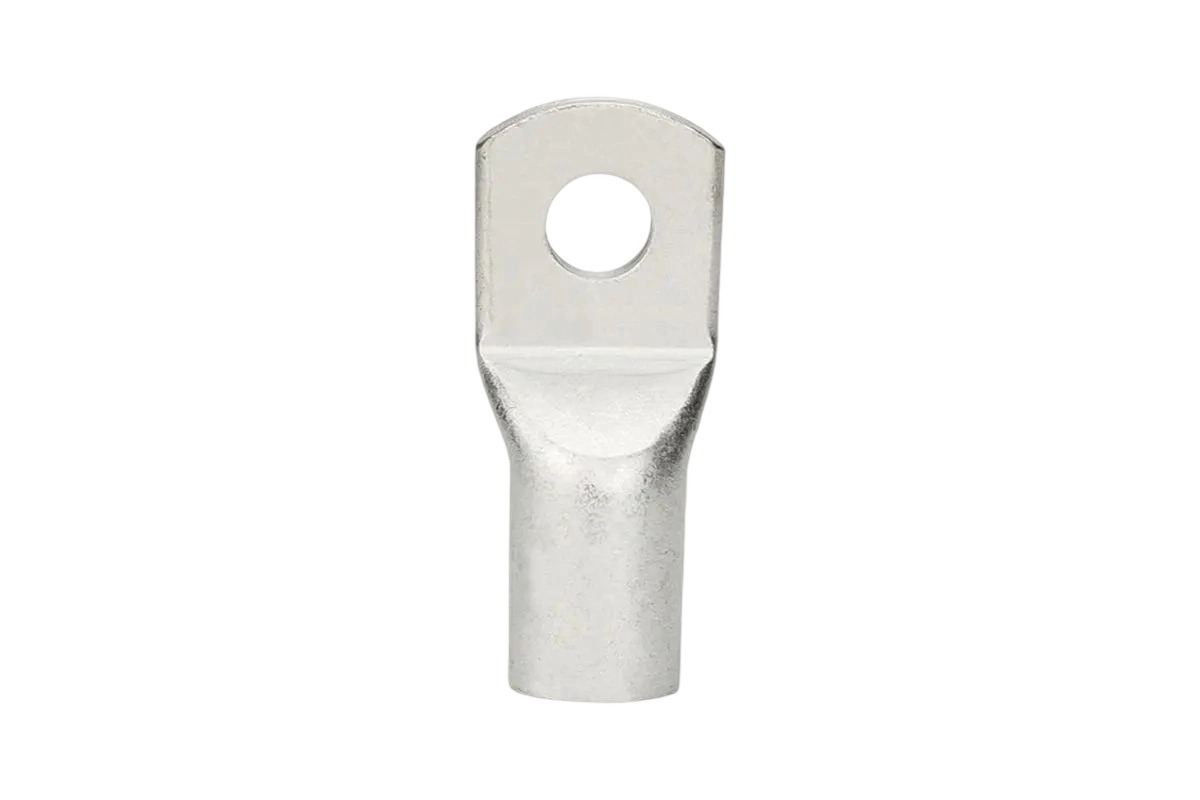

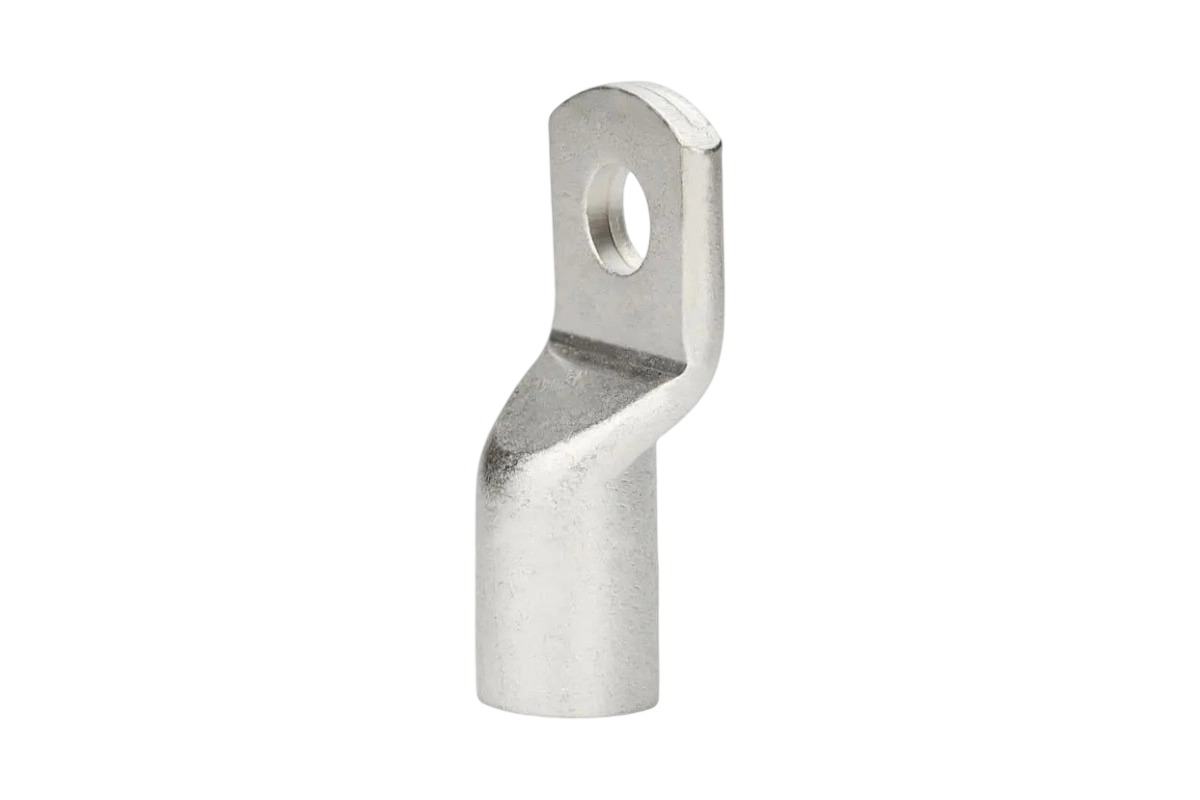

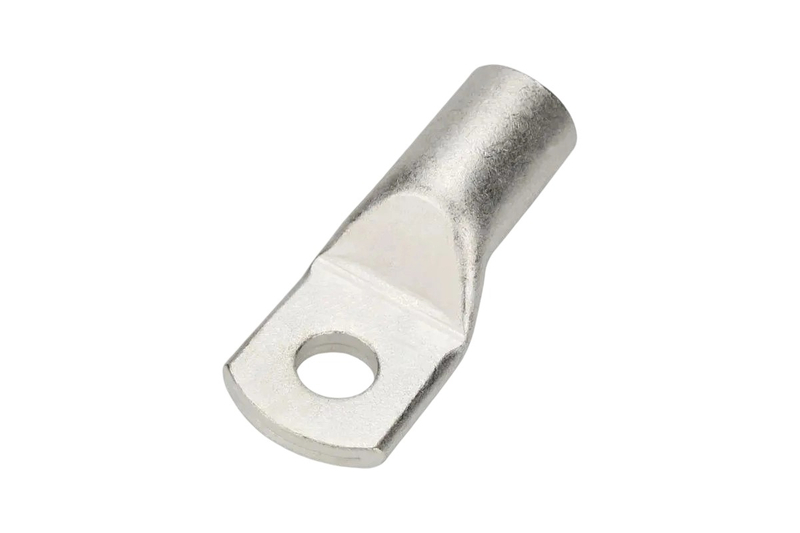

The AUS Copper Crimp Cable Terminal ensures precise electrical connections for medium-voltage systems, engineered with laser-etched crimp position markers on its barrel to eliminate installation errors and DIN 46235-compliant construction for reliable performance. Featuring electroplated tin surfaces to resist oxidation in humid or industrial environments, its forged T2 copper body (≥99.9% purity) maintains <10μΩ resistance while supporting conductors up to 400mm². Designed for switchgear, transformer bushing connections, and renewable energy grids, this terminal’s dual-pressure crimp design and ISO 9001-certified manufacturing deliver 20-year durability under thermal cycling (-30°C~120°C) and mechanical stress.
>> Copper Crimp Lug To Din
Clear markings on barrel to indicate correct crimping location
In accordance with DIN 46235
Material:Cu≥99.9%
Surface:electro tin plated
Application:medium voltage
>> Product Specifications

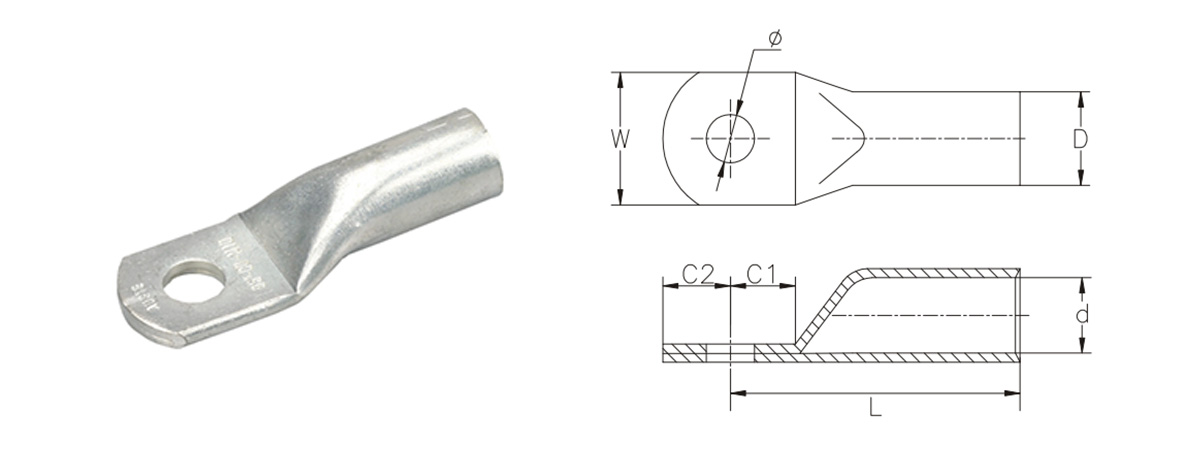

| Item No. | Φ±0.5 | D±0.5 | d±0.5 | L±2 | C1±0.5 | C2±0.5 | W±1.5 | Package (pcs) | Gross weight (kg) |
| AUS-10 | Φ6.5,φ8.5 | 6.5 | 5.0 | 29.0 | 8 | 8 | 9.5 | 6000 | 20.0 |
| AUS-16 | Φ6.5,φ8.5 | 8.0 | 6.0 | 36.5 | 10 | 10 | 11.5 | 2400 | 24.0 |
| AUS-25 | Φ6.5,φ8.5,φ10.5 | 10.5 | 8.0 | 36.5 | 12 | 12 | 15.3 | 1600 | 24.0 |
| AUS-35 | Φ8.5,φ10.5 | 12.5 | 9.5 | 41.5 | 13 | 13 | 18.0 | 800 | 23.0 |
| AUS-50 | Φ8.5,Φ10.5,Φ12.5 | 14.5 | 11.0 | 54.0 | 15 | 15 | 20.5 | 600 | 25.0 |
| AUS-70 | Φ8.5,Φ10.5,Φ12.5 | 16.5 | 13.0 | 57.0 | 15 | 15 | 24.0 | 360 | 22.5 |
| AUS-95 | φ10.5,φ12.5,φ14.5 | 19.0 | 14.5 | 63.0 | 15 | 15 | 27.5 | 240 | 20.0 |
| AUS-120 | φ10.5,φ12.5. Φ14.5 | 20.5 | 16.0 | 68.0 | 16 | 16 | 30.0 | 240 | 27.0 |
| AUS-150 | φ10.5,Φ12.5. φ14.5 | 23.5 | 18.0 | 79.0 | 16 | 16 | 34.0 | 120 | 20.0 |
| AUS-185 | φ10.5,φ12.5,φ14.5 | 26.0 | 20.5 | 82.0 | 17 | 17 | 38.0 | 120 | 22.5 |
| AUS-240 | Φ10.5,Φ14.5 | 28.0 | 22.5 | 90.0 | 21 | 21 | 41.0 | 120 | 32.0 |
| AUS-300 | φ16.5 | 30.0 | 23.5 | 99.0 | 21 | 21 | 43.0 | 90 | 29.0 |
