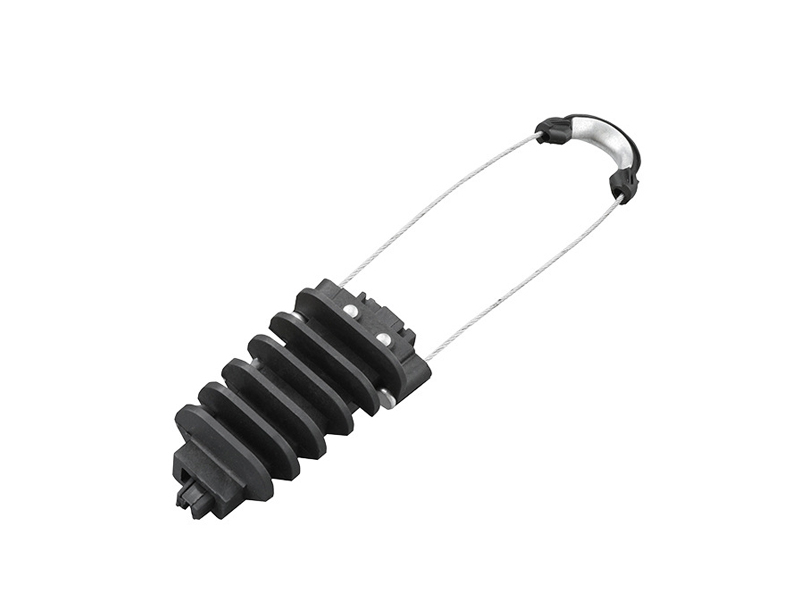

The PAG Single-Core Anchor Clamp provides UV-resistant cable fixation for terminal applications, crafted from advanced polymer material that retains structural integrity under prolonged UV exposure without degrading insulation. Engineered for tool-free installation, its snap-lock design ensures secure grip on conductors while complying with NFC33-042 standards. According to different models, the breaking load can reach 6-15KN.Ideal for solar farms and coastal substations, the clamp’s non-metallic construction eliminates corrosion risks and electromagnetic interference, maintaining stable performance in -40°C~120°C environments.
>> Single-core Anchor Clamp

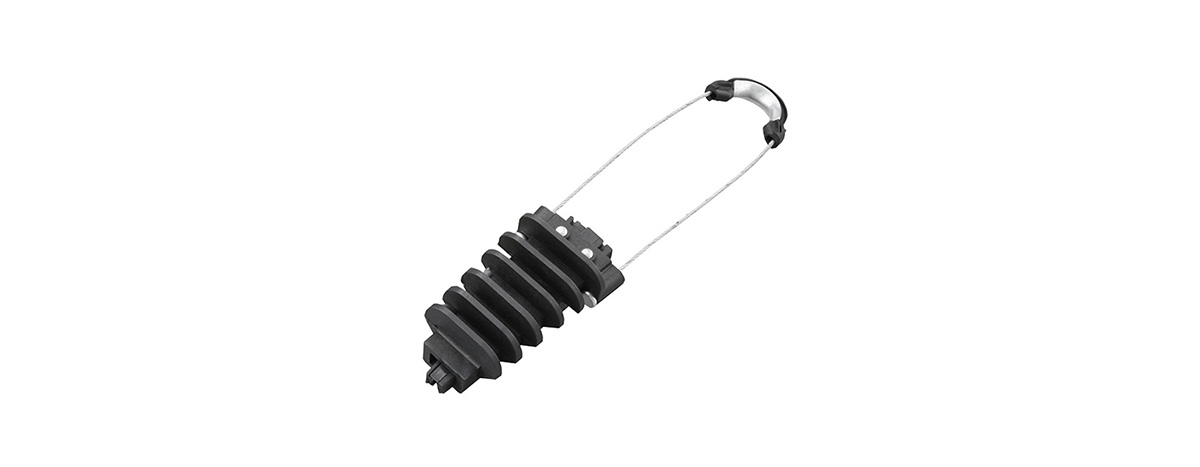

The PAG Anchor clamp is used to fix the line at the end bracket
The body of the clamp is made of special polymer material,no change when exposure toultravioletlight.The bodymaterials are UV-resistant.
Itcan fixed the wire firmly and doesn't effeot the insulation.
No tools are required.
Standard:NFC33-042
>> Product Specifications
| Item No. | Cross section (mm2) | Materia | Conductor (mm) | Breaking load | Package (pcs) | Gross weight (kg) |
| PAG-500 | 16-25 | Nylon, Steel | 6-9 | 6KN | 100 | 16 |
| PAG-1500 | 50-70 | Nylon, Steel | 9-12 | 10KN | 50 | 21 |
| PAG-2000A | 70-95 | Nylon, Steel | 10-13 | 15KN | 50 | 27 |
| PAG-2000B | 70-95 | Nylon, Steel | 10-13 | 15KN | 50 | 27 |
