IEC 61238-1 is the international standard for compression and mechanical connectors on power cables, and its core message fits in one sentence: a cable lug passes not by fitting the conductor, but by holding stable electrical resistance through hundreds of heat cycles and surviving short-circuit current without degrading. Dimensions are the easy part. Endurance is the test.
If you buy or specify lugs for IEC-market projects, the type-test report against this standard is the single most informative document a supplier can give you — far more than the catalogue. This article explains what the standard covers, what the key tests actually do to the samples, and the specific things to check when a report lands on your desk.
A crimped joint can look perfect, measure well on day one, and still fail in year three. The failure mechanisms — stress relaxation, differential thermal expansion, fretting at contact points, oxide growth — all need time and temperature cycling to develop. No visual inspection or one-off resistance measurement catches them.
IEC 61238-1 was built to compress that timeline into a laboratory sequence. Its philosophy: force the joint through the thermal and mechanical events of a service lifetime, measuring continuously, and reject any design whose resistance drifts. It is the reason a lug can credibly claim a multi-decade service life.
The standard applies to connectors for power cables with copper or aluminium conductors, and its current edition structures requirements by voltage class, with the familiar Class A designation covering connectors for networks where the full test regime applies — the class most utility and industrial buyers should ask for.
A controlled current-driven test rack monitors how connector resistance behaves through repeated heating and cooling.
Samples — and not one or two, but a prescribed batch of identical joints — are subjected to repeated current-driven heating cycles. Each cycle drives the joint to a defined temperature above normal operating level, holds it, then cools it back down. The full sequence runs to 1,000 cycles for the standard regime.
Throughout, the joint's resistance is measured and compared against a reference length of plain conductor. The pass criteria are the clever part:
Absolute level: the joint's resistance factor must stay within defined limits relative to the reference conductor.
Stability: the resistance must not trend upward across the cycling sequence. A joint that starts fine and drifts is a fail — because drift is exactly how field failures begin.
Scatter: the batch must behave consistently. One outlier sample can sink the batch, which pushes manufacturers toward process control rather than golden samples.
This is why heat-cycle data cannot be faked by cherry-picking: the standard's statistics are designed around the population, not the best specimen.
Class A connectors additionally face short-circuit testing: fault-level current pulses that take the conductor to its limit temperature within a second. The joint must carry the same brutal current density as the cable without mechanical distortion or a post-fault resistance jump.
The engineering consequence: barrel wall thickness and crimp compaction matter enormously. A joint with voids between strands concentrates current into the contact bridges that exist, and those bridges overheat first. In sectioned samples, the difference between a compact crimp and a voided one is visible to the naked eye — and the short-circuit test finds it electrically.
The crimped connection must hold a prescribed tension without the conductor slipping. In practice, a well-made compression joint on Class 2 conductor fails by conductor breakage rather than pull-out — the crimp is stronger than the cable. Where that is not true, the die-barrel match is usually wrong.
Knowing the boundaries prevents over-reading a certificate:
Installation quality. The type test validates the design with correct tooling. A certified lug crimped with the wrong die inherits none of the certification.
The bolted interface. IEC 61238-1 tests the crimped connection; the palm-to-busbar joint depends on your torque, washers and busbar surface.
Corrosion protection specifics. Salt-spray endurance (commonly run per ASTM B117) and plating specifications are complementary evidence, not part of the core sequence.
Insulated lug water-tightness. Pre-insulated lugs for aerial bundled cable systems answer to EN 50483-4 and related documents.
A serious supplier's test folder therefore contains more than one document — and that is a good sign, not bureaucratic noise.
A useful report review connects the resistance data to the tested conductor, crimp geometry and physical sample.
When a supplier sends a report, check these six items before anything else:
Who tested. An accredited third-party laboratory carries more weight than an in-house report. Both have value; know which you are reading.
Which sizes. Type approval attaches to tested size ranges. A report covering 16–95 mm² says nothing about the 400 mm² lug you are buying. Reputable ranges are tested across the family — for compression lugs that typically means representative sizes spanning 10 to 630 mm².

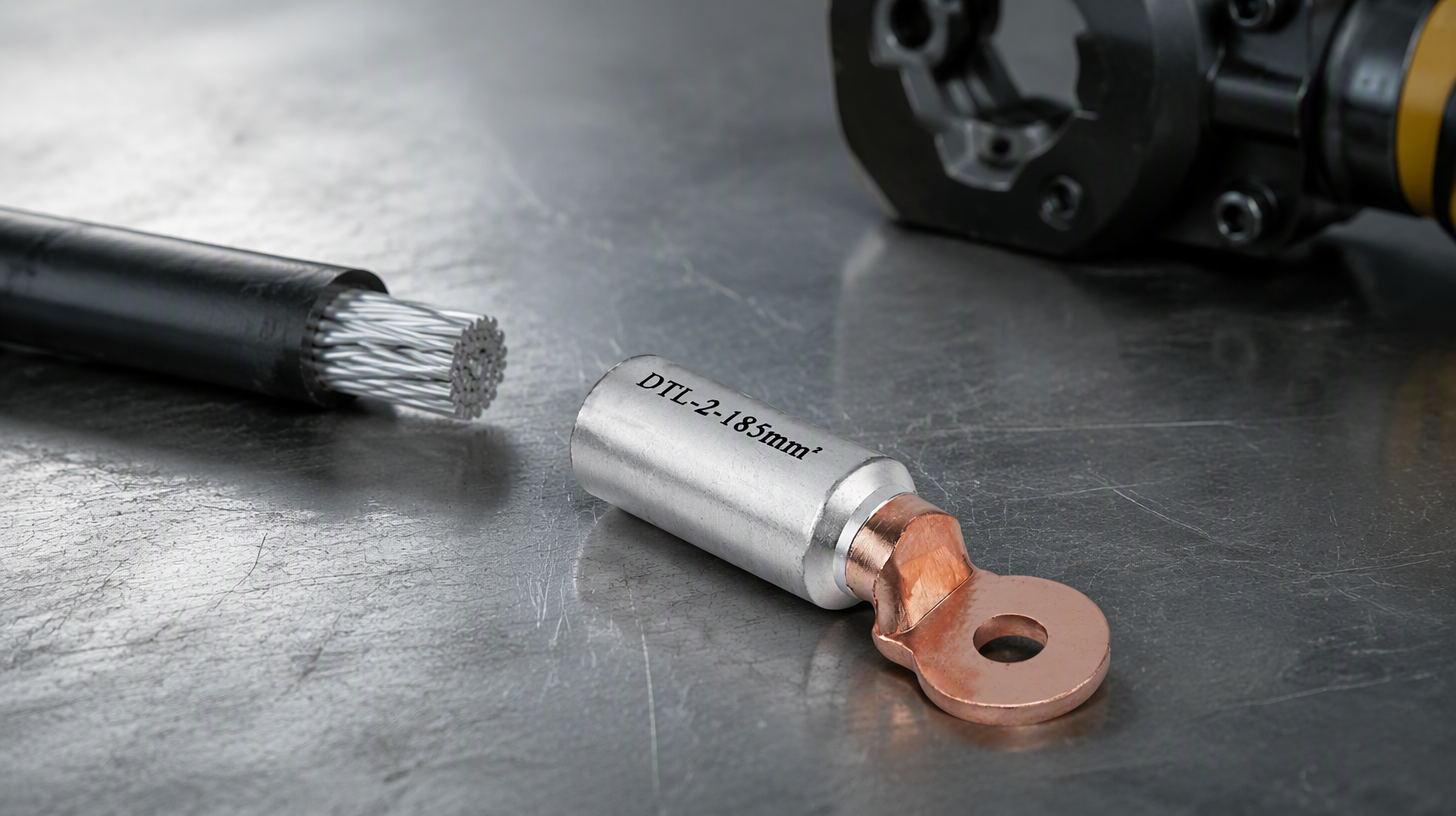

Which conductor. Copper lug tested on copper conductor, aluminium on aluminium, bimetallic on aluminium conductor with copper termination. A bimetallic lug's report should name the friction-welded transition explicitly.
Which class and cycle count. Class A, full heat-cycling sequence. Abbreviated regimes exist for other purposes; know what you are looking at.
The resistance-stability plots. Flat lines across 1,000 cycles are the signature of a sound design. Rising tails are disqualifying no matter what the summary page says.
Date and revision. The standard has editions; a recent report against the current edition reflects current production tooling, not a decade-old golden batch.
One practical tell from our side of the industry: suppliers who manufacture to the standard talk readily about their cycle data and will section a weld or a crimp for you. Suppliers who bought a certificate talk about the certificate.
Passing IEC 61238-1 across a 10–630 mm² range is not a one-off event; it constrains the whole production system:
Material grades stay fixed. T2/T3 electrolytic copper and 1070-grade aluminium are not marketing choices — substituting cheaper stock changes conductivity and crimp behaviour enough to threaten the type test's validity.
Tooling drawings freeze. Barrel bore, wall thickness and die pairing are part of the tested design. Silent "optimisation" of wall thickness to save copper invalidates the evidence.
Batch testing continues. Plating thickness checks (the working tin range is 5–10 µm), crimp sections, resistance sampling — the type test is the ceiling, routine tests keep production under it.
This is also why CE marking on connection hardware, which for export projects rides on this documentation chain, is only as credible as the type tests behind it.
Catalogue claims "IEC standard" without naming 61238-1 or a class
One report, ten years old, for three sizes, offered to cover a whole range
No mention of the conductor class (Class 2 vs Class 5) used in testing
Refusal to provide sectioned samples or plating measurements
Prices dramatically below the market for "identical certified" product — the material grades are usually where that margin came from
None of these is proof of a bad product. Each is a reason to ask one more question before the purchase order.
Tender files rarely cite one standard in isolation. A quick orientation to the neighbours:
IEC 60228 defines the conductor classes (1, 2, 5, 6) that lug barrels are bored for. A type test is run on a named conductor class; your cable schedule must match it for the evidence to transfer.
EN 50483-4 governs insulated fittings for LV aerial bundled cable — pre-insulated lugs answer to it, with climatic and wet-dielectric sequences the bare-lug standard does not contain.
ASTM B117 salt spray testing qualifies the plated finish against corrosive atmospheres. It complements, never replaces, the electrical endurance evidence.
CE marking is a conformity declaration for the European market that rides on the technical file — of which the IEC 61238-1 report is the load-bearing part for connection hardware.
The practical rule: match each claimed document to the thing it actually tests. A salt-spray certificate says nothing about heat-cycle stability, and vice versa.
Is IEC 61238-1 certification mandatory?
The standard itself is voluntary; contracts make it mandatory. Utility specifications, EPC contracts and national purchasing frameworks across IEC markets routinely require Class A evidence, at which point it is as binding as any law. For export manufacturers, holding current type tests is effectively a licence to bid.
Does a type test expire?
The standard does not stamp an expiry date, but the evidence attaches to a specific design, material specification and production process. Change any of those — a new barrel wall thickness, a different aluminium supplier grade — and the old report no longer describes the product. Recent reports are therefore a proxy for design stability, which is why buyers reasonably prefer them.
What is the difference between type tests and routine tests?
Type tests qualify the design once, on a statistically prescribed batch, through the full 1,000-cycle and short-circuit regime. Routine (batch) tests keep ongoing production inside the qualified envelope — dimensions, plating thickness, sample crimps and resistance checks per lot. A supplier should be able to show you both kinds of document; they answer different questions.
Can I run acceptance tests myself on delivered lugs?
Meaningfully, yes. Dimensional checks against the datasheet, plating thickness with a coating gauge, a sectioned sample crimp, and comparative micro-ohm measurements across bench-crimped joints are all within reach of a decent workshop. What you cannot replicate economically is the 1,000-cycle endurance sequence — which is exactly the part you delegate to the type-test report.
IEC 61238-1 turns "this lug fits" into "this joint design survives a service lifetime of thermal cycling and fault current, demonstrated on a statistically honest batch." Read reports for laboratory, size coverage, conductor type, class, cycle count and resistance stability — ten minutes that de-risks years of service.
MINGXU manufactures copper (SC, DT, AUS), aluminium (DL, AU) and friction-welded bimetallic (DTL, ACL, PBL) lugs from 10 to 630 mm², CE marked and type-tested to IEC 61238-1, with T2/T3 copper and 1070 aluminium mill certificates maintained per batch. If you want to practise the ten-minute report review on a real document, ask us for the test file for any series you are evaluating — we send the full report, not the summary page.
