CAPG
Mingxu

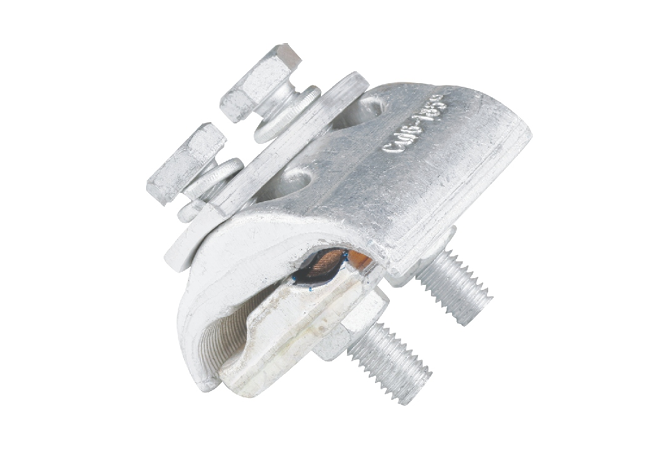

The CAPG Parallel Groove Clamp is a high-performance electrical connector engineered for reliable connections between aluminum conductors and copper conductors in overhead power distribution systems. Built with advanced forging technology, this clamp delivers exceptional mechanical strength and long-term durability to withstand harsh environmental conditions.
Dual Conductor Compatibility: Specifically designed to connect aluminum and copper conductors, ensuring stable electrical performance in mixed-material applications.
Advanced Forging Construction: Precision forging enhances structural integrity, providing superior resistance to mechanical stress, vibration, and corrosion.

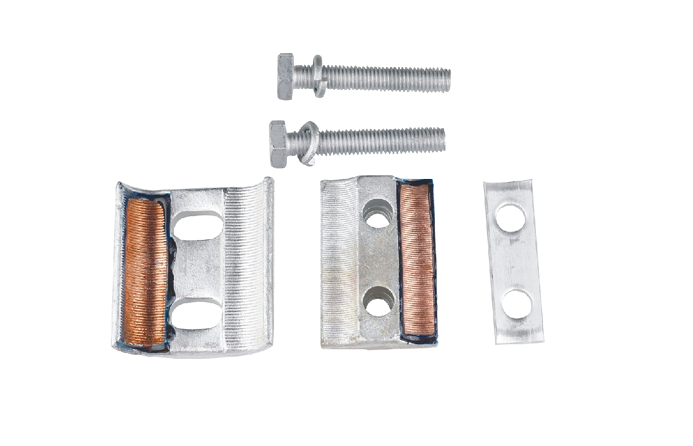

Adaptive Cable Sizing: Specialized screw holes and an arc-shaped body allow the clamp to adjust to different cable sizes on each side, offering flexible installation for various conductor dimensions.
Material Options for Bolts & Nuts: Bolts and nuts are available in hot-dip galvanized steel or stainless steel, enabling customization to meet specific corrosion resistance and application requirements.
Uniform Pressure Distribution: Equipped with a pressure pad to ensure consistent pressure along the entire clamp, preventing loose connections and maintaining optimal electrical contact.
Technical Specifications
| Model No. | Size (mm²) | Sort | Package (pcs) | Weight (kg) |
|---|---|---|---|---|
| CAPG-A1 | Cu 6–50, Al 16–70 | Single bolt | 240 | 16 |
| CAPG-A2 | Cu 10–95, Al 25–150 | Single bolt | 300 | 25 |
| CAPG-B1 | Cu 6–50, Al 16–70 | Double bolt | 200 | 23.5 |
| CAPG-B2 | Cu 10–95, Al 25–150 | Double bolt | 240 | 34.5 |
| CAPG-B3 | Cu 25–185, Al 35–240 | Double bolt | 120 | 35.5 |
| CAPG-C1 | Cu 6–50, Al 16–70 | Tri-bolt | 150 | 25.5 |
| CAPG-C2 | Cu 10–95, Al 25–150 | Tri-bolt | 150 | 32 |
| CAPG-C3 | Cu 25–185, Al 35–240 | Tri-bolt | 64 | 27 |
| CAPG-C4 | Cu 35–240, Al 35–300 | Tri-bolt | 48 | 27.5 |
