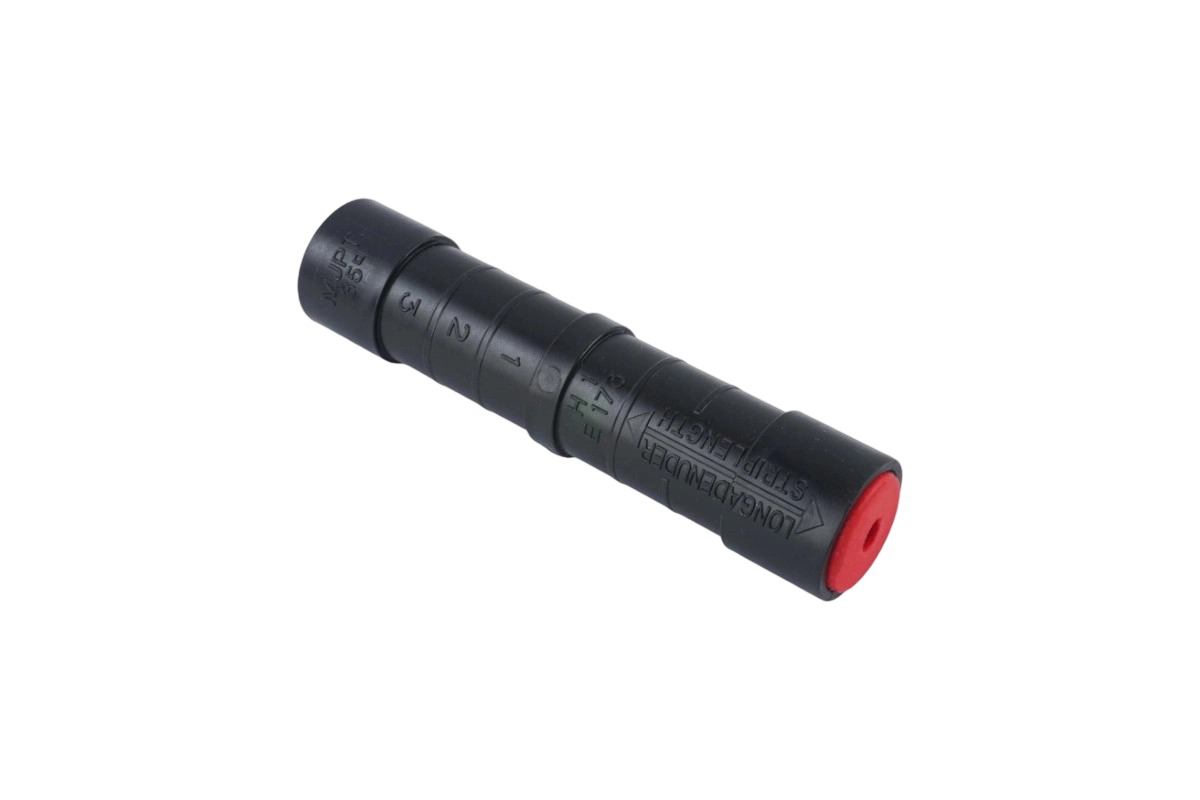

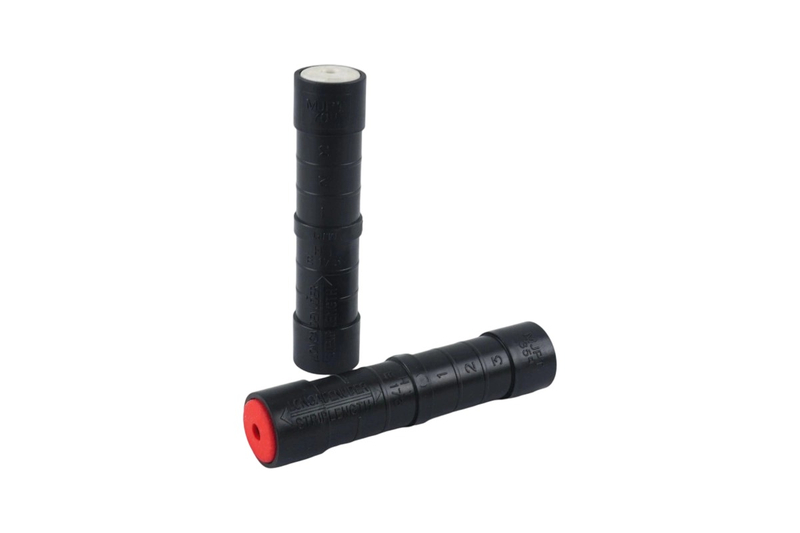

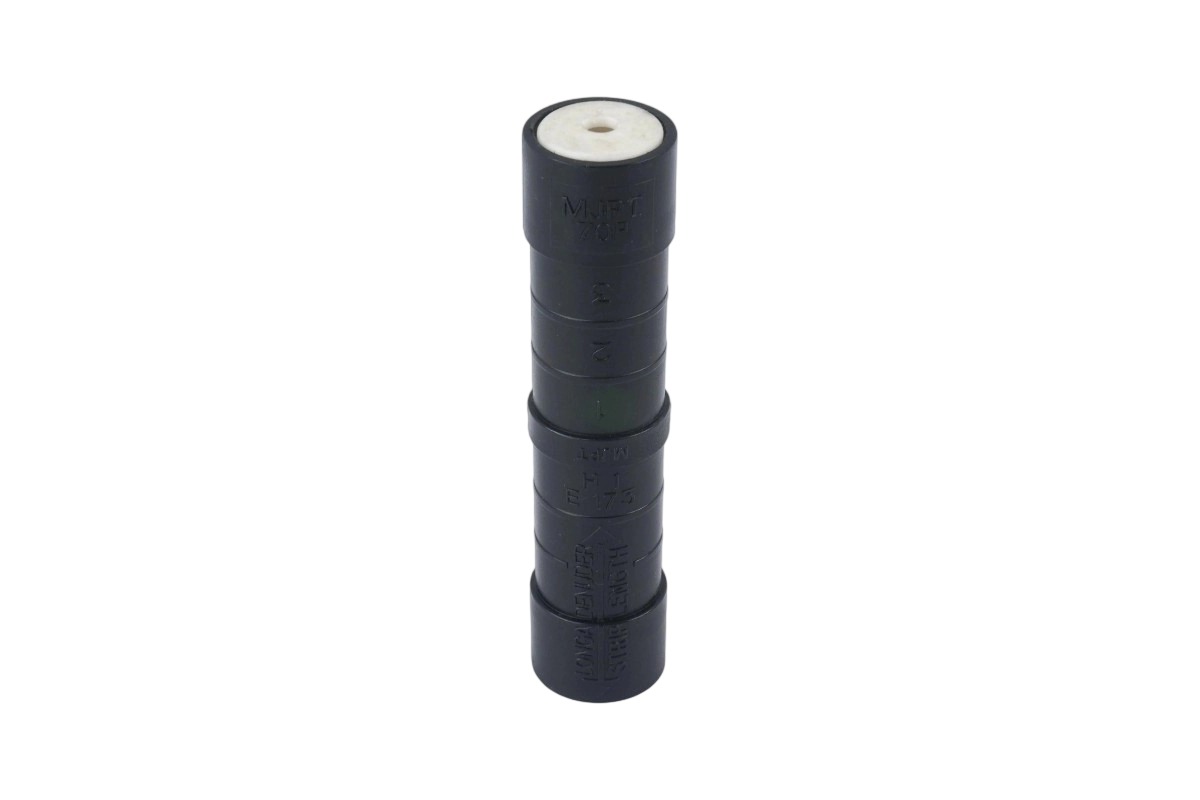

NULG pre insulated connectors are designed to be converted into service cables.
The cross-section of the conductor can be easily identified by the color code of the ring.
The elastic ring and pre filled lubricating grease give it super strong waterproof performance.
The insulation tube is made of weather resistant and UV resistant polymer.
The water tightness experiment is conducted at 6kV underwater for 1 minute.
Standards: EN 50483-4，NFC 33-021.
>> Pre Insulated Aluminum Connecting Pipe
The NULG pre-insulatedconnector is designedfor serviceand lighting cables.
Cross-section of conductorcan be easilyidentified by thecolor code ofrings
Elastomeric ring and pre-illedgrease enable superwaterproofperformance
Watertightness testcarried out at6kV for 1minute under water
Insulation tube ismade of weatherand UV resistantpolymer
Standard: EN 50483-4,NFC 33-021

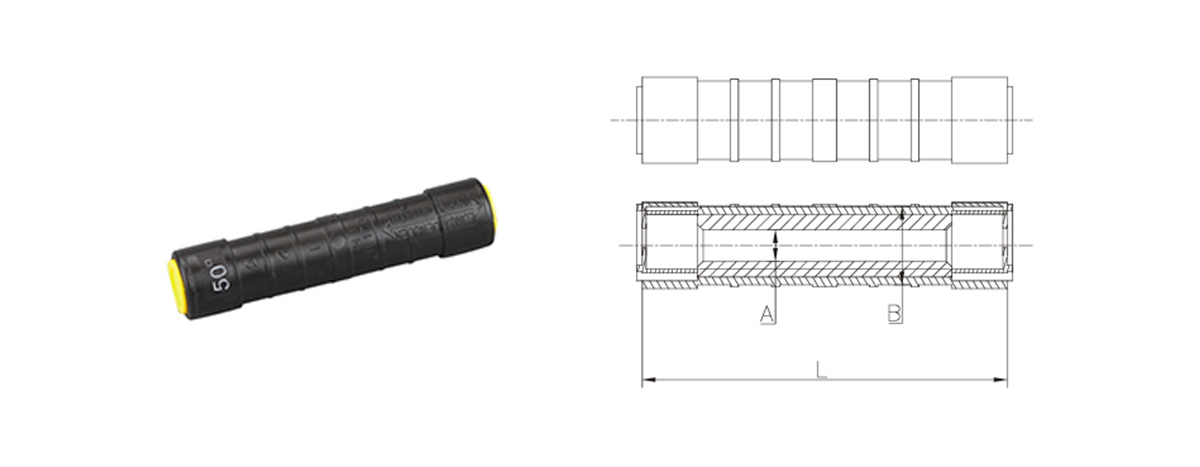

>> Product Specifications
| Item No. | Cabie Size(mm²) A | Plastic sleeve Diameter(mm) B | Length L | Package (pcs) | Gross weight (kg) |
| NULG 16/16 | 16 | 16 | 70.5 | 200 | 5.5 |
| NULG25/25 | 25 | 16 | 70.5 | 200 | 7.5 |
| NULG35/35 | 35 | 20 | 98.5 | 200 | 12 |
| NULG 50/50 | 50 | 20 | 98.5 | 200 | 12 |
| NULG 70/70 | 70 | 20 | 98.5 | 200 | 10 |
| NULG 95/95 | 95 | 20 | 98.5 | 200 | 10 |
NULG pre insulated connectors are designed to be converted into service cables.
The cross-section of the conductor can be easily identified by the color code of the ring.
The elastic ring and pre filled lubricating grease give it super strong waterproof performance.
The insulation tube is made of weather resistant and UV resistant polymer.
The water tightness experiment is conducted at 6kV underwater for 1 minute.
Standards: EN 50483-4，NFC 33-021.
>> Pre Insulated Aluminum Connecting Pipe
The NULG pre-insulatedconnector is designedfor serviceand lighting cables.
Cross-section of conductorcan be easilyidentified by thecolor code ofrings
Elastomeric ring and pre-illedgrease enable superwaterproofperformance
Watertightness testcarried out at6kV for 1minute under water
Insulation tube ismade of weatherand UV resistantpolymer
Standard: EN 50483-4,NFC 33-021
>> Product Specifications
| Item No. | Cabie Size(mm²) A | Plastic sleeve Diameter(mm) B | Length L | Package (pcs) | Gross weight (kg) |
| NULG 16/16 | 16 | 16 | 70.5 | 200 | 5.5 |
| NULG25/25 | 25 | 16 | 70.5 | 200 | 7.5 |
| NULG35/35 | 35 | 20 | 98.5 | 200 | 12 |
| NULG 50/50 | 50 | 20 | 98.5 | 200 | 12 |
| NULG 70/70 | 70 | 20 | 98.5 | 200 | 10 |
| NULG 95/95 | 95 | 20 | 98.5 | 200 | 10 |
