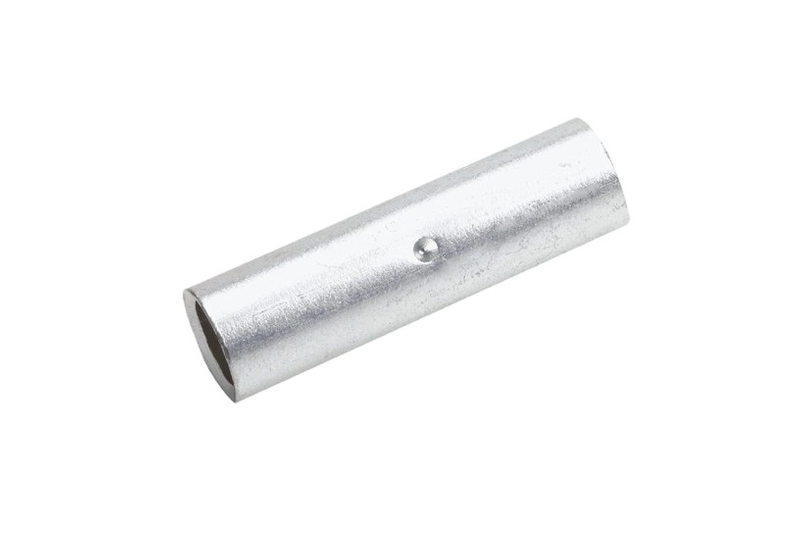

DGT copper connector tubes feature a fully open-through design with solid central barriers, optimized for oil-filled cables and precise alignment of marked stranded conductors. Crafted from high-purity T2 copper with a tin-plated surface, they ensure corrosion resistance and low-voltage stability in demanding environments like industrial grids and renewable energy systems. The integrated ear-marked zones enable quick cable identification, while the seamless crimping design enhances installation accuracy and durability.These pipes have undergone rigorous oil resistance and mechanical strength testing, providing reliable performance in power transmission and cable management.
>> DGT Copper Crimp Connecting Pipe
Suitable for strandedconductors with but marks for precisecabe insertion
For use witholl flled cable;Solid centre barrlers
Cable area clearidentified on thelug
Material: Cu≥99.9%
Surface: tin plated
Application: low voltage
>> Product Specifications

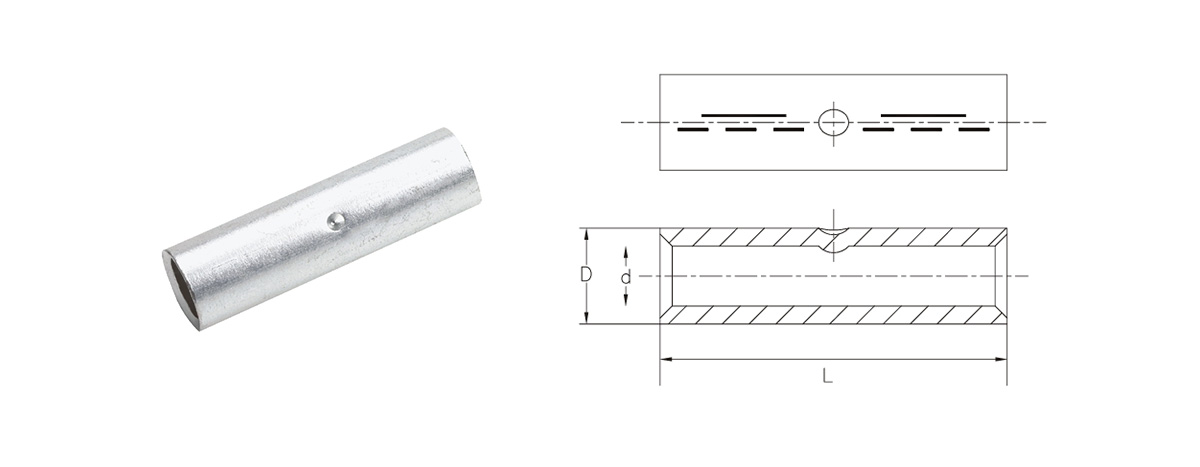

| Item No. | D±0.5 | d±0.3 | L±2 | Package (pcs) | Gross weight (kg) |
| DGT-10 | 6.0 | 4.5 | 30 | 6400 | 21.0 |
| DGT-16 | 8.5 | 5.5 | 50 | 4800 | 23.0 |
| DGT-25 | 10.0 | 7.0 | 50 | 3200 | 24.0 |
| DGT-35 | 12.5 | 8.2 | 50 | 2400 | 30.5 |
| DGT-50 | 14.5 | 10.0 | 56 | 1200 | 24.0 |
| DGT-70 | 16.5 | 11.5 | 56 | 800 | 22.8 |
| DGT-95 | 19.0 | 13.5 | 70 | 600 | 25.0 |
| DGT-120 | 21.0 | 15.5 | 70 | 400 | 24.0 |
| DGT-150 | 23.5 | 17.0 | 80 | 300 | 23.0 |
| DGT-185 | 25.5 | 19.0 | 85 | 240 | 22.0 |
| DGT-240 | 29.0 | 21.5 | 90 | 180 | 22.5 |
