TJ Copper Bolt Connectors are designed for seamless connection and transmission of various conductors in power grids. These connectors are available with hexagonal heads or can be customized according to specific drawings or samples. Made from high-quality copper (Cu ≥ 99.9%), they ensure excellent electrical conductivity and long-lasting performance. Ideal for use in industrial and electrical systems, TJ Copper Bolt Connectors offer reliable, secure connections for enhanced system efficiency and durability.
>> Copper Bolt Connector
Suitable for the sequence and transportatlon of all kinds ofconductorsin electric network.
Hexagonal type heador customed as per drawings or sample
Material: CU>99.9%
>> Product Specifications

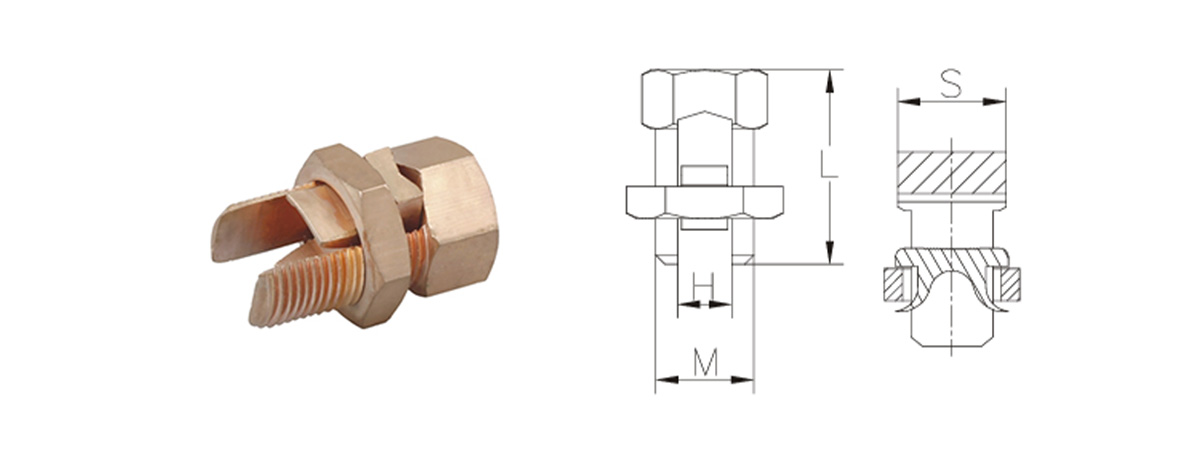

| Item No. | L | M | H | S | Package (pcs) | Gross weight (kg) |
| TJ-16 | 27 | M11×1.25 | 5 | 16 | 200 | 25.0 |
| TA-25 | 27 | M14×1.5 | 7 | 18 | 200 | 37.5 |
| TJ-35 | 35 | M18×1.5 | 8 | 22 | 600 | 34.0 |
| TJ-50-70 | 42 | M22×2.5 | 12 | 24 | 360 | 34.0 |
| TW-90-120 | 45 | M24x2.5 | 14 | 26 | 240 | 38.0 |
| TJ-150-185 | 60 | M28×2.5 | 17 | 30 | 120 | 39.0 |
| TJ-200-240 | 72 | M30x2.5 | 20 | 32 | 120 | 41.5 |
